Dell PowerConnect 8024 User Guide

106 Configuring System Information
Versions
Use the Versions page to view information about the software versions currently running.
To display the Versions page, click System
→ General → Versions in the tree view.

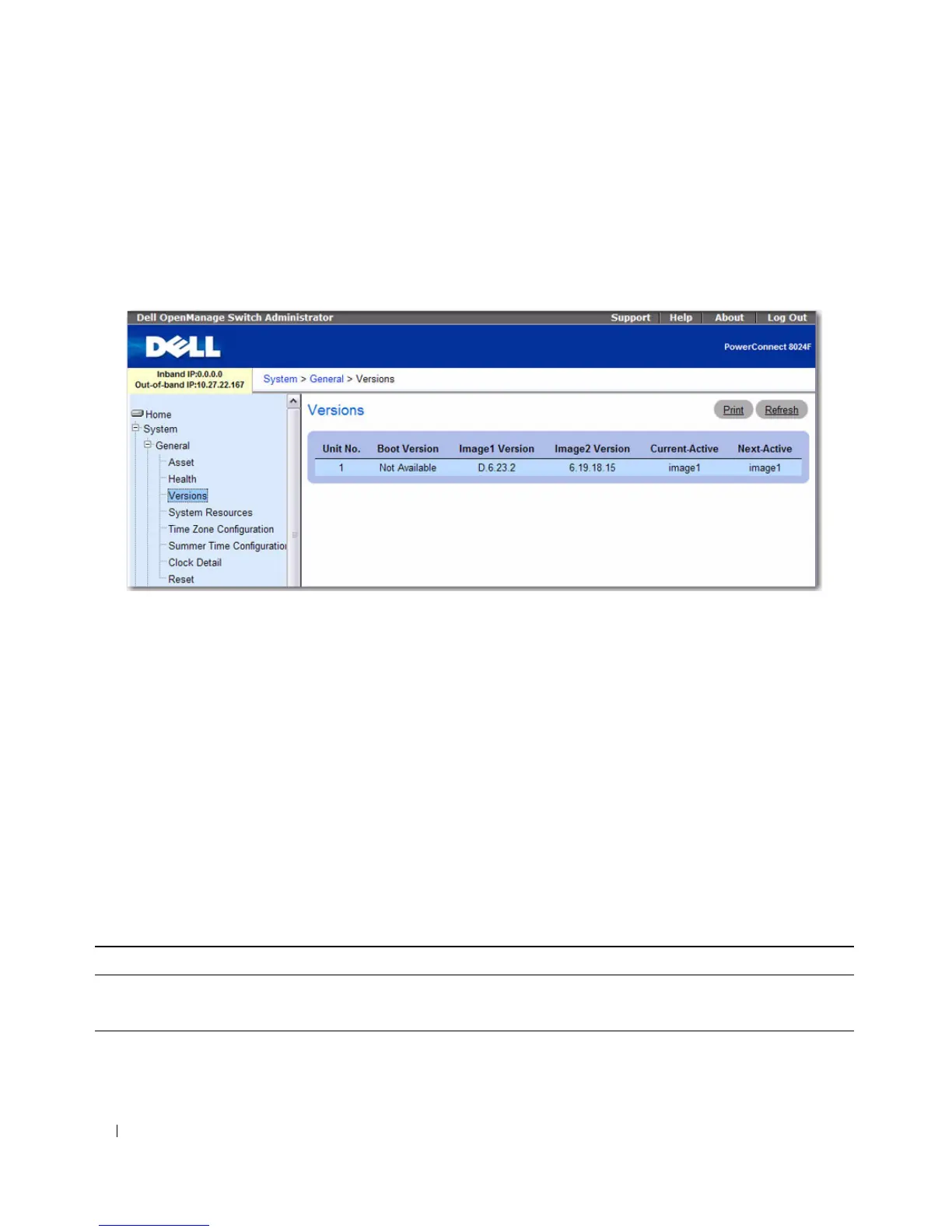

Figure 6-3. Versions
The Versions page contains the following fields:
• Unit No. — Displays the unit’s number in the stack.
•
Boot Version — Displays the version of the boot code.
•
Image1 Version — Displays the version number of one of the two available software images.
•
Image2 Version — Displays the version number of the other of the two available software images.
•
Current-Active — Displays the currently active software image.
•
Next-Active — Displays the software image which will be loaded the next time the switch is rebooted.
Displaying Device Versions Using CLI Commands
For information about the CLI commands that perform this function, see the System Management
Commands
chapter in the CLI Reference Guide : The following table summarizes the equivalent CLI
commands you use to display device versions information.
Table 6-3. Device Versions Commands
CLI Command Description
show boot-version Displays the boot image version details.
show version Displays the system version.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
