Dell PowerConnect 8024 User Guide

Viewing Statistics and Remote Monitoring 467
RMON Statistics
Use the RMON Statistics page to display details about switch use such as packet processing statistics
and errors that have occurred on the switch.
To display the page, click Statistics/RMON
→ RMON → Statistics in the tree view.

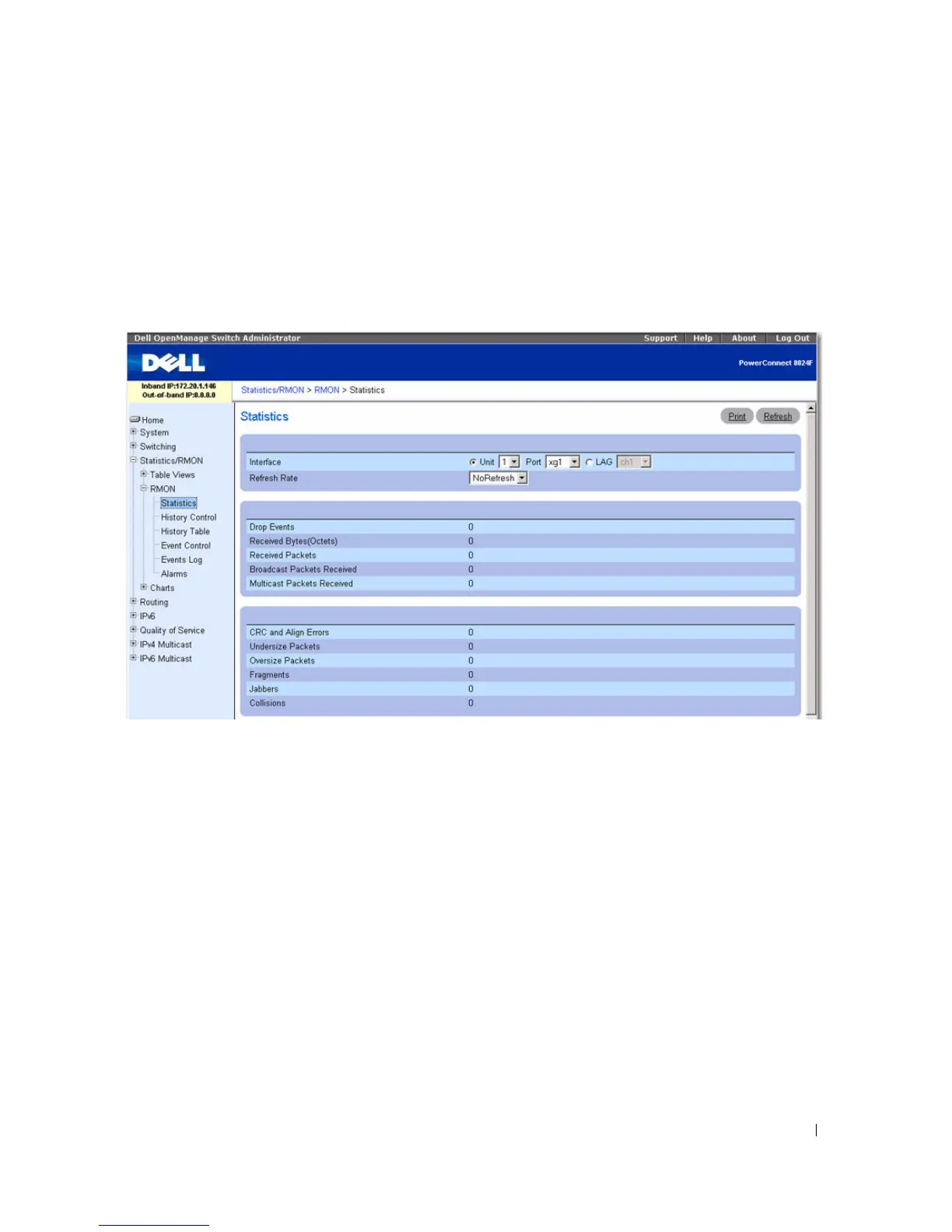

Figure 8-7. RMON Statistics
The RMON Statistics page contains the following fields:
• Interface — Specifies whether statistics are shown for a Unit or a LAG as well as which Unit/LAG is
displayed.
•
Refresh Rate — Specifies amount of time that passes before statistics are refreshed. The possible field
values are No Refresh, 15, 30, and 60 seconds. Default is No Refresh.
•
Drop Events — Displays number of dropped events that have occurred on the interface since the
switch was last refreshed.
•
Received Bytes (Octets) — Displays number of octets received on the interface since the switch was
last refreshed. This number includes bad packets and FCS octets, but excludes framing bits.
•
Received Packets — Displays number of packets received on the interface, including bad packets,
multicast and broadcast packets, since the switch was last refreshed.
•
Broadcast Packets Received — Displays number of good broadcast packets received on the interface
since the switch was last refreshed. This number does not include multicast packets.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
