Policy Configuration
Use the Diffserv Policy Configuration page to associate a collection of classes with one or more policy
statements.
To display the
page, click Quality of Service → Differentiated Services → Policy Configuration in the
tree view.

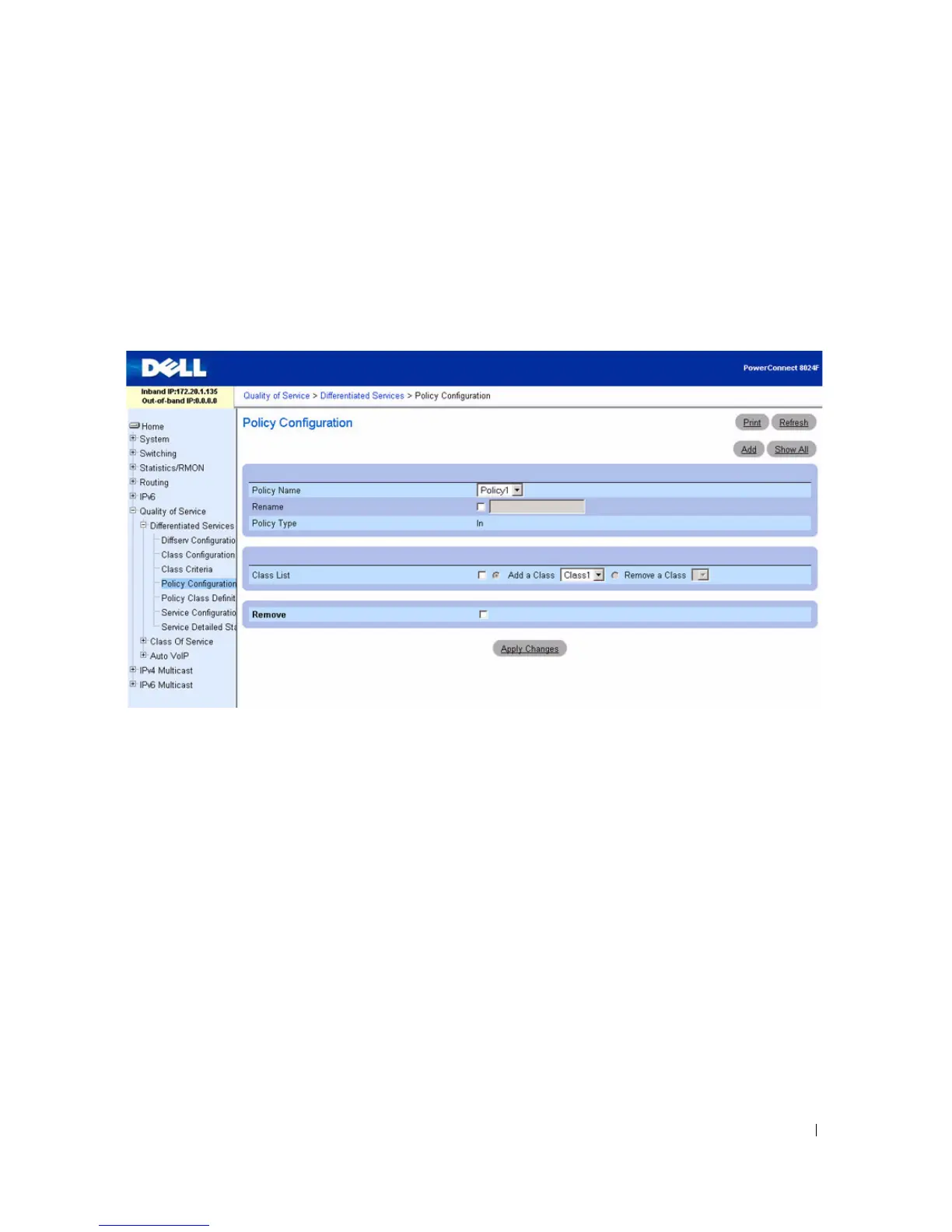

Figure 11-6. Diffserv Policy Configuration
The Diffserv Policy Configuration page contains the following fields:
• Policy Name — Selects the policy name to be associated with the class(es).
•
Rename Policy — Renames a policy when box is checked, a new name is entered, and Apply Changes
is clicked.
•
Class List — Configures class association for the policy.
–
Add a Class — Associates the class selected in the drop-down menu to a policy.
–
Remove a Class — Removes the selected class from the policy.
•
Remove — Deletes the selected policy name from the device.
Associating a Class to a Policy or Removing the Association
1. Open the Diffserv Policy Configuration page.
2. Select the Policy Name to associate with the class.
3. In Class List field , select the check box, then click the Add a Class or Remove a Class radio button
and select the
class from the related drop down menu
