Dell PowerConnect 8024 User Guide

Configuring IP Multicast 711
Multicast Static MRoute Summary
Use the Multicast Static Routes Summary page to display static routes and their configurations.
To display the page, click IPv4 Multicast
→ Multicast → Static MRoute Summary in the tree view.

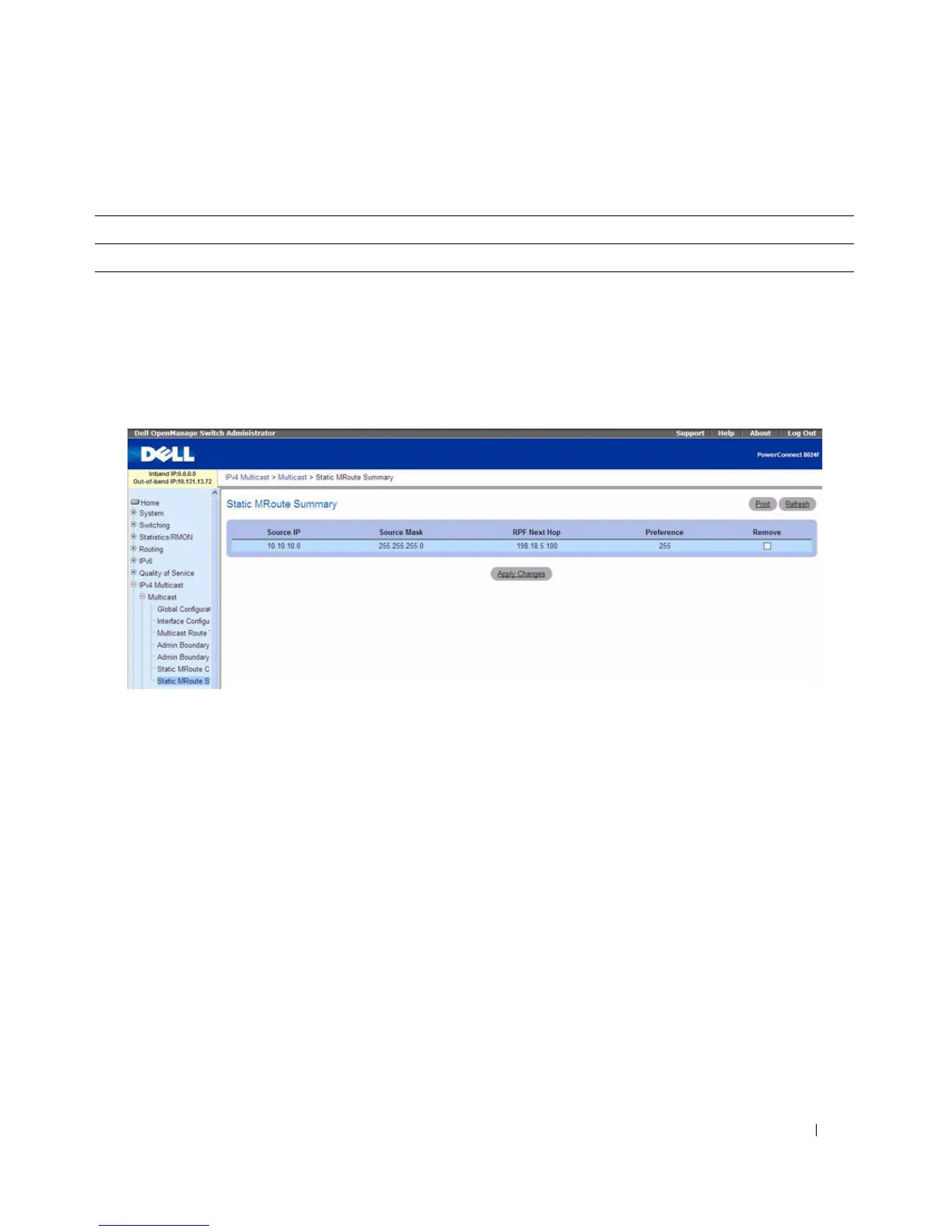

Figure 12-7. Multicast Static Routes Summary
The Multicast Static MRoute Summary page displays the following fields:
• Source IP — The IP Address that identifies the multicast packet source for this route.
•
Source Mask — The subnet mask applied to the Source IP address.
•
RPF Address — The IP address of the RPF neighbor.
•
Preference — Enter the preference with which the static mroute to be considered against other
matching static mroute entry for a given source. The values should range from 1 to 255.
Displaying the Static Routes Summary Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• Multicast Commands
The following table summarizes the equivalent CLI commands for this feature.
Table 12-6. Multicast Static Route Configuration Commands
CLI Command Description
ip mroute Creates a static multicast route for a source range.
