Dell PowerConnect 8024 User Guide

Hardware Description 55
Power Supplies
Each PowerConnect 8024/8024F switch has two power supplies for redundant or loadsharing operation.
Each power supply can support 300W.
Ventilation System
The PowerConnect 8024/8024F has three removable FANs (see PowerConnect 8024 Rear Panel), four
Thermal sensors, and a FAN Speed Controller which can be used to control FAN speeds. You can verify
operation by observing the LEDs. See "PowerConnect 8024/8024F LED Definitions" for information on
the LEDs.
PowerConnect 8024/8024F LED Definitions
The rear panel contains light emitting diodes (LEDs) that indicate the status of system diagnostics,
switch temperature and each power supply.
100/1000/10000 Base-T Port LEDs
Each 100/1000/10000 Base-T port has two LEDs. The following figure illustrates the 100/1000/10000
Base-T port LEDs.

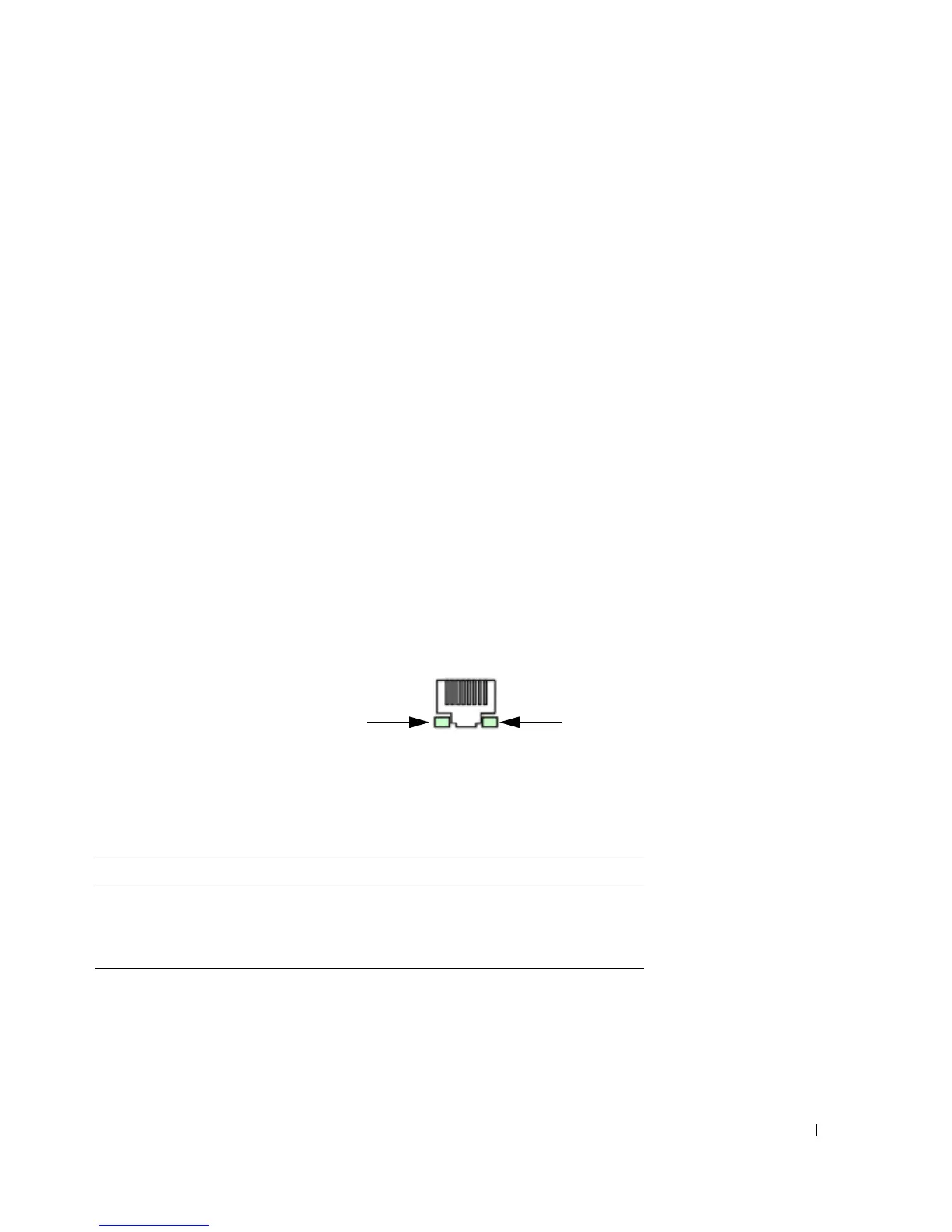

Figure 4-4. 100/1000/10000 Base-T Port LEDs
The following table contains 100/1000/10000 Base-T port LED definitions.
Table 4-2. 100/1000/10000 Base-T Port Definitions
LED Color Definition
Speed Green The port is operating at 10 Gbps.
Amber The port is operating at 100/1000 Mbps.
Link Blinking Activity.
Speed Link

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
