Dell PowerConnect 8024 User Guide

Configuring Routing 581
VRRP Virtual Router Statistics
Use the Virtual Router Statistics page to display statistics for a specified virtual router.
To display the page, click Routing
→ VRRP → Virtual Router Statistics in the tree view.

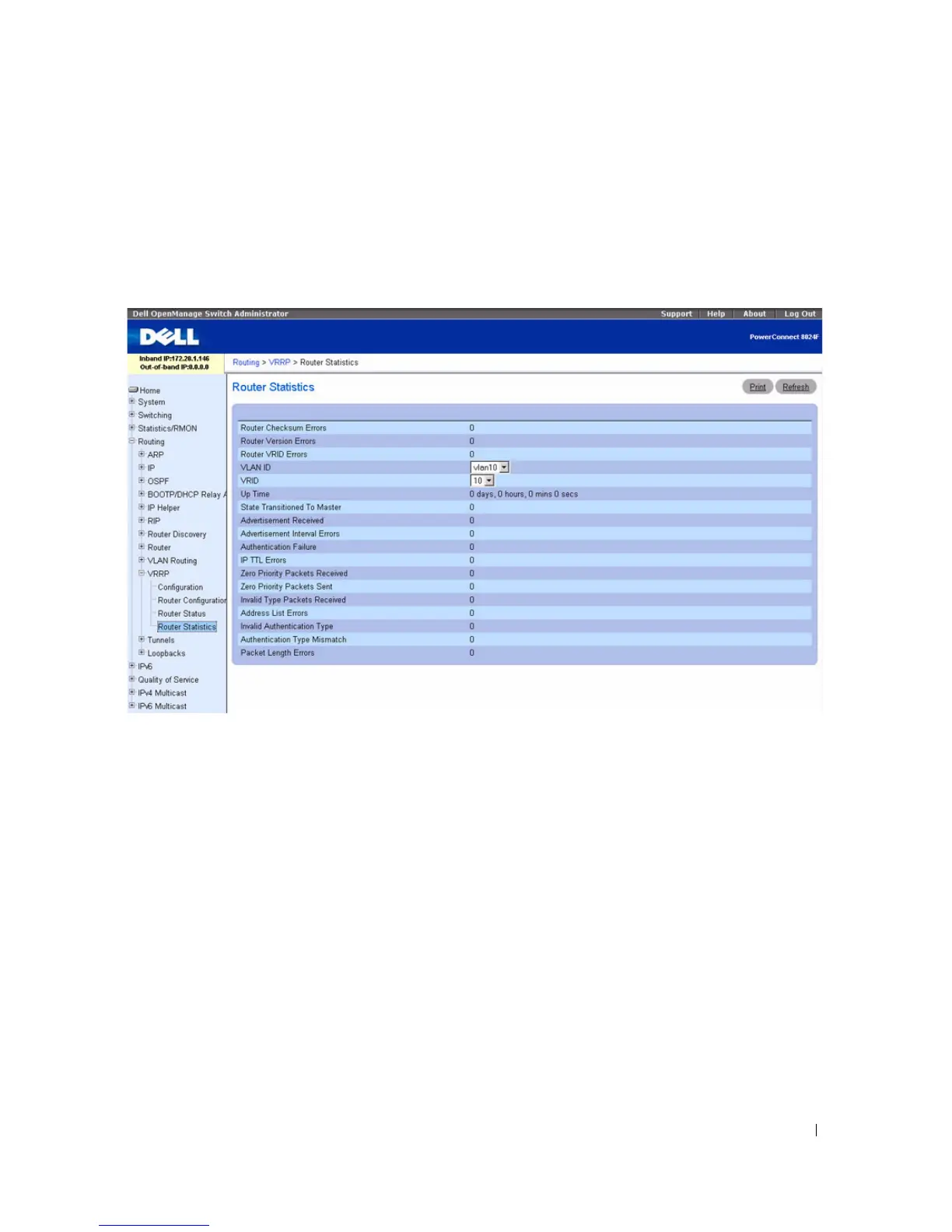

Figure 9-50. Virtual Router Statistics
The Virtual Router Statistics page contains the fields listed below. Many of the fields display only when
there is a valid VRRP configuration.
• Router Checksum Errors — The total number of VRRP packets received with an invalid VRRP
checksum value.
•
Router Version Errors — The total number of VRRP packets received with an unknown or
unsupported version number.
•
Router VRID Errors — The total number of VRRP packets received with an invalid VRID for this
virtual router.
•
VRID and VLAN ID — Select the existing Virtual Router, listed by interface number and VRID, for
which you want to display statistical information.
•
VRID — the VRID for the selected Virtual Router.
•
VLAN ID — The interface for the selected Virtual Router.
•
Up Time — The time, in days, hours, minutes and seconds, that has elapsed since the virtual router
transitioned to the initialized state.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
