Dell PowerConnect 8024 User Guide

706 Configuring IP Multicast
• Multicast Commands
The following table summarizes the equivalent CLI commands for this feature.
Multicast Route Table
Use the Multicast Route Table page is used to display MRoute data.
To display the page, click IPv4 Multicast
→ Multicast → Multicast Route Table or IPv6 Multicast →
Multicast
→ Multicast Route Table.

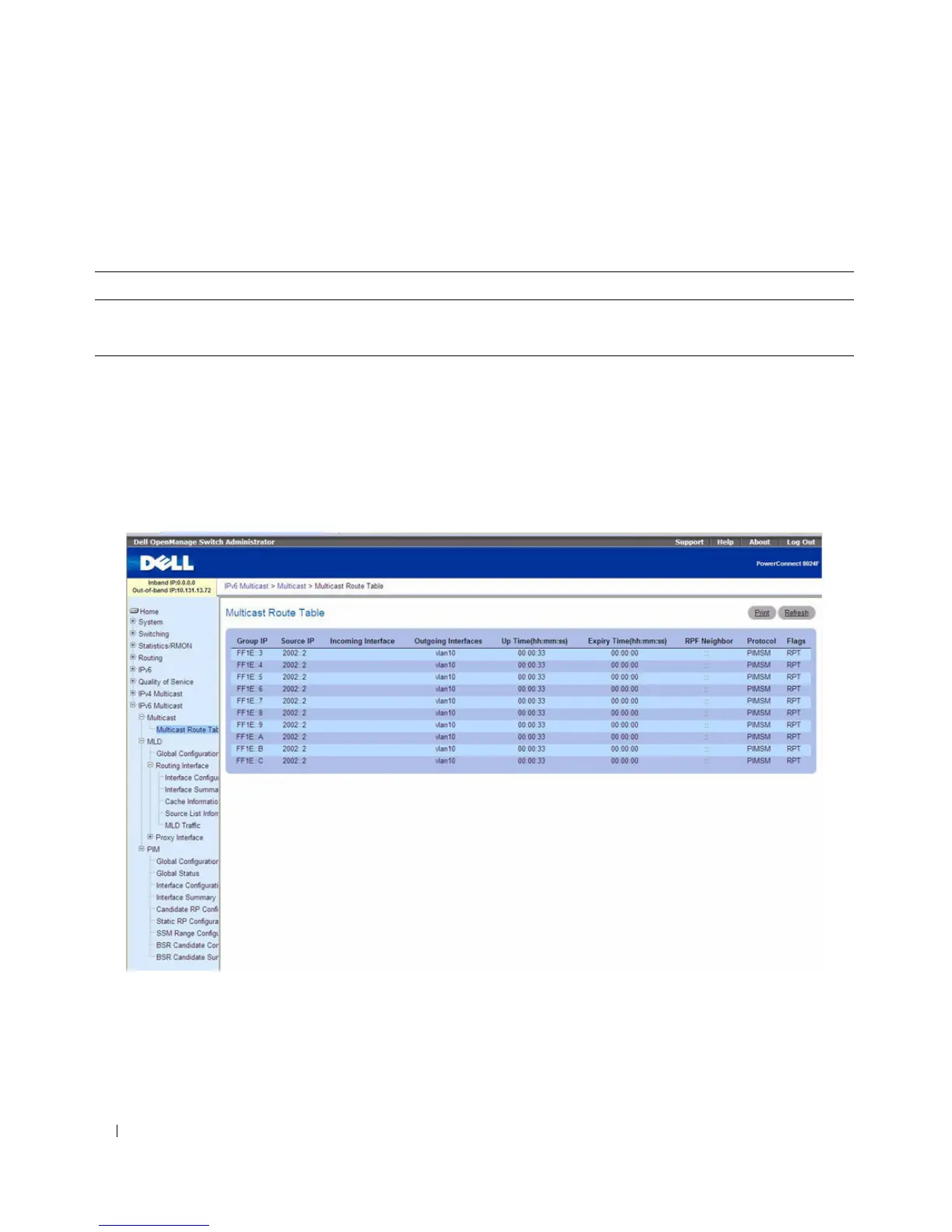

Figure 12-3. Multicast Route Table
The Multicast Route Table page contains the following fields:
• Group IP — The destination group IP address.
•
Source IP — The IP address of the multicast packet source that, combined with the Group IP,
identifies an multicast route table entry.
Table 12-2. Multicast Interface Configuration Commands
CLI Command Description
ip multicast ttl-threshold Applies a
ttlvalue to a routing interface.
show ip mcast interface Displays the multicast information for the specified interface.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
