Dell PowerConnect 8024 User Guide

504 Configuring Routing
Area Configuration
The OSPF Area Configuration page lets you create a Stub area configuration and NSSA once you’ve
enabled OSPF on an interface through Routing
→ OSPF → Interface Configuration. At least one router
must have OSPF enabled for this web page to display.
To display the page, click Routing
→ OSPF → Area Configuration in the tree view. If a Stub Area has
been created, the fields in the Stub Area Information are available. If a NSSA has been created, the fields
in the NSSA Area Information are available.

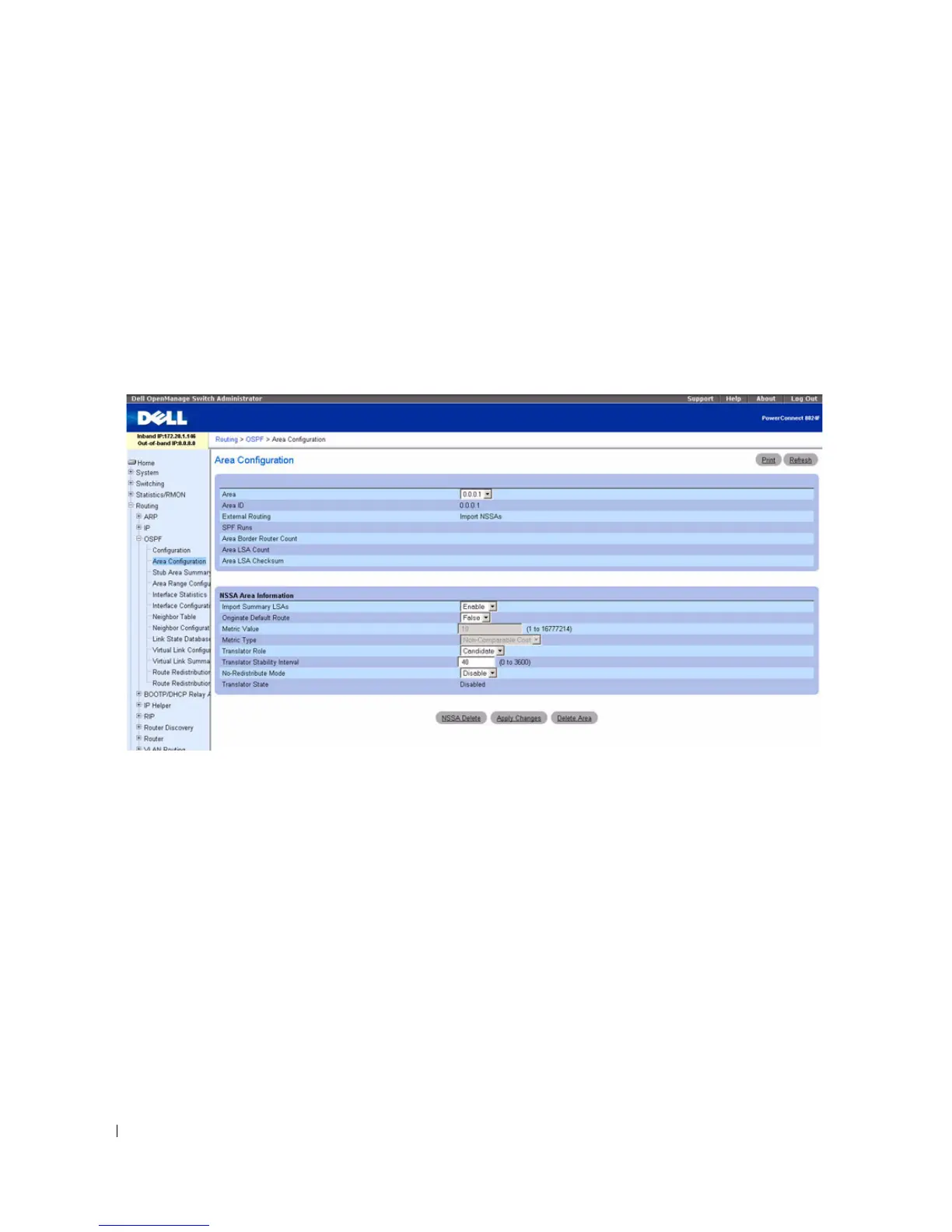

Figure 9-7. OSPF Area Configuration
The OSPF Area Configuration page displays the following fields:
• Area — Select the area to be displayed from the drop-down menu. When an area is selected, fields in
the Stub Area Information are displayed.
•
Area ID — The OSPF area. An Area ID is a 32-bit integer in dotted decimal format that uniquely
identifies the area to which a router interface connects.
•
External Routing — A definition of the router's capabilities for the area, including whether or not AS-
external-LSAs are flooded into/throughout the area. If the area is a stub area, then these are the
possible options for which you may configure the external routing capability, otherwise the only option
is Import External LSAs.
•
SPF Runs — The number of times that the intra-area route table has been calculated using this area's
link-state database. This is typically done using Dijkstra's algorithm.
•
Area Border Router Count — The total number of area border routers reachable within this area. This
is initially zero, and is calculated in each SPF Pass.
