Configuring Switching Information 359
2.
Click
Show All
.
The
Protocol Group Table
displays.

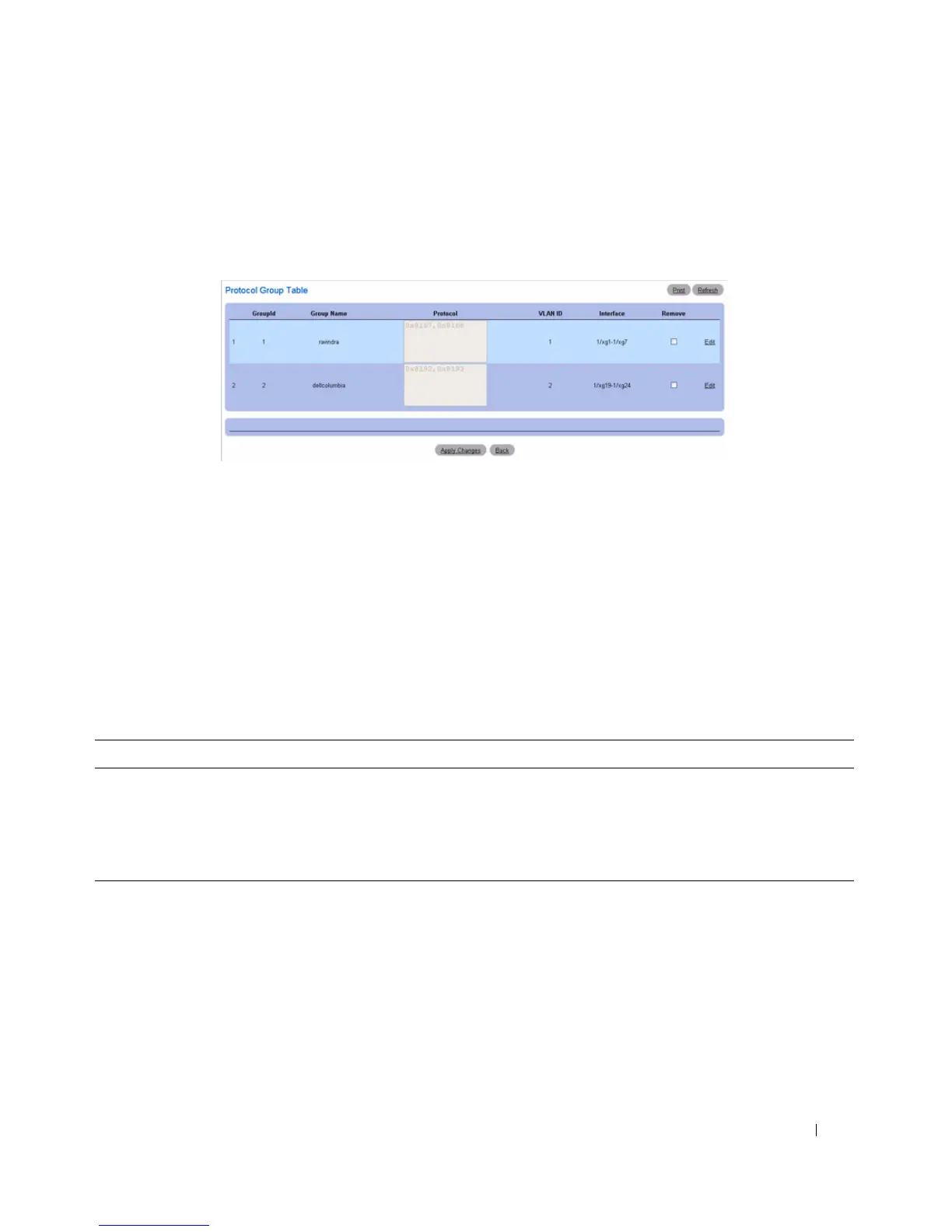

Figure 7-64. Protocol Group Table
3.
Check
Remove
for the protocol groups you want to remove.
4.
Click
Apply Changes
.
The protocol is removed, and the device is updated.
Configuring VLAN Protocol Groups Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide
:
• VLAN Commands
The following table summarizes the equivalent CLI commands for this feature.
GVRP Parameters
The GARP VLAN Registration Protocol provides a mechanism that allows networking switches to
dynamically register (and de-register) VLAN membership information with the MAC networking
switches attached to the same segment, and for that information to be disseminated across all
networking switches in the bridged LAN that support GVRP.
The operation of GVRP relies upon the services provided by the Generic Attribute Registration Protocol
(GARP). GVRP can create up to 1024 VLANs.
Table 7-31. VLAN Protocol Group Commands
CLI Command Description
vlan protocol group Adds protocol-based VLAN groups to the system.
vlan protocol group add protocol Adds a protocol to a protocol-based VLAN.
vlan protocol group name Adds a group name to a protocol-based VLAN
vlan protocol group remove Removes a protocol-base VLAN group.
