Diffserv Configuration
Use the Diffserv Configuration page to display DiffServ General Status Group information, which
includes the current administrative mode setting as well as the current and maximum number of rows in
each of the main DiffServ private MIB tables.
To display the
page, click Quality of Service → Differentiated Services → Diffserv Configuration in the
tree view.

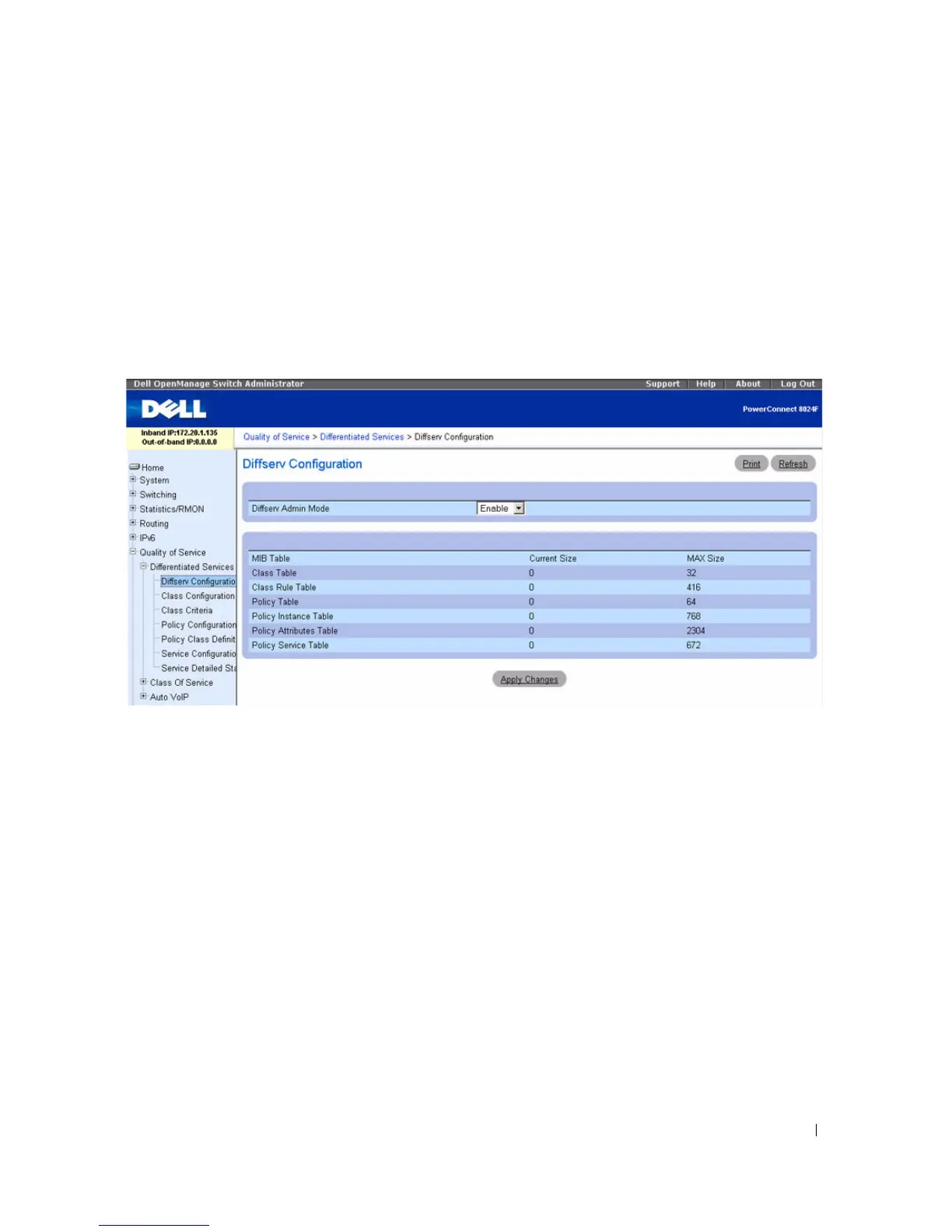

Figure 11-1. Diffserv Configuration
The Diffserv Configuration page contains the following fields:
Diffserv Admin Mode — Turns admin mode on and off. While disabled, the DiffServ configuration is
retained and can be changed, but it is not active. While enabled, Differentiated Services are active.
MIB Table
• Class Table — Displays the current and maximum number of rows of the class table.
•
Class Rule Table — Displays the current and maximum number of rows of the class rule table.
•
Policy Table — Displays the current and maximum number of rows of the policy table.
•
Policy Instance Table — Displays the current and maximum number of rows of the policy instance
table.
•
Policy Attributes Table — Displays the current and maximum number of rows of the policy attributes
table.
•
Service Table — Displays the current and maximum number of rows of the service table.
