Dell PowerConnect 8024 - CP Web Customization

188 Configuring System Information

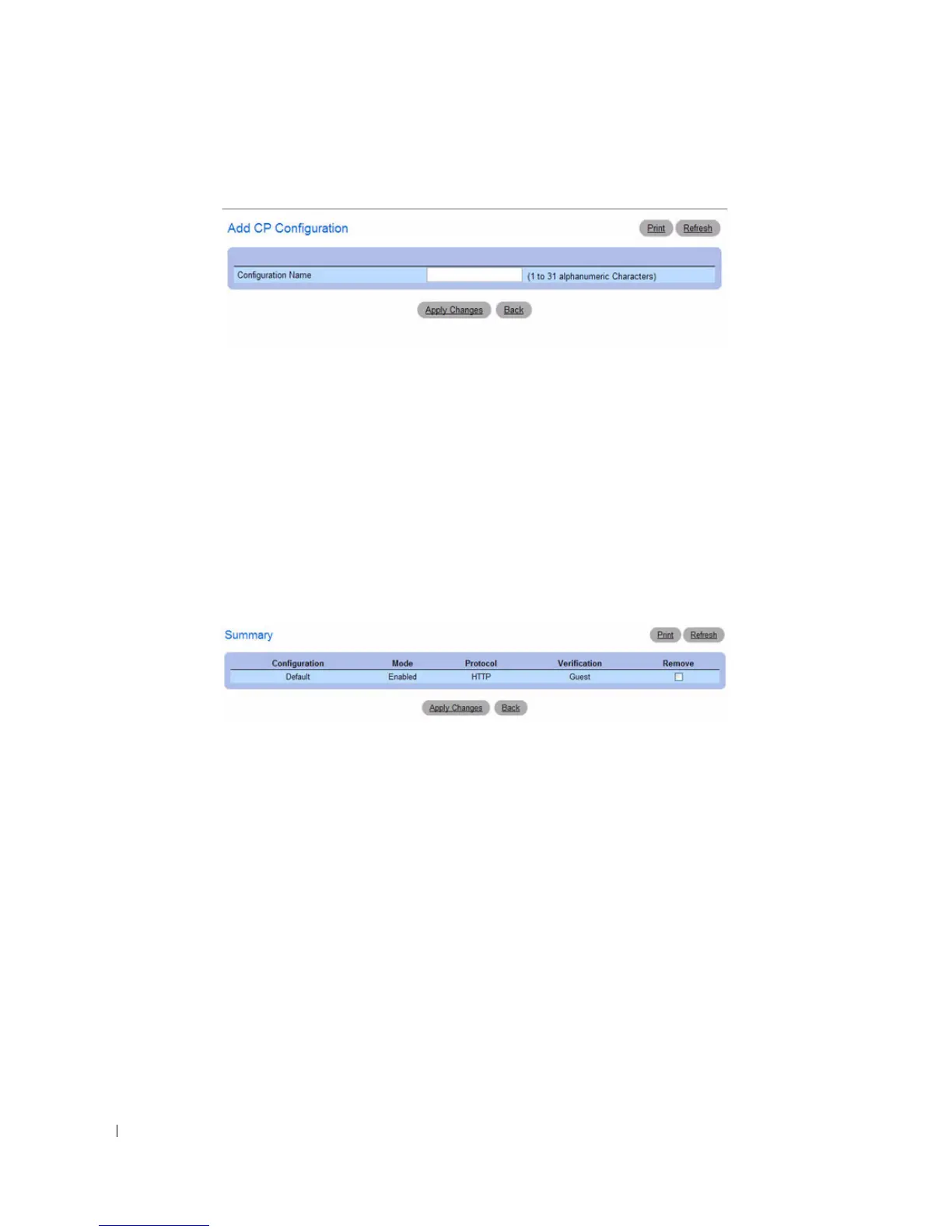

Figure 6-68. Add CP Configuration
3. Enter a name for the new CP configuration.
4. Click Apply Changes .
The CP configuration is added, and the device is updated.
Displaying the CP Configuration Summary
1. Open the Captive Portal Configuration page.
2. Click Show All .
The
CP Summary page displays:
Figure 6-69. CP Summary
3. To remove a CP configuration, select the Remove option in the CP configuration row and click Apply
Changes
.
CP Web Customization
When a client connects to the access point, the user sees a Web page. The CP Web Customization page
allows you to customize the appearance of that page with specific text and images. To display the CP
Web Customization page, click System
→ Captive Portal → Web Customization.
To configure the portal users in a remote RADIUS server, see "Configuring Users in a Remote RADIUS
Server" on page 193.
