Dell PowerConnect 8024 User Guide

Configuring Switching Information 327
STP Port Settings
Use the STP Port Settings page to assign STP properties to individual ports.
To display the STP Port Settings page, click Switching
→ Spanning Tree → STP Port Settings in the tree
view.

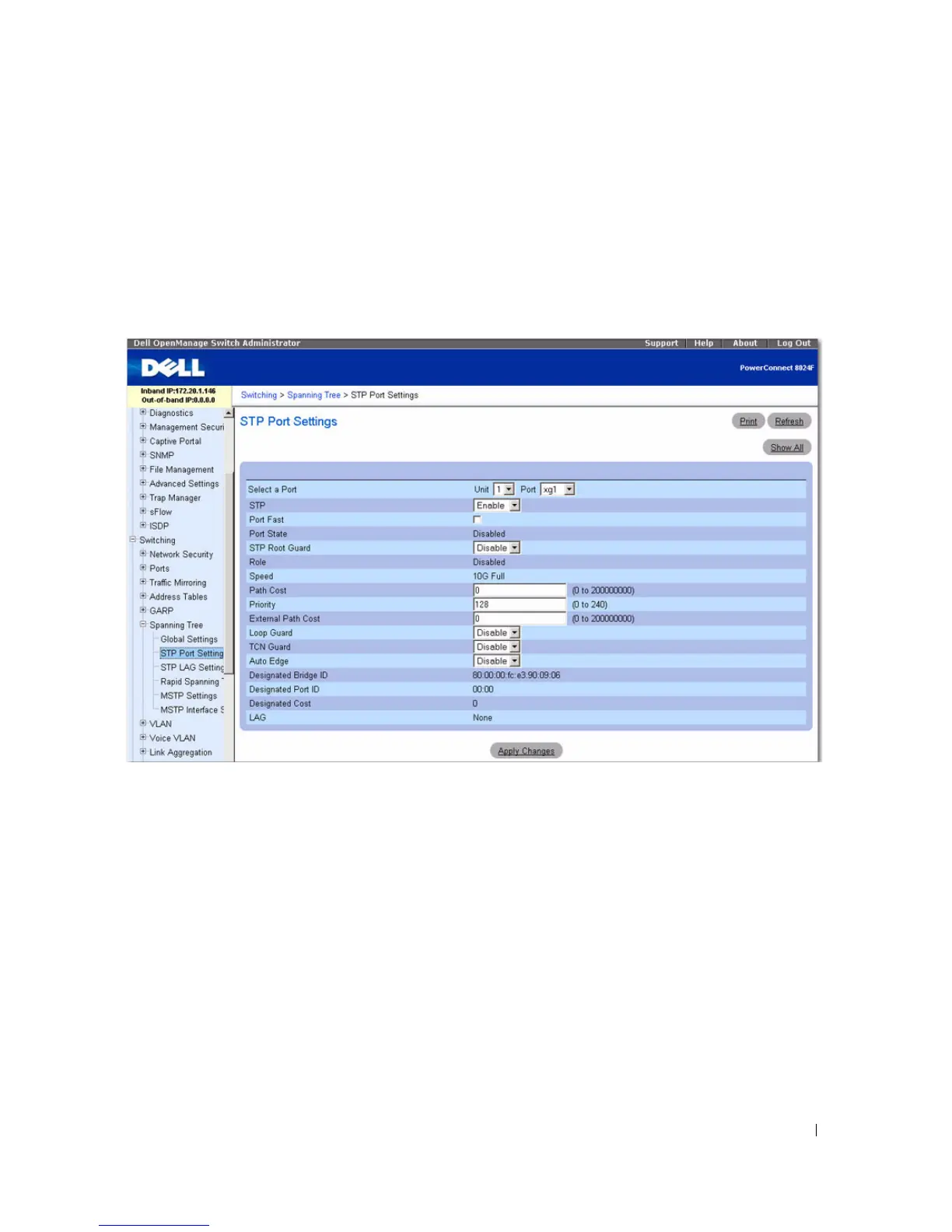

Figure 7-39. STP Port Settings
The STP Port Settings page contains the following fields:
• Select a Port — Specifies the Unit and Port on which STP is enabled.
•
STP — Enables or disables STP on the port.
•
Port Fast — Enables Port Fast mode for the port when checked. If Port Fast mode is enabled for a port,
the
Port State is automatically placed in the Forwarding state when the port link is up. STP
convergence can take 30–60 seconds in large networks.
•
Port State —Indicates the current STP state of a port. If enabled, the port state determines what
forwarding action is taken on traffic. Possible port states are:
–
Disabled — STP is currently disabled on the port. The port forwards traffic while learning MAC
addresses.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
