54 Hardware Description
PowerConnect 8024/8024F Rear Panel
Each PowerConnect 8024/8024F switch provides an RJ-45 serial console port, an OOB ethernet port, and
two power supplies for redundant or loadsharing operation.

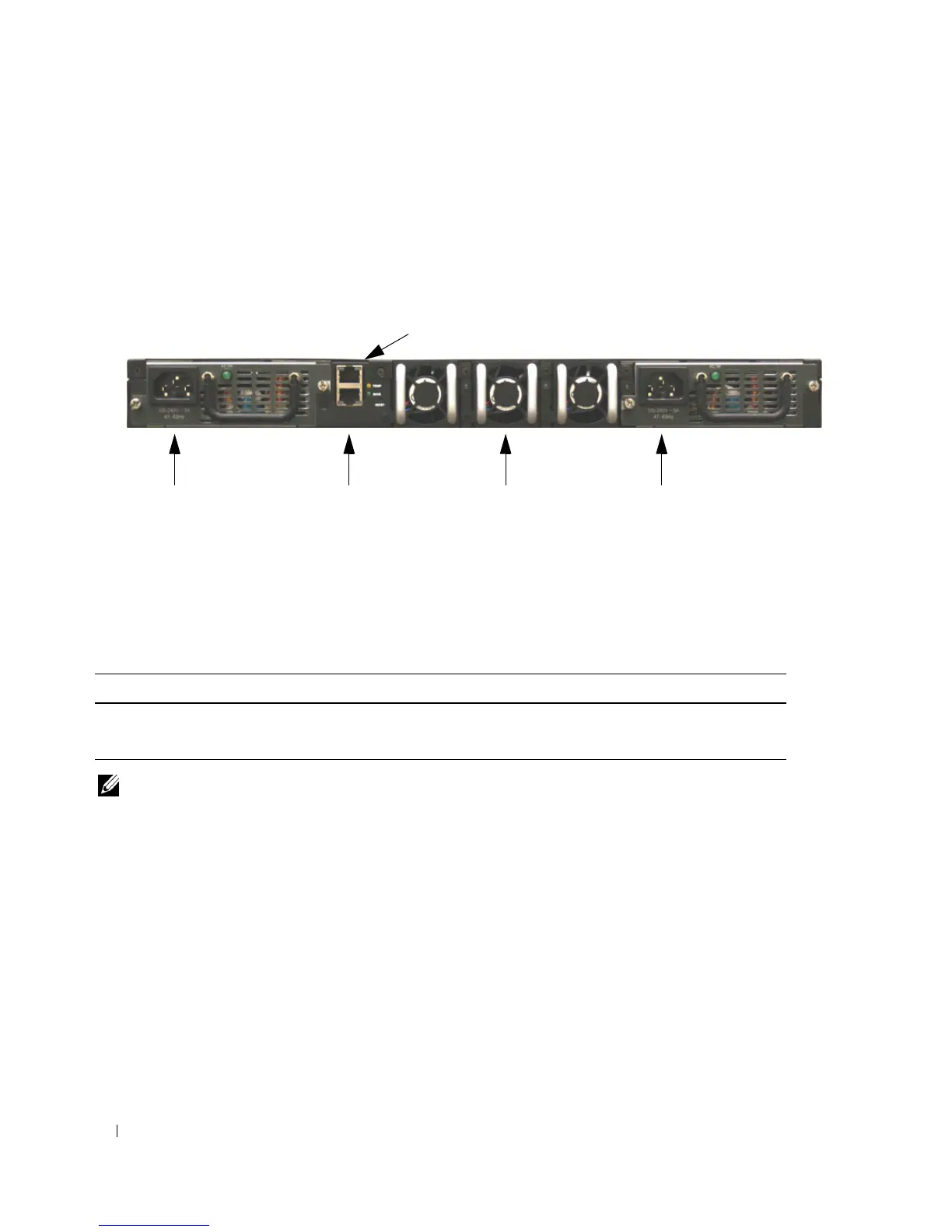

Figure 4-3. PowerConnect 8024 Rear Panel
SFP/SFP+ Transceivers
PowerConnect 8024/8024F switches support 1 GbE SFP and 10 GbE SFP+ transceivers on fiber ports.
Table 4-1 explains the supported transceivers and their capabilities on fiber ports.
Note: SFP modules that are compliant to the SFF 8472 standard are supported.
Physical Dimensions
The 8024/8024F switches have the following physical dimensions:
• 440 x 387 x 44 mm (W x D x H).
• 17.32 x 15.24 x 1.73 inch (W x D x H).
Table 4-1. SFP/SFP+ Transceiver Modules
Module Type
Negotiation Support Default Negotiation Supported Speeds
SFP Yes Enabled 1G
SFP+ No Not Applicable 10G
AC powerAC power OOB Ethernet port
RJ-45 serial console port
Fans (3)
