Configuring Switching Information 279

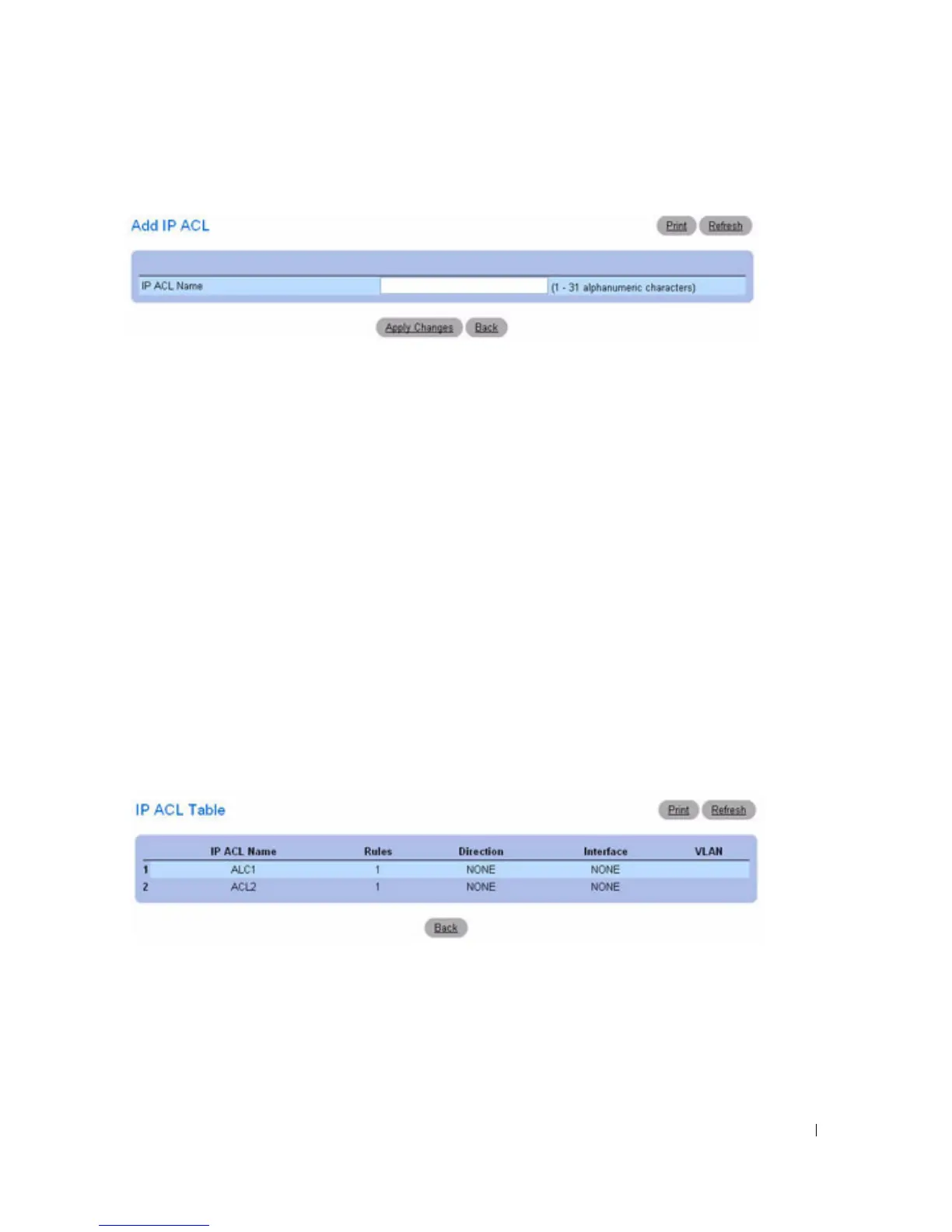

Figure 7-7. Add IP ACL
3. Enter the desired ACL Name in the related entry field.
4. Click Apply Changes .
The IP-based ACL is added, and the device is updated.
Removing an IP-based ACL
1. Open the IP ACL Configuration page, and select the ACL to be deleted from the IP ACL drop-down
menu.
2. Check the Remove ACL check box.
3. Click Apply Changes .
The IP-based ACL is removed, and the device is updated.
Displaying IP ACLs
1. Open the IP ACL Configuration page.
2. Click Show All .
All IP ACLs and their related data display in the
IP ACL Table .
Figure 7-8. IP ACL Table
Adding an IP-based ACL Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide :
• ACL Commands
