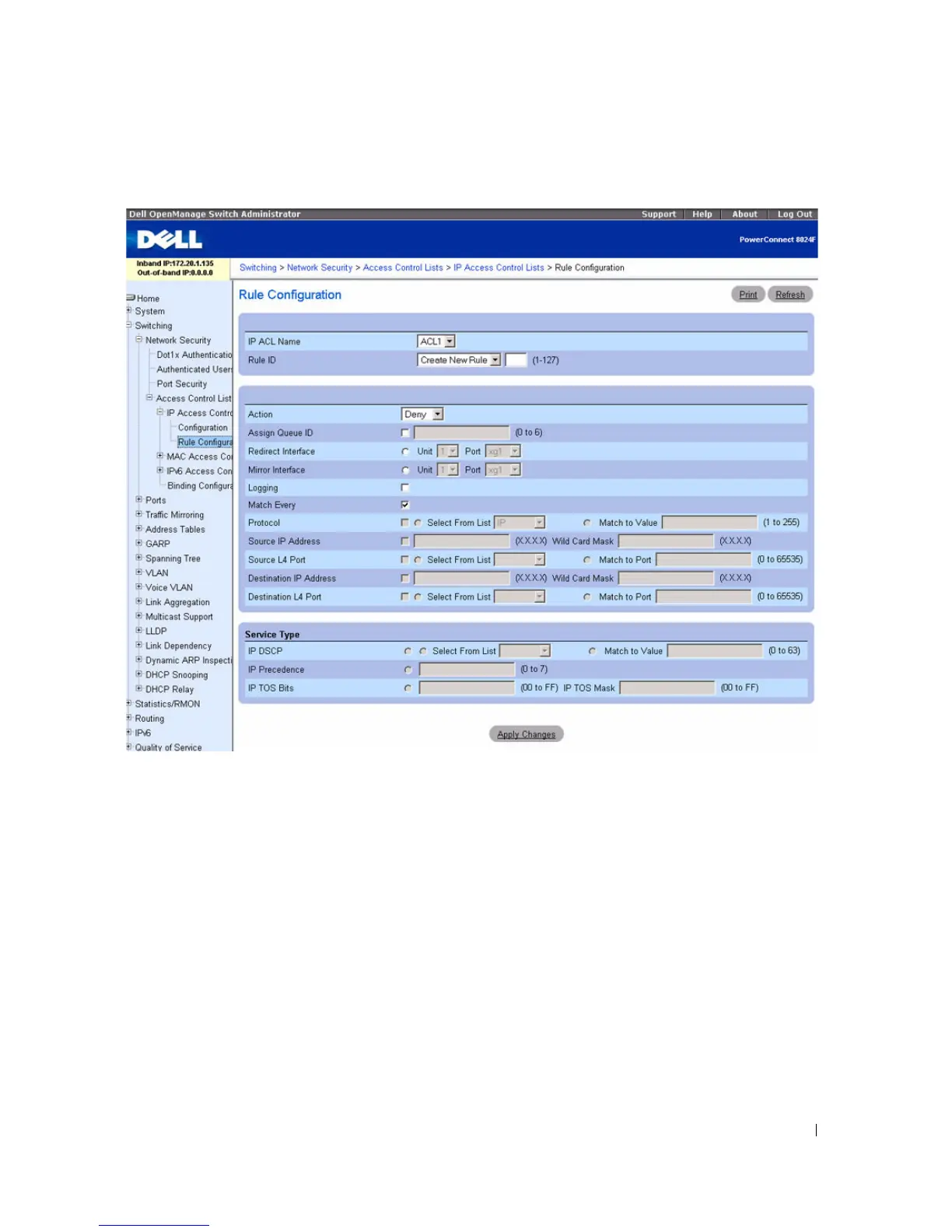

Figure 7-9. IP ACL - Rule Configuration (Standard)
The IP ACL Rule Configuration page contains the following fields:
•
IP ACL Name
— Specifies an existing IP ACL. To set up a new IP ACL use the "IP ACL
Configuration" page.
•
Rule ID
— Selects or creates user-defined ACLs. Enter an existing Rule ID, or create a new one by
selecting Create from the drop-down menu and entering the desired new Rule ID in the field next to
it. The new ID is created once Apply Changes is clicked. Up to 127 rules can be created for each ACL.
•
Action
— Selects the ACL forwarding action. Choose from the drop-down menu options to apply a
forwarding action. Possible values are:
–
Permit
— Forwards packets which meet the ACL criteria.
–
Deny
— Drops packets which meet the ACL criteria.
•
Assign Queue ID
— Click the check box to apply this criteria, then enter an identifying number from
0 to 6.
