308 Configuring Switching Information
•
Port
— Specifies the
Unit
and
Port
for which storm control is enabled.
•
Storm Control Mode
— Specifies the mode of broadcast affected by storm control.
–
Broadcast
— If the rate of L2 broadcast traffic ingressing on an interface increases beyond the
configured threshold, the traffic will be dropped.
–
Multicast
— If the rate of L2 multicast traffic ingressing on an interface increases beyond the
configured threshold, the traffic will be dropped.
–
Unknown Unicast
— If the rate of unknown L2 unicast (destination lookup failure) traffic
ingressing on an interface increases beyond the configured threshold, the traffic will be dropped.
•
Storm Control Admin Mode
— Enables or Disables Storm Control.
•
Storm Control Rate Threshold (0–100%)
— Specifies the maximum rate at which unknown packets
are forwarded. The range is a percent of the total threshold.
Defining Storm Control Port Parameters
1.
Open the
Storm Control
interface.
2.
Edit the fields on the screen.
3.
Click
Apply Changes
.
The storm control port parameters are saved to the switch.
Displaying the Storm Control Settings Table
1.
Open the
Storm Control
interface.
2.
Click
Show All
.
The
Storm Control Settings Table
displays.

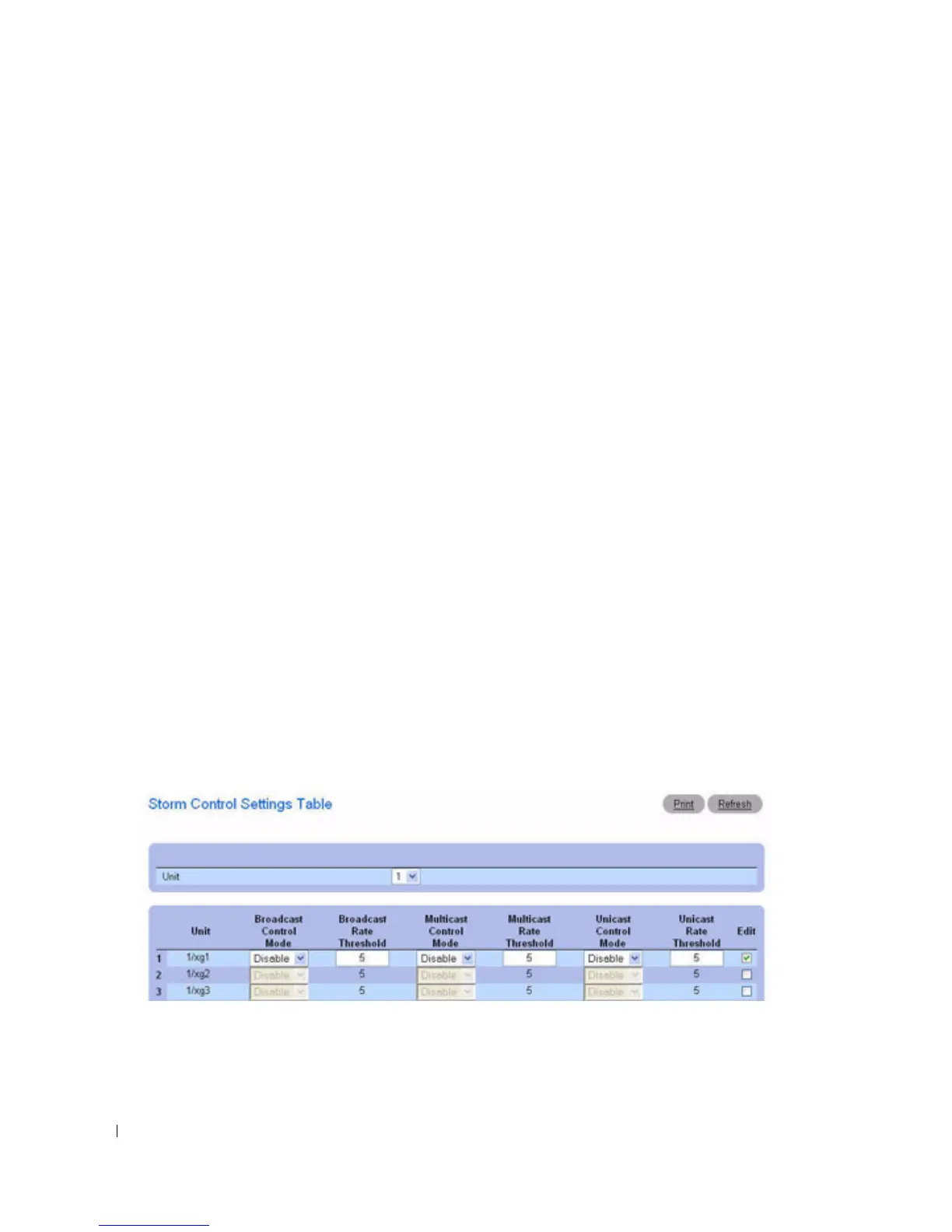

Figure 7-28. Storm Control Settings Table
3.
Use the
Unit
drop-down menu to view the
Storm Control Settings Table
for other units in the stack, if
they exist.
