Configuring Switching Information 345

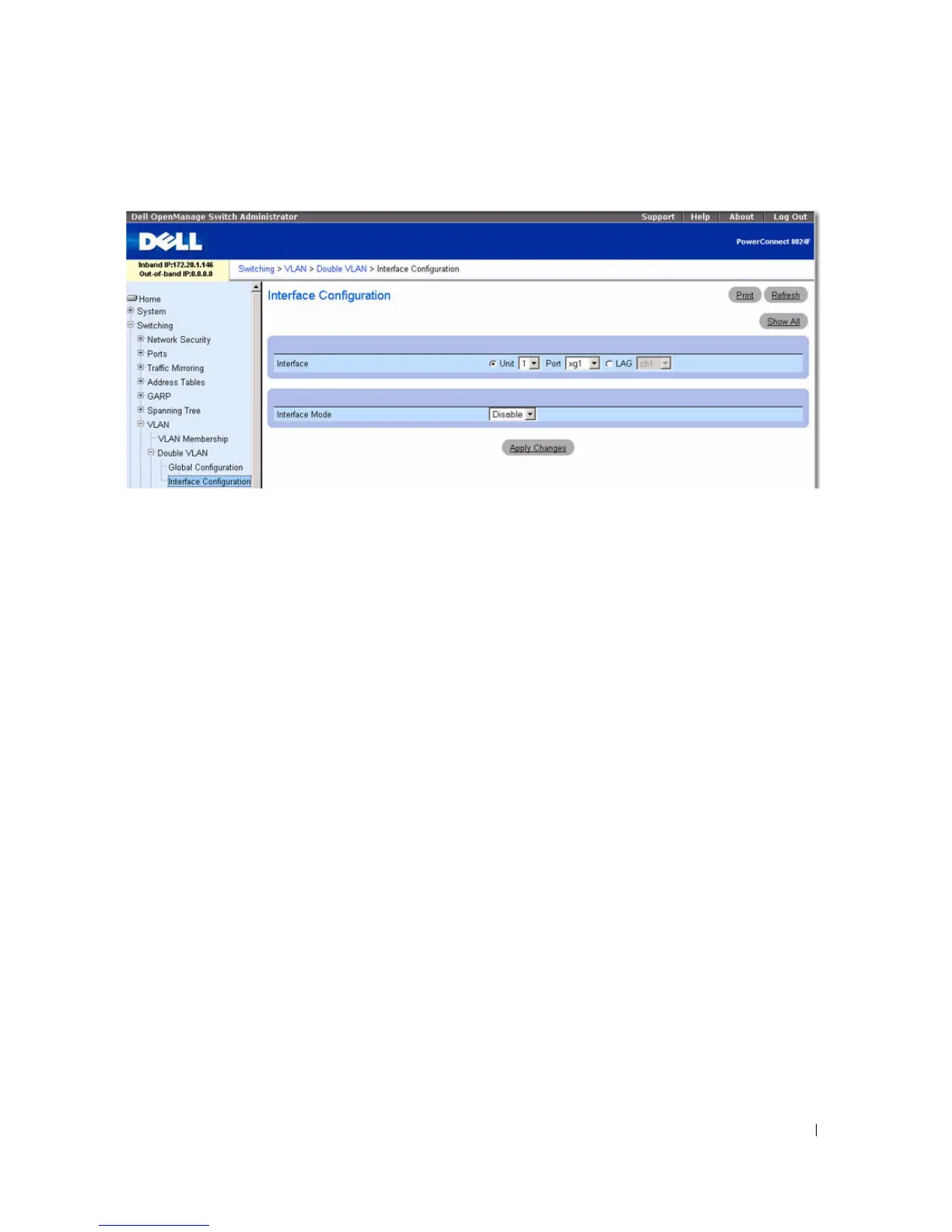

Figure 7-52. Double VLAN Interface Configuration
The Double VLAN Interface Configuration page contains the following fields:
• Interface — Select the port or LAG for which you want to display or configure data.
•
Interface Mode — Enables or disables double VLAN tagging on the selected interface. The default
value is
Disable .
Assigning Double VLAN Tags
1. Open the Double VLAN Global Configuration page.
2. Select the Ethertype from the drop-down menu.
3. Click Apply Changes .
4. Open the Double VLAN Interface Configuration page.
5. Select the port to which you want to assign settings from the Interface drop-down menu.
6. Select the Interface Mode from the drop-down menu.
7. Click Apply Changes .
The Double VLAN settings are defined, and the device is updated.
Displaying the Double VLAN Port Parameters Table
1. Open the Double VLAN Interface Configuration page.
2. Click Show All .
The
Double VLAN Port Parameters Table displays.
