350 Configuring Switching Information

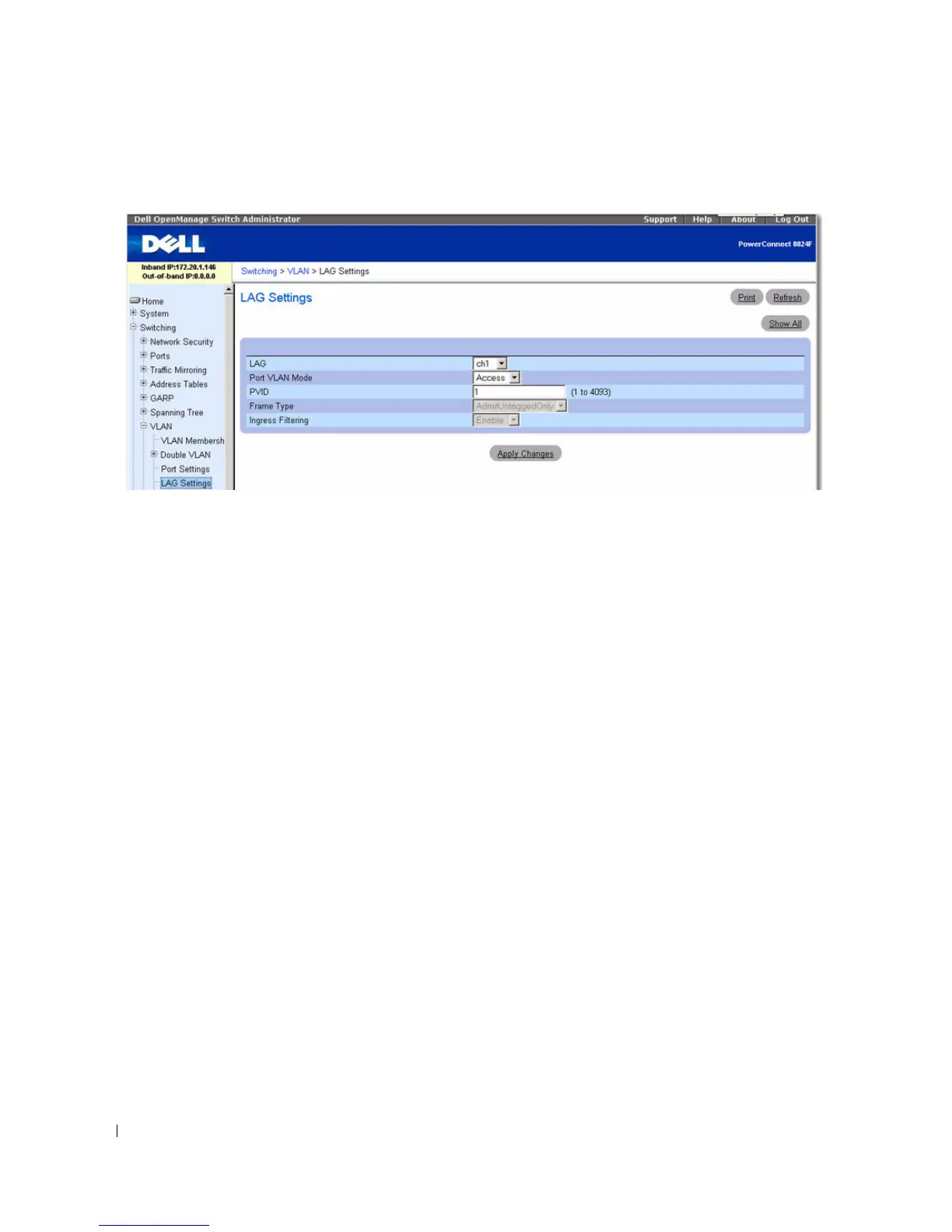

Figure 7-56. VLAN LAG Settings
The VLAN LAG Settings page contains the following fields:
• LAG — Specifies the LAG number included in the VLAN.
•
Port VLAN Mode — Indicates the Port VLAN mode for the LAG. Possible values are:
–
General — The LAG belongs to VLANs, and each VLAN is user-defined as tagged or untagged
(full 802.1Q mode).
–
Access — The LAG belongs to a single, untagged VLAN.
•
Trunk — The LAG belongs to more than one VLAN, and all ports are tagged (except for an optional
single native VLAN).
•
PVID (1–4093)| 4095 — Assigns a VLAN ID to untagged packets. The possible field values are
1–4093 or 4095.
•
Frame Type — Specifies packet type accepted by the LAG. Admit Tag Only is the default. Possible
values are:
–
Admit Tag Only — The LAG only accepts tagged packets.
–
Admit All — Tagged and untagged packets are both accepted by the LAG.
•
Ingress Filtering — Enables or disables Ingress filtering by the LAG. Ingress filtering discards packets
where the VLAN tag does not match the LAG VLAN membership.
Assigning VLAN LAG Settings
1. Open the VLAN LAG Settings page.
2. Select a LAG from the LAG drop-down menu
3. Complete the remaining fields on the page.
4. Click Apply Changes .
