366 Configuring Switching Information
Global Parameters
• LACP System Priority (1–65535) — Indicates the LACP priority value for global settings. The default
value is 1.
Port Parameters
• Interface — Specifies the unit and port number to which timeout and priority values are assigned.
•
LACP Port Priority (1–65535) — Specifies LACP priority value for the specified port. The default
value is 1.
•
LACP Timeout — Specifies Administrative LACP timeout. Possible values are:
–
Short — Specifies a short timeout value.
–
Long — Specifies a long timeout value. This is the default.
Defining Link Aggregation Parameters
1. Open the LACP Parameters page.
2. Complete the fields as needed.
3. Click Apply Changes .
The parameters are defined, and the device is updated.
Displaying the LACP Parameters Table
1. Open the LACP Parameters page.
2. Click Show All .
The
LACP Parameters Table displays.

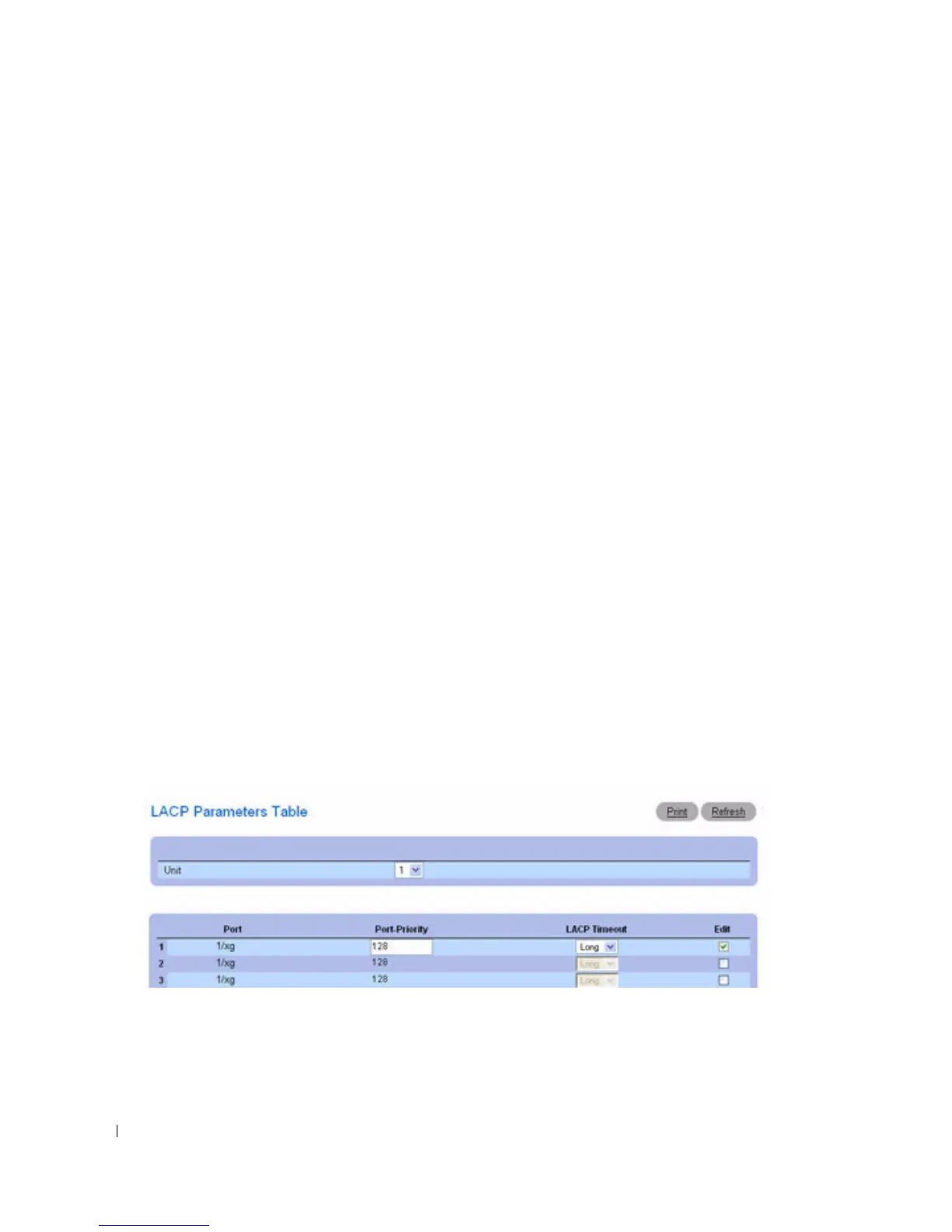

Figure 7-69. LACP Parameters Table
3. Use the Unit drop-down menu to view the LACP Parameters Table for other units in the stack, if they
exist.
