Dell PowerConnect 8024 - Page 539

Configuring Routing 539

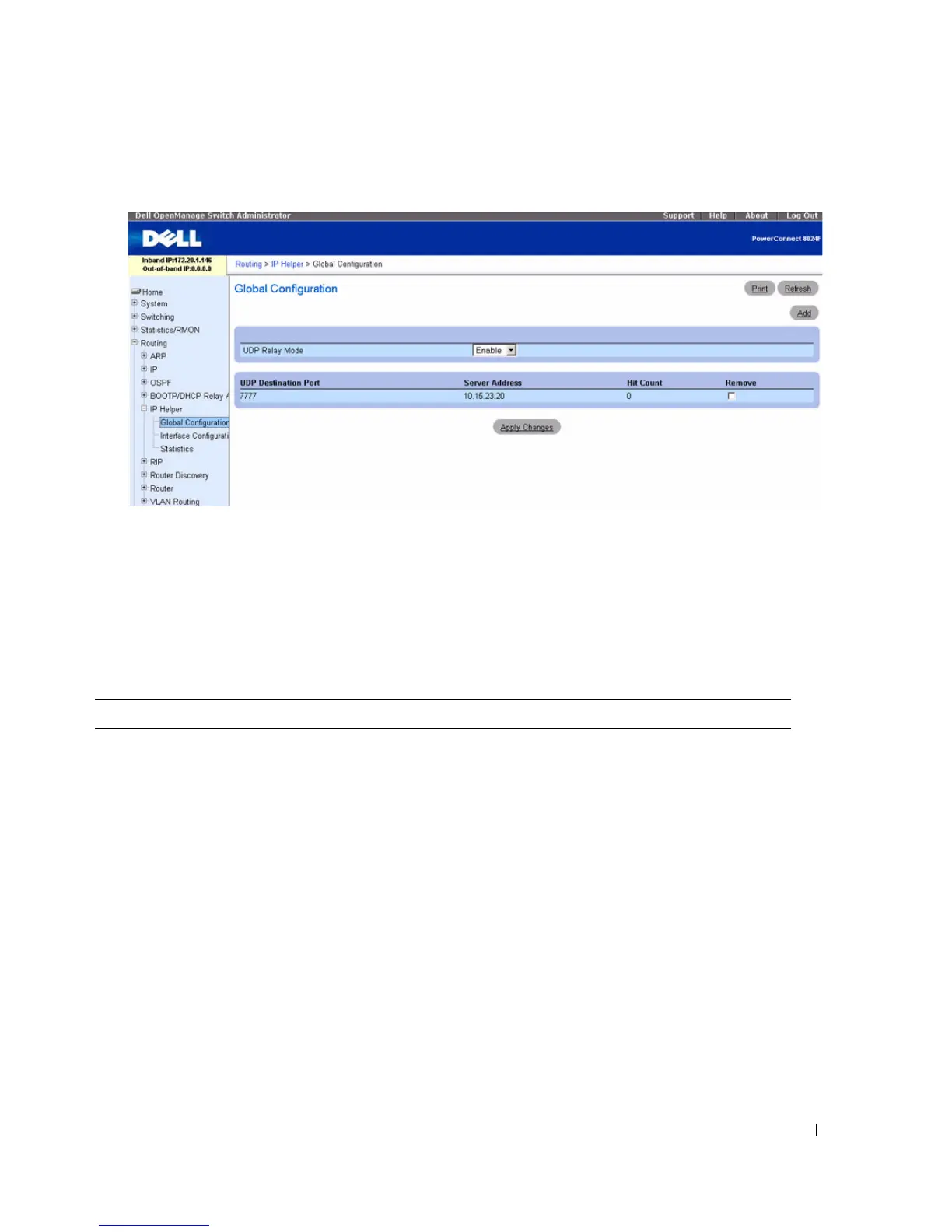

Figure 9-22. IP Helper Global Configuration
The IP Helper Global Configuration page contains the following fields:
• UDP Relay Mode — Use the menu to enable or disable the UDP relay mode. You must enable the
UDP Relay Mode to relay any other protocols for which an IP helper address has been configured. By
default UDP Relay Mode is Enabled.
•
UDP Destination Port — Identifies destination UDP port number of UDP packets to be relayed.
Table 9-20 lists UDP Port allocations.
Table 9-20. UDP Port Allocations
UDP Port Number Acronym Application
7 Echo Echo
11 SysStat Active User
15 NetStat NetStat
17 Quote Quote of the day
19 CHARGEN Character Generator
20 FTP-data FTP Data
21 FTP FTP
37 Time Time
42 NAMESERVER Host Name Server
43 NICNAME Who is
53 DOMAIN Domain Name Server
69 TFTP Trivial File Transfer
