• Source IP Interface — Select the interface to use for UDP/Helper relays. Select All to configure relay
entries on all available interfaces.
•
UDP Destination Port — Identifies destination UDP port number of UDP packets to be relayed. For a
list of UDP Port allocations, see Table 9-20.
•
Server Address — The IPv4 address of the server to which packets are relayed for the specific UDP
Destination Port.
•
IsDiscard — If True, packets arriving on the given interface with the given destination UDP port are
discarded rather than relayed. Discard entries are used to override global IP helper address entries
which otherwise might apply to a packet.
•
Hit Count — The number of times a packet has been forwarded or discarded according to this entry.
•
Remove — Select this option and click Apply Changes to remove the relay from the selected source IP
interface.
Adding an IP Helper Entry to an Interface
1. Open the IP Helper Interface Configuration page .
2. Click Add to display the Interface Configuration Add page :

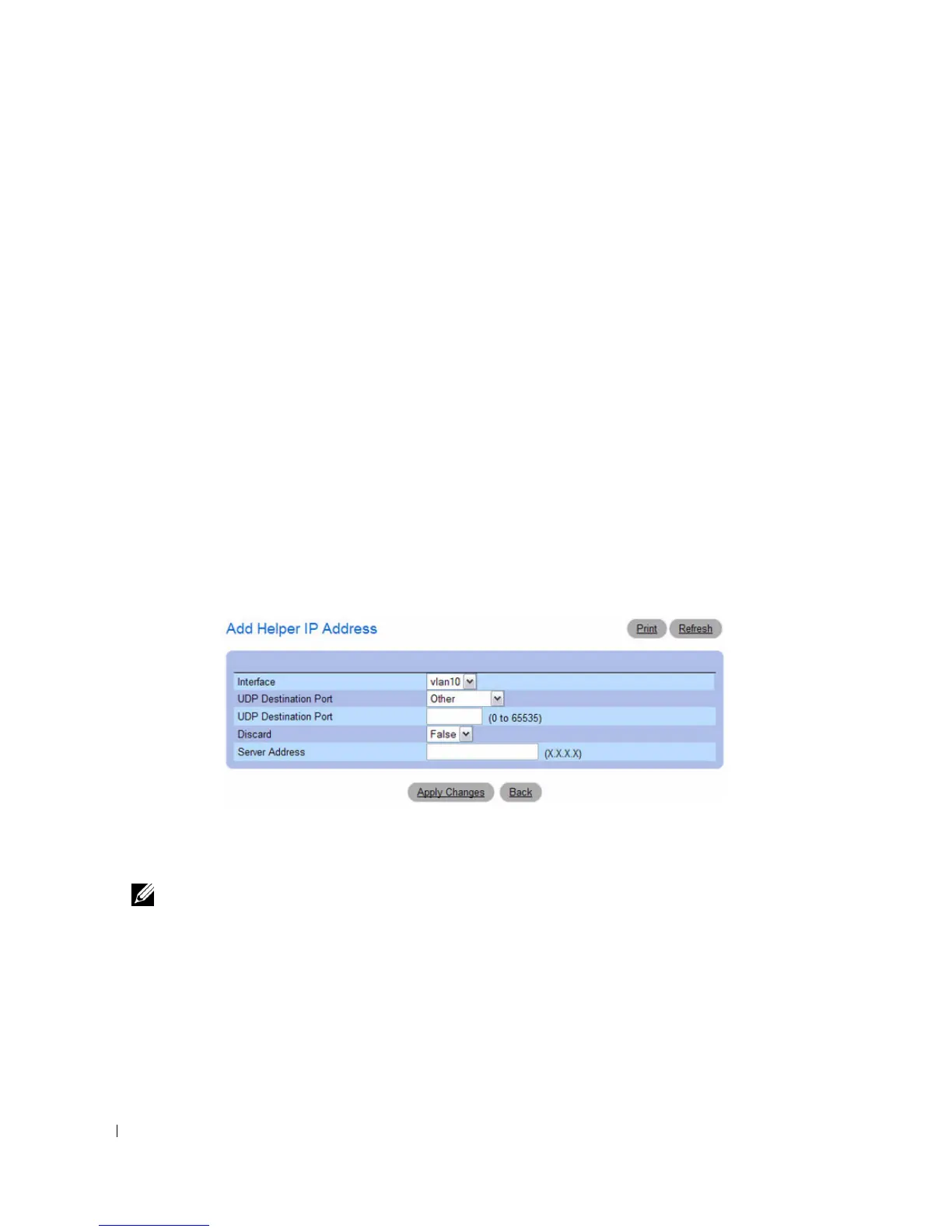

Figure 9-25. Add Helper IP Address
3. Select the interface to use for the relay.
4. Select a UDP Destination port name from the menu or enter the UDP Destination Port ID. Select the
Default Set to configure for the relay entry for the default set of protocols.
NOTE: If the DefaultSet option is specified, the device by default forwards UDP Broadcast packets for the
following services: IEN-116 Name Service (port 42), DNS (port 53), NetBIOS Name Server (port 137), NetBIOS
Datagram Server (port 138), TACACS Server (Port 49), and Time Service (port 37).
5. Choose whether to discard (True) or keep (False) packets arriving on the given interface with the
given destination UDP port.
6.
Enter the IP address of the server to which the packets with the given UDP Destination Port will be
relayed.
7. Click Apply Changes .
