Configuring Routing 551

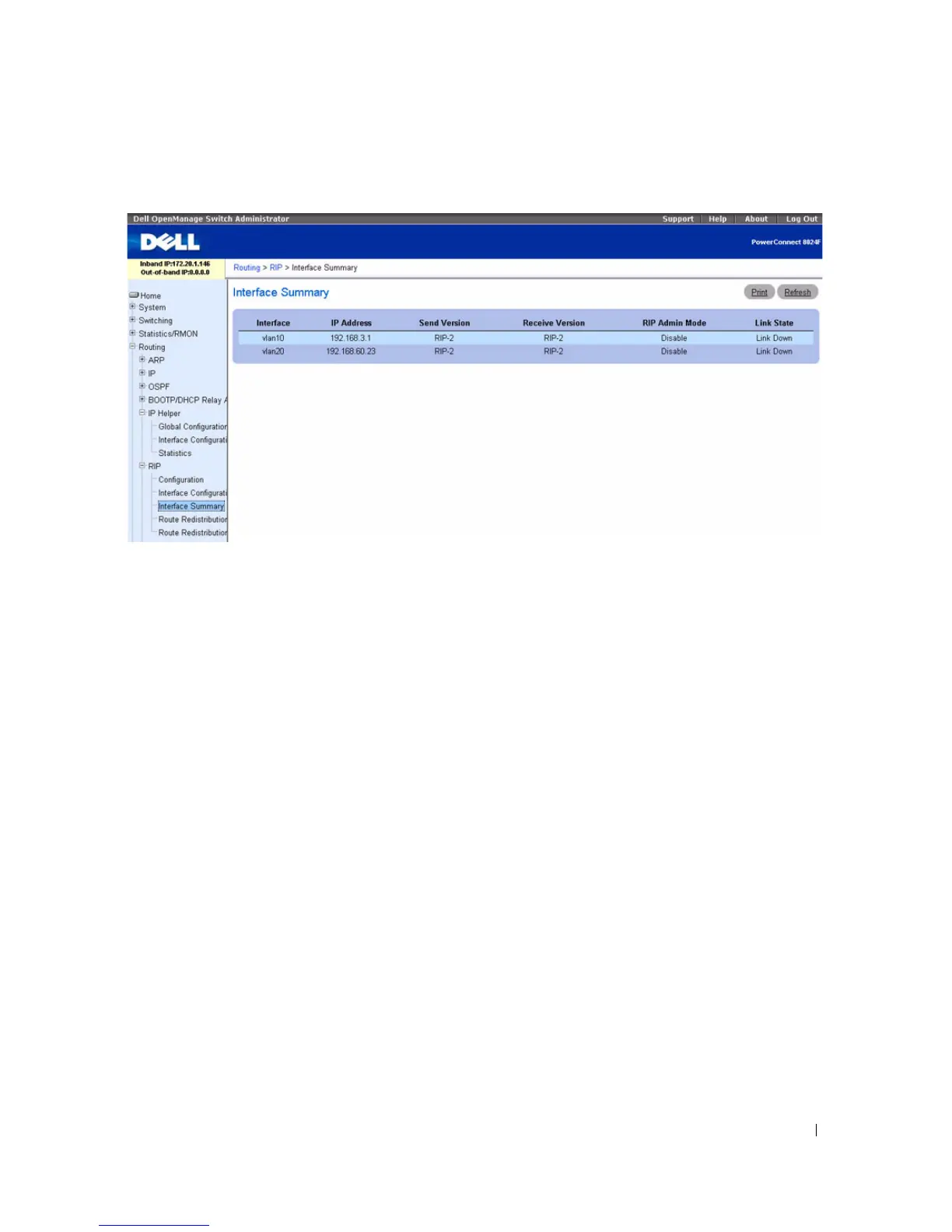

Figure 9-29. RIP Interface Summary
The RIP Interface Summary page displays the following fields:
•
Interface
— The interface, such as the routing-enabled VLAN on which RIP is enabled.
•
IP Address
— The IP Address of the router interface.
•
Send Version
— Specifies the RIP version to which RIP control packets sent from the interface
conform. The default is RIP-2. Possible values are:
–
RIP-1
— RIP version 1 packets are sent using broadcast.
–
RIP-1c
— RIP version 1 compatibility mode. RIP version 2 formatted packets are transmitted
using broadcast.
–
RIP-2
— RIP version 2 packets are sent using multicast.
–
None
— RIP control packets are not transmitted.
•
Receive Version
— Specifies which RIP version control packets are accepted by the interface. The
default is Both. Possible values are:
–
RIP-1
— only RIP version 1 formatted packets are received.
–
RIP-2
— only RIP version 2 formatted packets are received.
–
Both
— packets are received in either format.
–
None
— no RIP control packets are received.
•
RIP Admin Mode
— Specifies whether RIP is Enabled or Disabled on the interface.
•
Link State
— Specifies whether the RIP interface is up or down.
