Dell PowerConnect 8024 User Guide

Configuring Routing 559

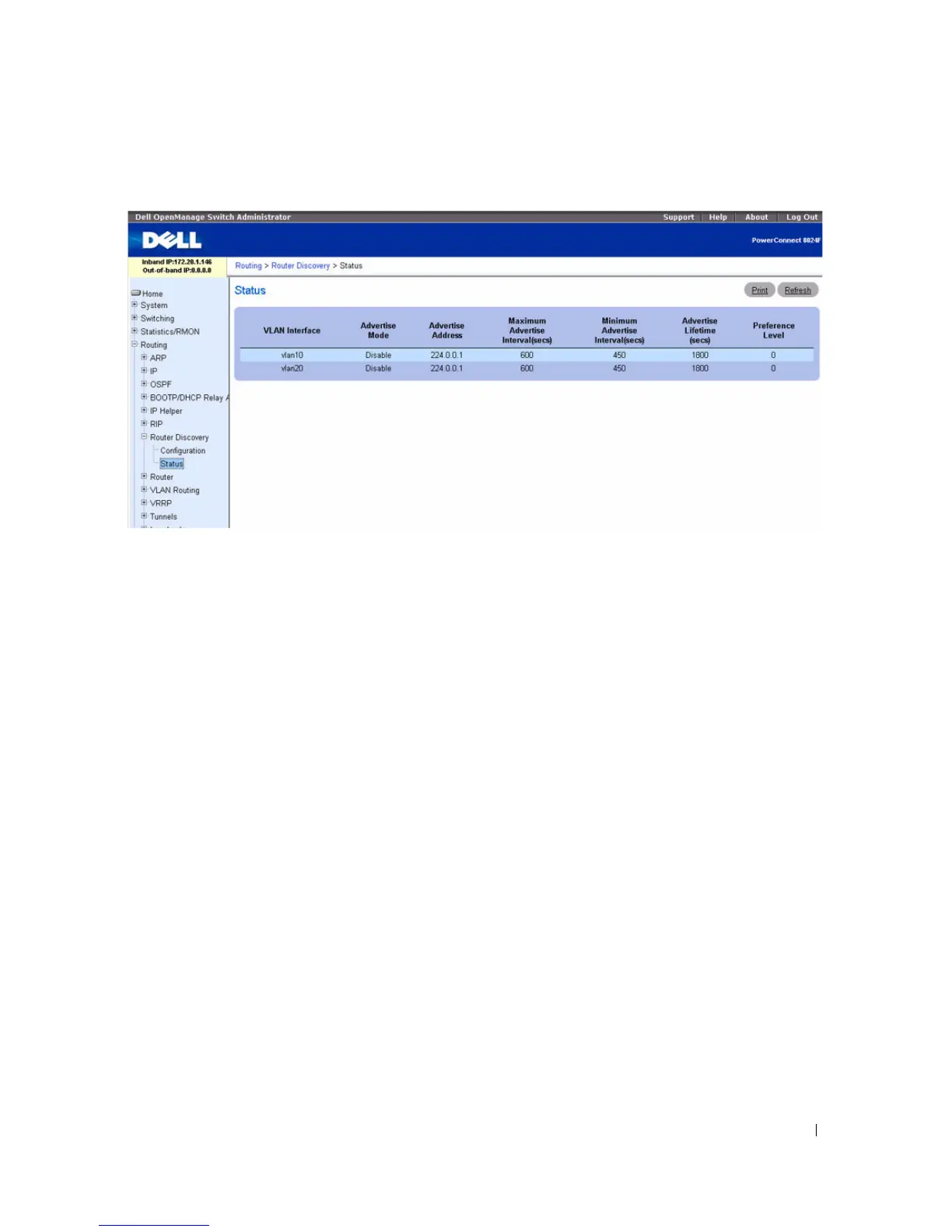

Figure 9-33. Router Discovery Status
The Router Discovery Status page displays the following fields:
• Interface — The router interface for which data is displayed.
•
Advertise Mode — The values are Enable or Disable. Enable denotes that Router Discovery is enabled
on that interface.
•
Advertise Address — The IP Address used to advertise the router.
•
Maximum Advertise Interval (secs) — The maximum time (in seconds) allowed between router
advertisements sent from the interface.
•
Minimum Advertise Interval (secs) — The minimum time (in seconds) allowed between router
advertisements sent from the interface.
•
Advertise Lifetime (secs) — The value (in seconds) used as the lifetime field in router advertisements
sent from the interface. This is the maximum length of time that the advertised addresses are to be
considered as valid router addresses by hosts.
•
Preference Level — The preference level of the router as a default router relative to other routers on
the same subnet. Higher numbered addresses are preferred.
Displaying Router Discovery Status Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• Router Discovery Protocol Commands
The following table summarizes the equivalent CLI commands for this feature.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
