Configuring Routing 585
You also have the option to specify the 64-bit extended unique identifier (EUI-64).
•
IPv6 Prefix Length
— Specify the IPv6 prefix length.
•
Source
— Select the desired source, IPv4 Address or Interface. If Address is selected, the source
address for this tunnel must be entered in dotted decimal notation. If Interface is selected the source
interface for this tunnel must be selected. The address associated with the selected interface is used as
the source address.
•
Destination Address
— The IPv4 destination address for this tunnel in dotted decimal notation.
Creating a New Tunnel
1.
Open the
Tunnels Configuration
page.
2.
Select
Create
from the
Tunnel
drop-down menu.
3.
Specify an ID to use in the
Tunnel ID
field.
4.
Click
Apply Changes
.
The Tunnel ID field is removed, and the remaining tunnel fields display.

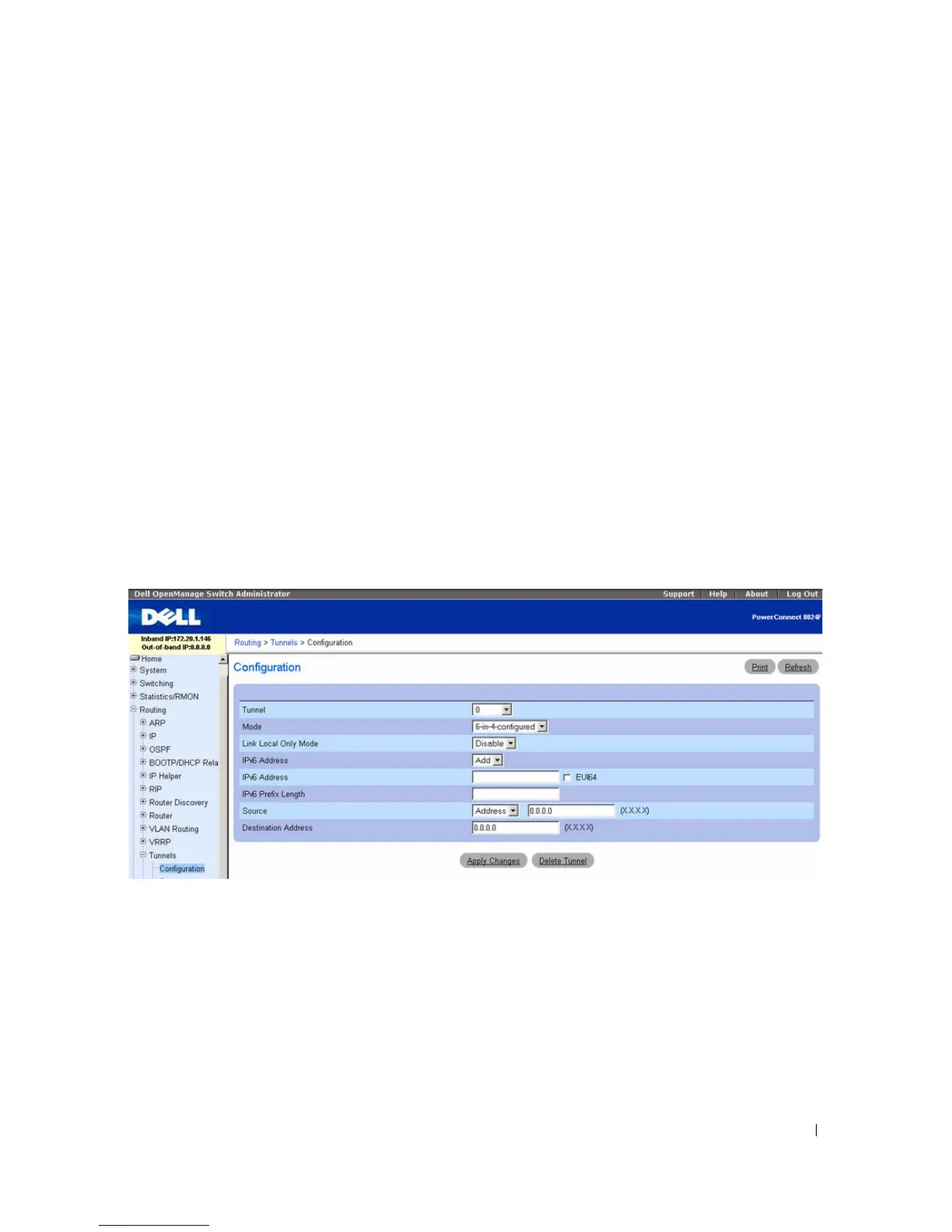

Figure 9-52. Tunnels Configuration - Entry
5.
Configure the fields as needed.
6.
Enter desired values in the remaining fields.
7.
Click
Apply Changes
.
The new tunnel is saved, and the device is updated.
Modifying an Existing Tunnel
1.
Open the
Tunnels Configuration
page.
2.
Specify the tunnel to modify in the
Tunnel
drop-down menu.
