Configuring IPv6 647

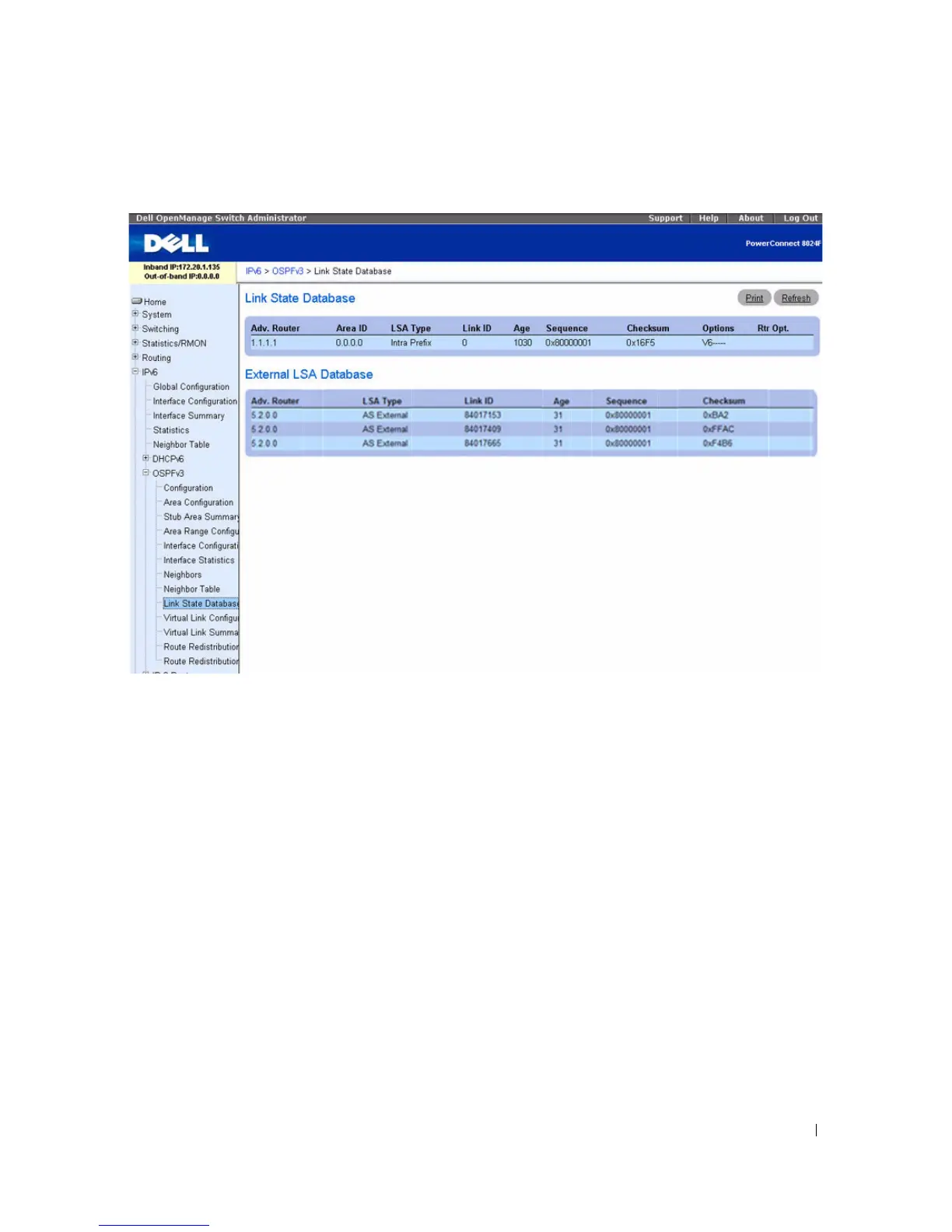

Figure 10-26. OSPFv3 Link State Database
The OSPFv3 Link State Database page displays the following fields:
•
Adv. Router
— The 32-bit integer in dotted decimal format that uniquely identifies the router within
the autonomous system (AS). The Router ID is set on the OSPFv3 Configuration page.
•
Area ID
— The ID of an OSPF area to which one of the router interfaces is connected. An Area ID is a
32-bit integer in dotted decimal format that uniquely identifies the area to which an interface is
connected.
•
LSA Type
— The format and function of the link state advertisement. The types, which are defined in
RFC 2740 section A.4, can be any of the following:
–Router-LSA
– Network-LSA
– Inter-Area-Prefix-LSA
– Inter-Area-Router-LSA
– AS-External-LSA
–Type-7-LSA
–Link-LSA
