Dell PowerConnect 8024 User Guide

654 Configuring IPv6

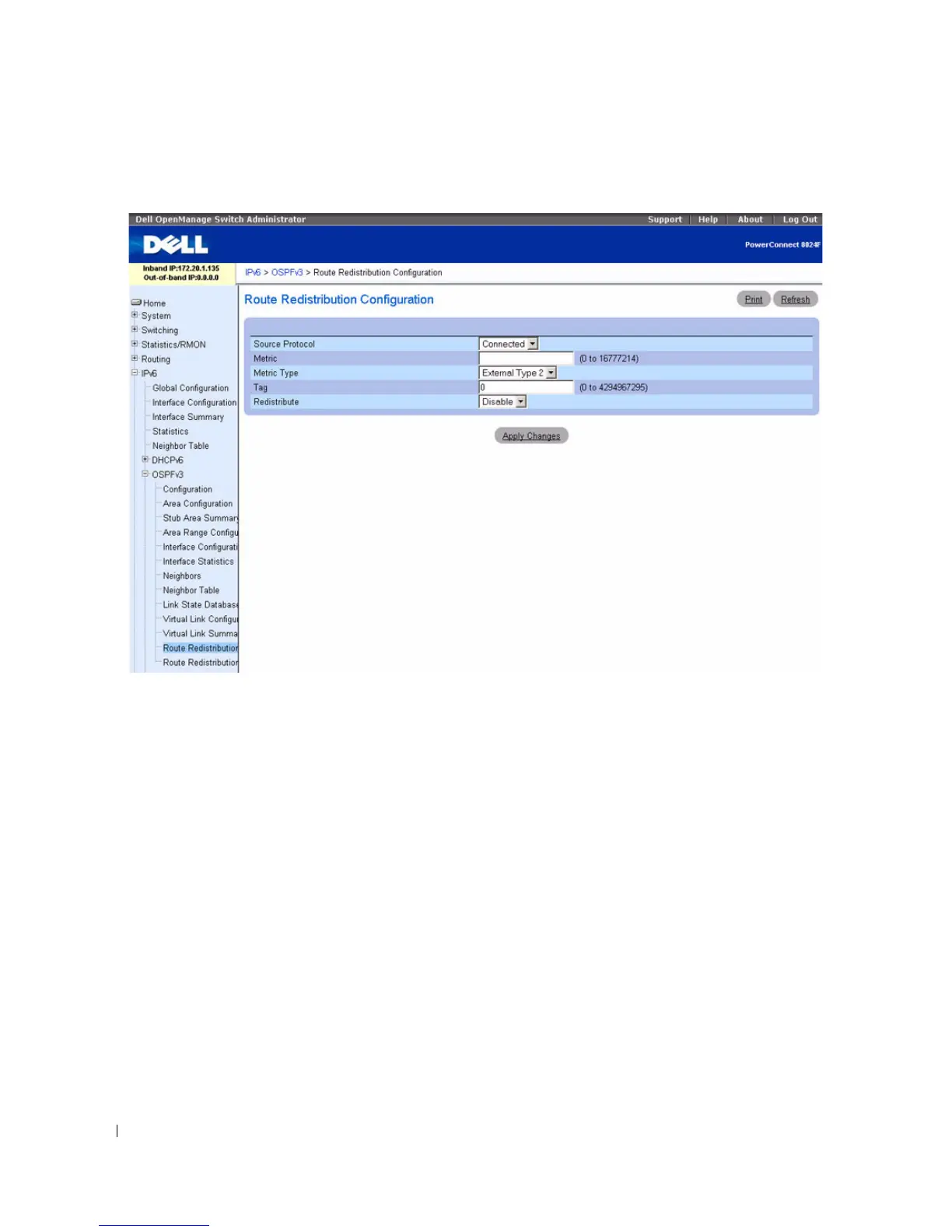

Figure 10-29. OSPFv3 Route Redistribution Configuration
The OSPFv3 Route Redistribution Configuration page contains the following fields:
• Source Protocol — Select the type of source routes to configure for redistribution by OSPF. Valid
values are Static and Connected.
•
Metric — Sets the metric value to be used as the metric of redistributed routes. This field displays the
metric if the source was pre-configured and can be modified. Valid values are 0 to 16777214.
•
Metric Type — Sets the OSPF metric type of redistributed routes.
•
Tag — Sets the tag field in routes redistributed. This field displays the tag if the source was pre-
configured, otherwise 0 is displayed. Valid values are 0 to 4294967295.
•
Redistribute — Enables or disables the redistribution for the selected source protocol. This field has to
be enabled in order to be able to configure any of the route redistribution attributes.
Configuring OSPFv3 Route Redistribution
1. Open the OSPFv3 Route Redistribution Configuration page.
2. Specify Create to set up a new configured source. Specify Connected or Static to modify an existing
configured source.
3. Set up or modify the remaining fields as needed.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
