660 Configuring IPv6

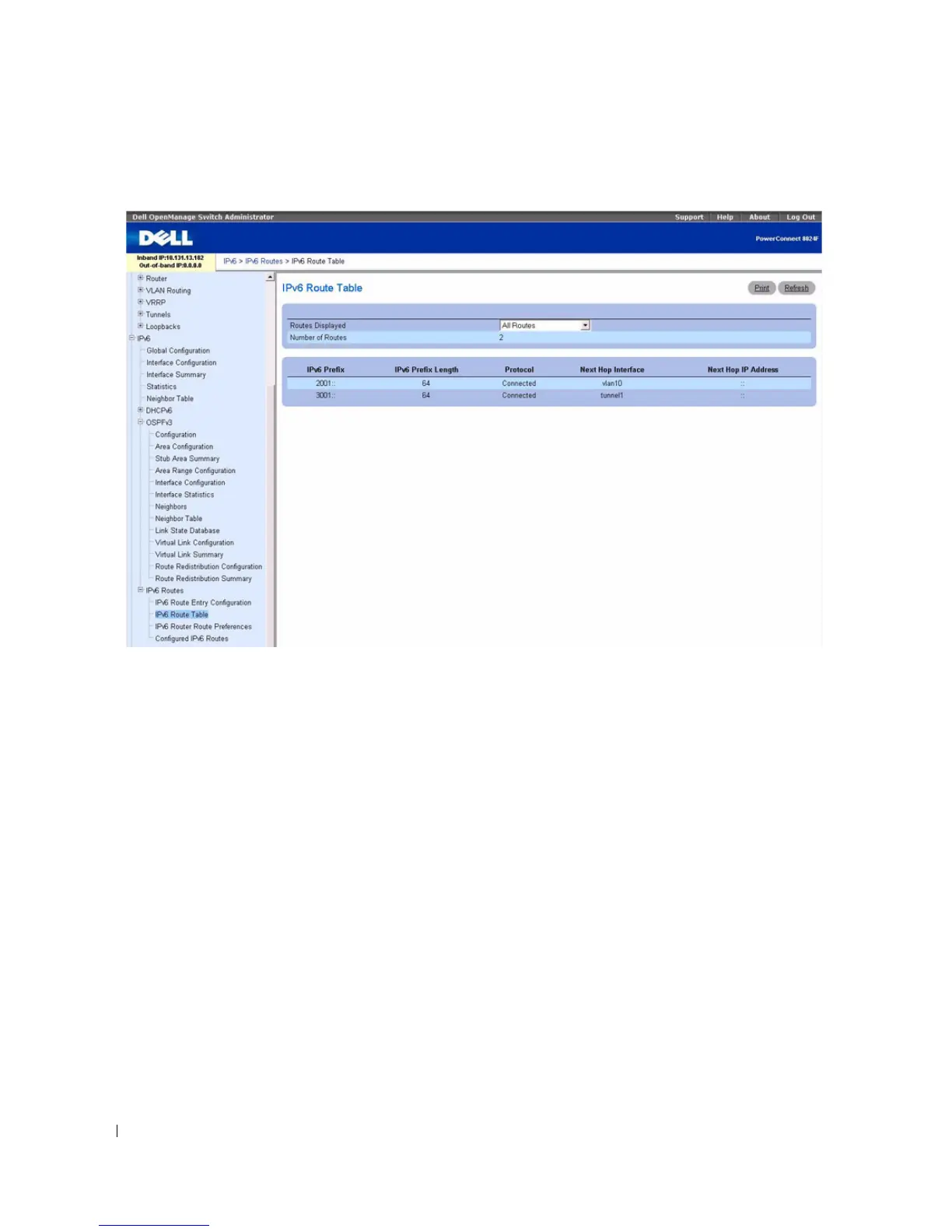

Figure 10-32. IPv6 Route Table
The IPv6 Route Table page displays the following fields:
•
Routes Displayed
— Select to view either the Configured Routes, Best Routes, or All Routes from the
drop-down menu.
•
Number of Routes
— Displays the total number of active routes/best routes in the route table for the
type of route selected.
•
IPv6 Prefix/Prefix Length
— Displays the Network Prefix and Prefix Length for the Active Route.
•
Protocol
— Displays the Type of Protocol for the Active Route.
•
Next Hop Interface
— Displays the Interface over which the Route is Active.
•
Next Hop IP Address
— Displays the Next Hop IPv6 Address for the Active Route.
Displaying the IPv6 Route Table
1.
Open the
IPv6 Route Table
page.
2.
Select the type of routes to display from the
Routes Displayed
field.
The selected routes display.
