690 Configuring Quality of Service

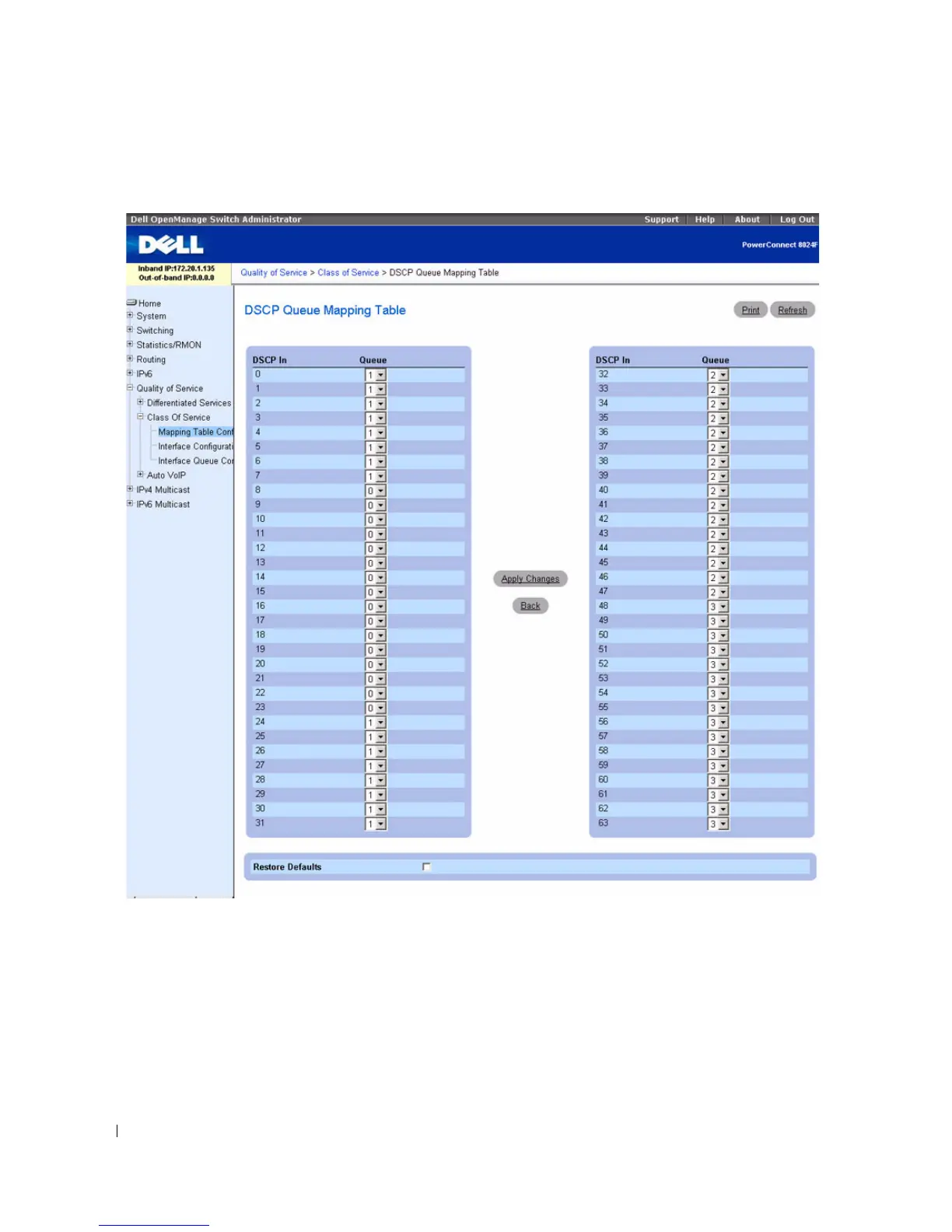

Figure 11-17. DSCP Queue Mapping Table
The DSCP Queue Mapping Table page contains the following fields:
•
DSCP In
— Check to select as a criterion, and enter which DiffServ Code Point in the packet to use.
This field determines to which queue the packet is sent.
•
Queue ID
— Selects the queue to which the packet is sent.
Restoring Queue Defaults
1.
Open the
DSCP Queue Mapping Table
page.
