Configuring IP Multicast 733

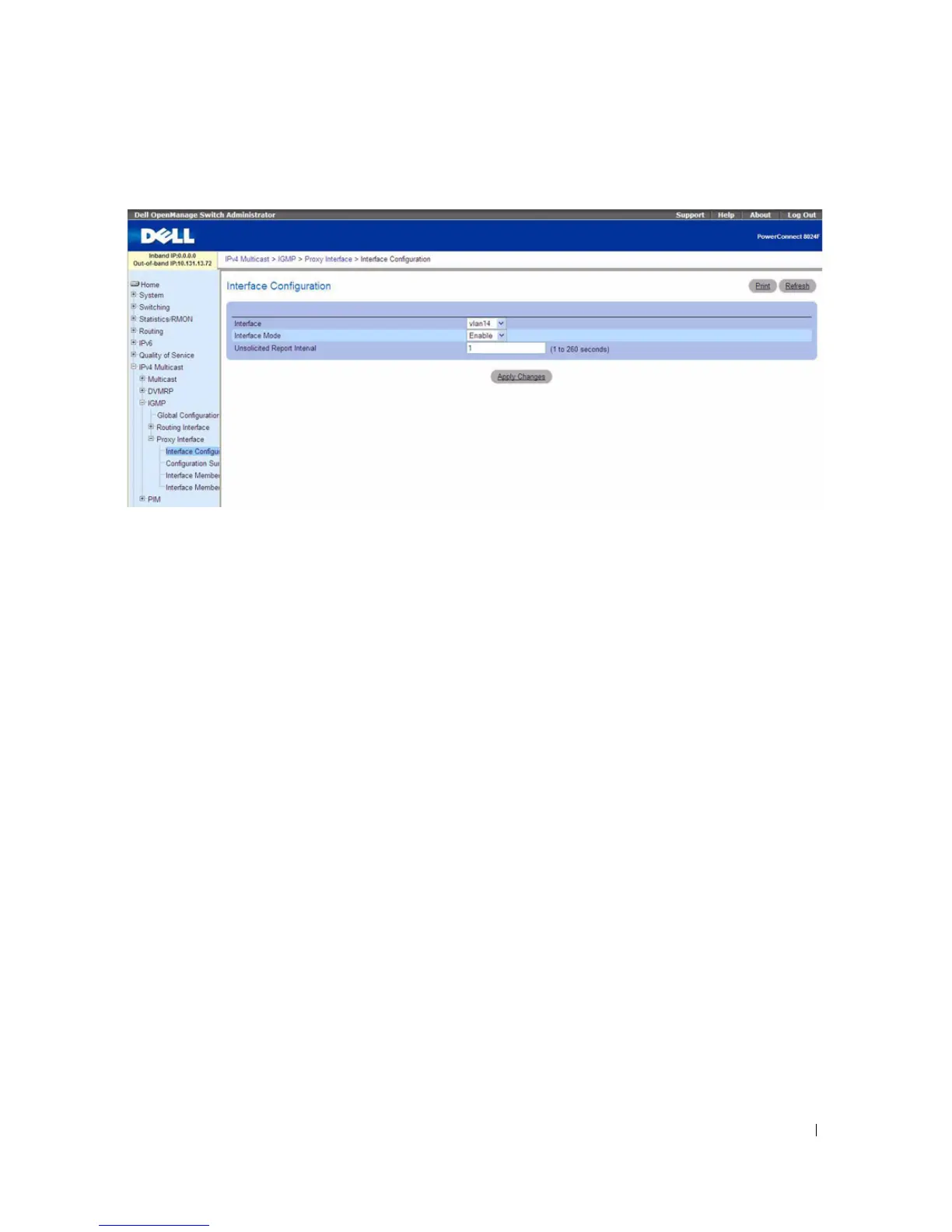

Figure 12-19. IGMP Proxy Interface Configuration
The IGMP Proxy Interface Configuration page contains the following fields:
•
Interface
— Select the port for which data is to be displayed or configured from the drop-down menu.
You must have configured at least one router interface before configuring or displaying data for an
IGMP Proxy interface and it should not be a IGMP routing interface. This field is configurable only
when interface mode is disabled.
•
Interface Mode
— Select Enable or Disable from the drop-down menu to set the administrative status
of IGMP Proxy on the selected interface. The default is Disable. Routing, IGMP, and Multicast global
admin modes should be enabled to enable IGMP Proxy interface mode.
•
Unsolicited Report Interval
— Enter the unsolicited time interval value in seconds. The Unsolicited
Report Interval is the time between repetitions of a host's initial report of membership in a group. Valid
values are from 1 to 260. The default value is 1.
Configuring IGMP Proxy Interface
1.
Open the
IGMP Proxy Interface Configuration
page.
2.
Select the interface to display from the
Interface
drop-down menu.
3.
Modify the remaining fields as needed.
4.
Click
Apply Changes
.
The proxy interface configuration is saved, and the device is updated.
Configuring IGMP Proxy Interface Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide:
• IGMP Proxy Commands
The following table summarizes the equivalent CLI commands for this feature.
