Configuring IP Multicast 743
To access this page, click IPv6 Multicast
→
MLD
→
Routing Interface
→
Interface Summary in the
navigation tree.

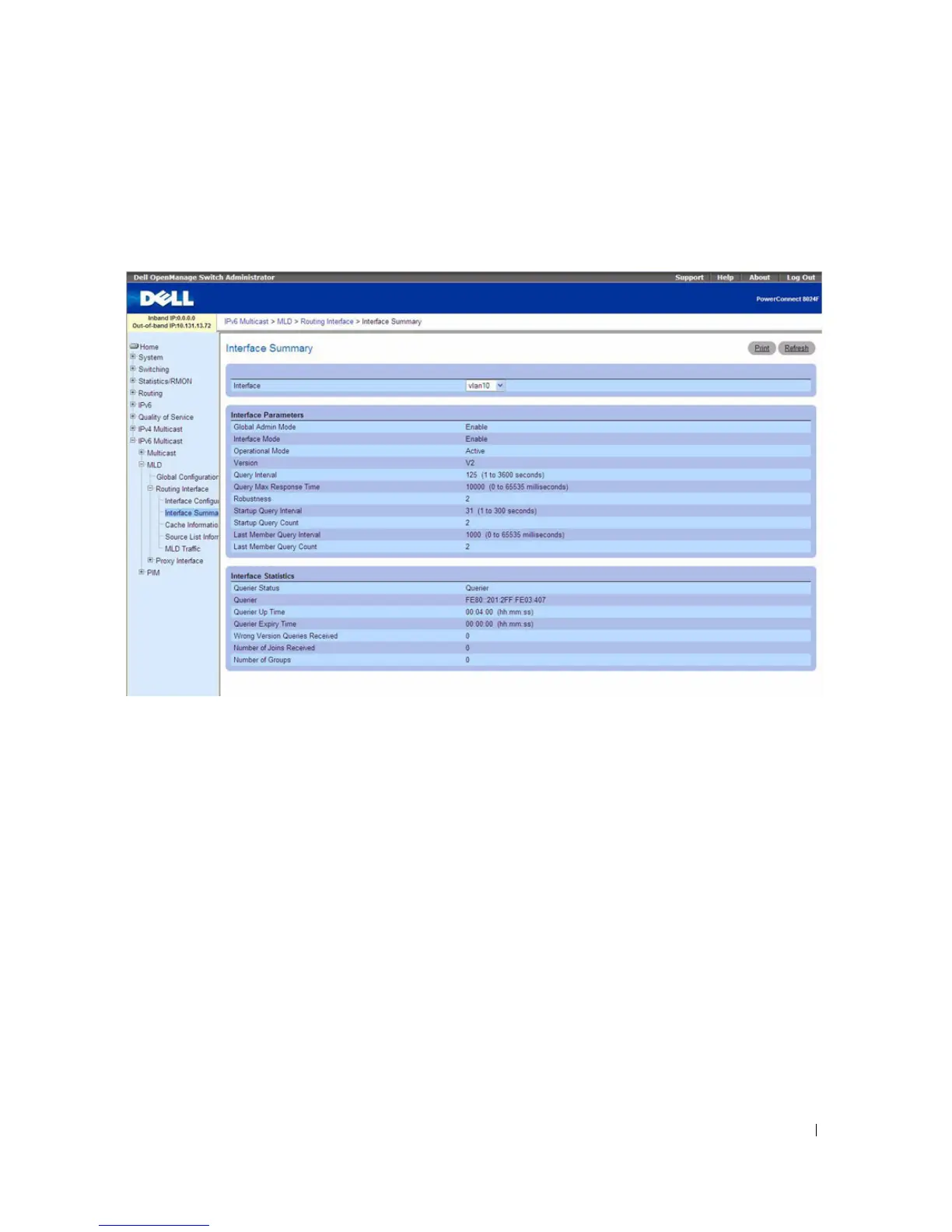

Figure 12-25. MLD Routing Interface Summary
The MLD Routing Interface Summary page contains the following fields:
•
Interface
— Select the VLAN for which data is to be displayed.
Interface Parameters
•
Global Admin Mode
— Displays whether MLD has been globally enabled or disabled.
•
Interface Mode
— Displays whether the administrative status of MLD on the selected interface is
enabled or disabled.
•
Operational Mode
— Displays the operational state of MLD on the selected interface, regardless of
the administrative setting.
•
Version
— Displays the version of MLD configured on the selected interface.
•
Query Interval
— Displays the interval in seconds at which MLD host-query packets are transmitted
on the selected interface.
•
Query Max Response Time
— Displays the maximum query response time in milliseconds (ms)
advertised in MLDv2 queries from the selected interface.
