748 Configuring IP Multicast

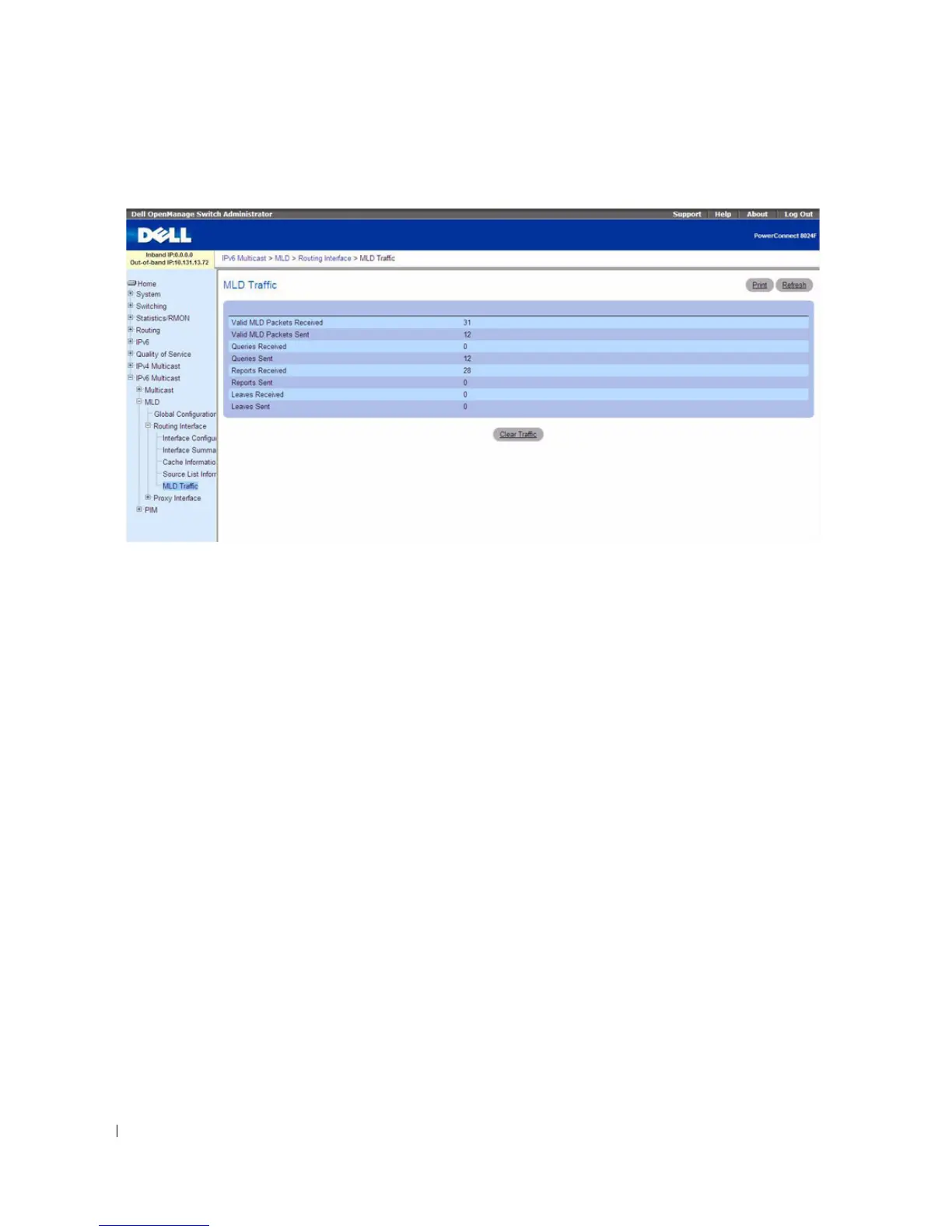

Figure 12-28. MLD Traffic
The MLD Traffic page contains the following fields:
•
Valid MLD Packets Received
— The total number of valid MLD packets received by the router.
•
Va l i d M L D Pa c k e t s S e n t
— The total number of valid MLD packets sent from the router
•
Querier Received
— The total number of MLD packets sent as the MLD querier.
•
Querier Sent
— The total number of MLD packets sent as the MLD querier.
•
Reports Received
— The total number of MLD reports received.
•
Reports Sent
— The total number of MLD reports received.
•
Leaves Received
— The total number of MLD Leave messages received.
•
Leaves Sent
— The total number of MLD Leave messages received.
Click Refresh to display the latest information from the router.
Click Clear Traffic to reset all counters to their default values.
Displaying IPv6 MLD Traffic Information Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• IPv6 Routing Commands
The following table summarizes the equivalent CLI commands for this feature.
