Dell PowerConnect 8024 User Guide

Configuring IP Multicast 765

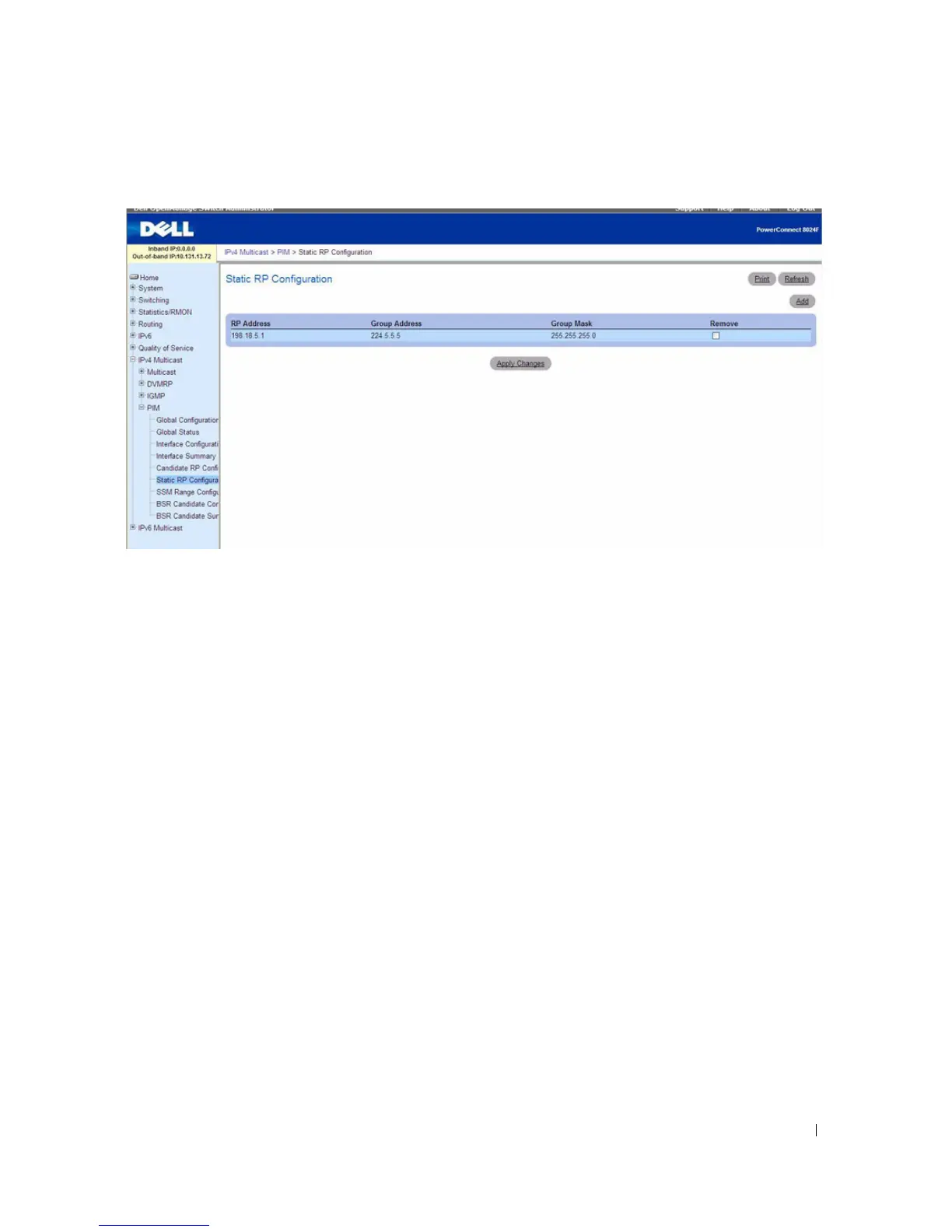

Figure 12-39. Static RP Configuration
The Static RP Configuration page contains the following fields:
• RP Address — Select the slot and port for which data is to be displayed. Slot 0 is the base unit.
•
Group Address — Specify the group address transmitted in Candidate-RP-Advertisements in
Prefix/Length format.
•
Group Mask — (IPv4) The Group Mask of the RP to be created or deleted.
•
Prefix Length — (IPv6) Specify the group address prefix length transmitted in Candidate-RP-
Advertisements to fully identify the scope of the group which the router will support if elected as a
Rendezvous Point.
•
Remove — Select this box to remove the specified static RP IP Address for the PIM router.
After entering all required data, click Apply Changes to configure an interface as a PIM candidate.
Adding a Static RP
Use the Add Static RP page to add the specified static rendezvous point (RP) for the PIM router.
1.
Open the Static RP Configuration page.
2. Click Add .
The
Add Static RP page displays.
