2.5 Oxygen Concentration is High
Chapter 2: Troubleshooting Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 2 - 59
2

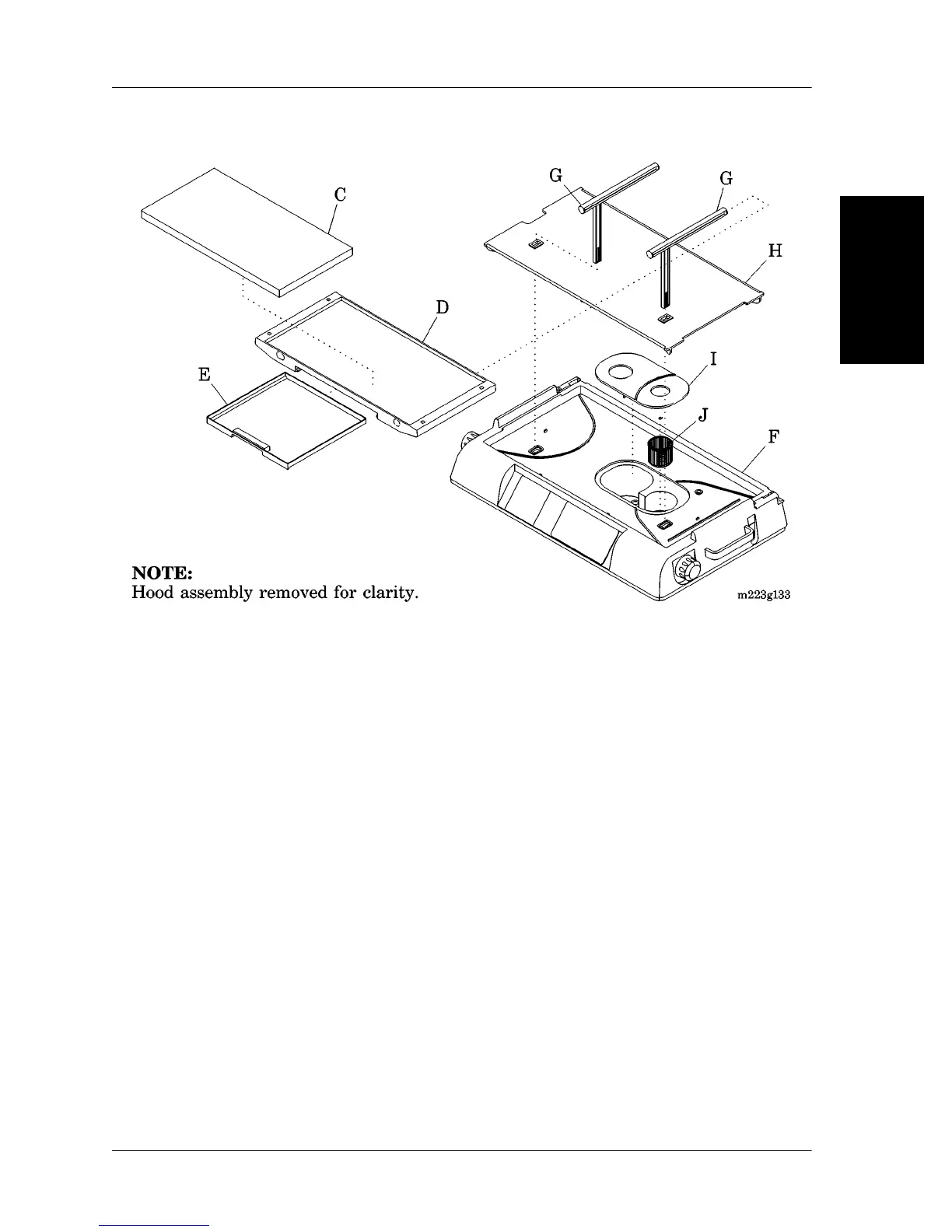

Figure 2-22. Shell Assembly
c. Remove the two lift bars (G) and the deck (H) from the shell
assembly (F).
d. Remove the scroll cover (I) from the shell assembly (F).
e. Check the impeller assembly (J).
The impeller assembly (J) is clean.
Yes No
↓→Clean the impeller assembly (J). If this solves the problem,
go to “Final Actions” on page 2-24. Otherwise, go to step 3.
3. Replace the impeller assembly (J) (refer to procedure 4.8 on page
4-22). This solves the problem.
Yes No
↓→For assistance, call Technical Support at (800) 437-2437.
4. Go to “Final Actions” on page 2-24.
