4.13 Access Door and Access Door Pivot Hinges
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 38 Isolette® Infant Incubator (Model C2000) Service Manual
4.13 Access Door and Access Door Pivot Hinges
Tools required: Phillips head screwdriver
Removal
1. Release the access door latch (A) (see figure 4-17 on page 4-38).

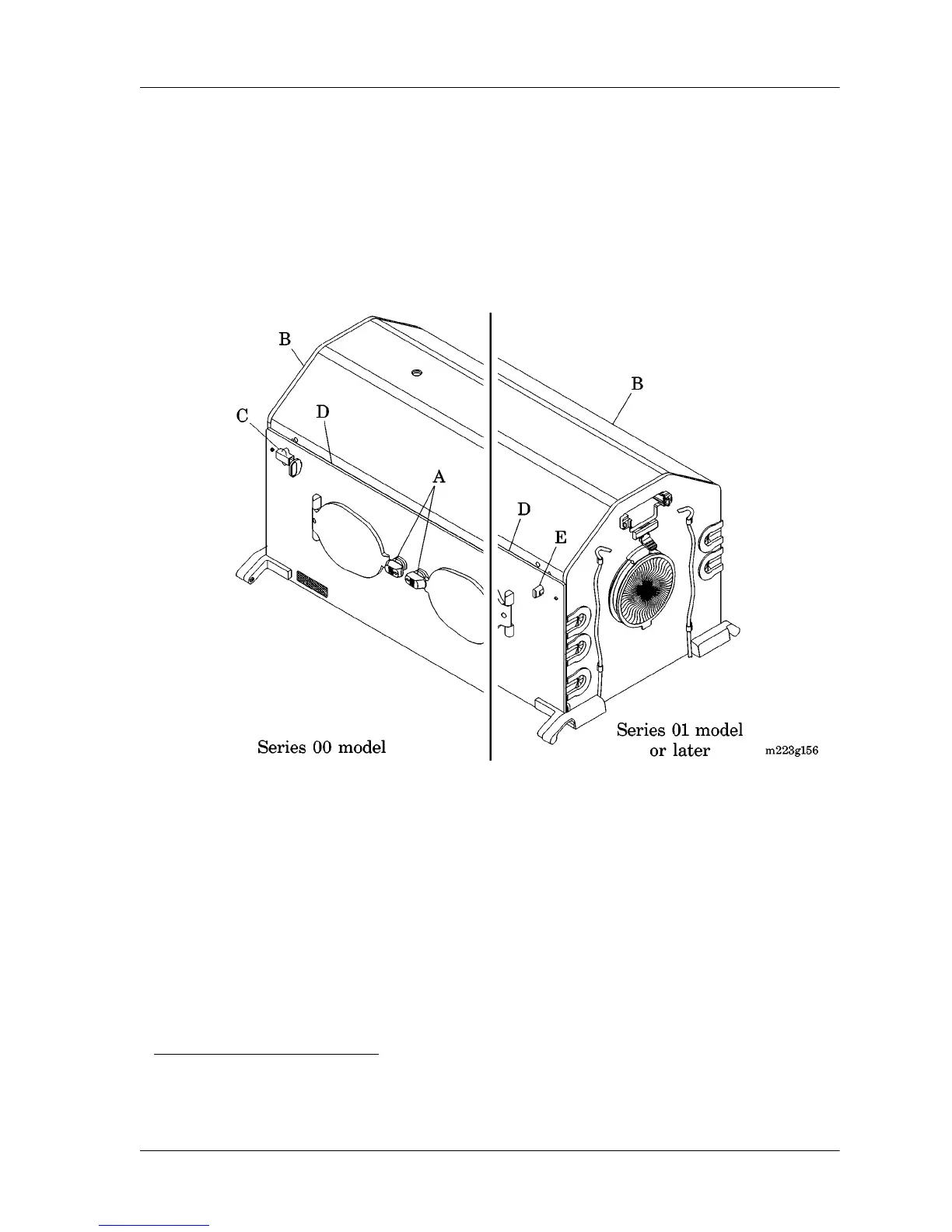

Figure 4-17. Hood Assembly
2. On a unit with a Series 00 hood assembly (B), slide the blue slide
access panel latches (C), and open the access panel (D).
or
On a unit with a hood assembly (B) later than Series 00, rotate the
access panel pawl latch knobs (E), and open the access panel (D).
3. Pivot the access panel (D) to the full-open position so it hangs
straight down.
4. Remove the four Nylok®
1
screws (F) that secure the two access
door pivot hinges (G) to the access panel (D) (see figure 4-18 on
page 4-39). Discard the four Nylok® screws (F).
1. Nylok® is a registered trademark of Nylok Fastener Corporation.
