Dräger Isolette C2000 Service Manual

4.13 Access Door and Access Door Pivot Hinges
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 39
4

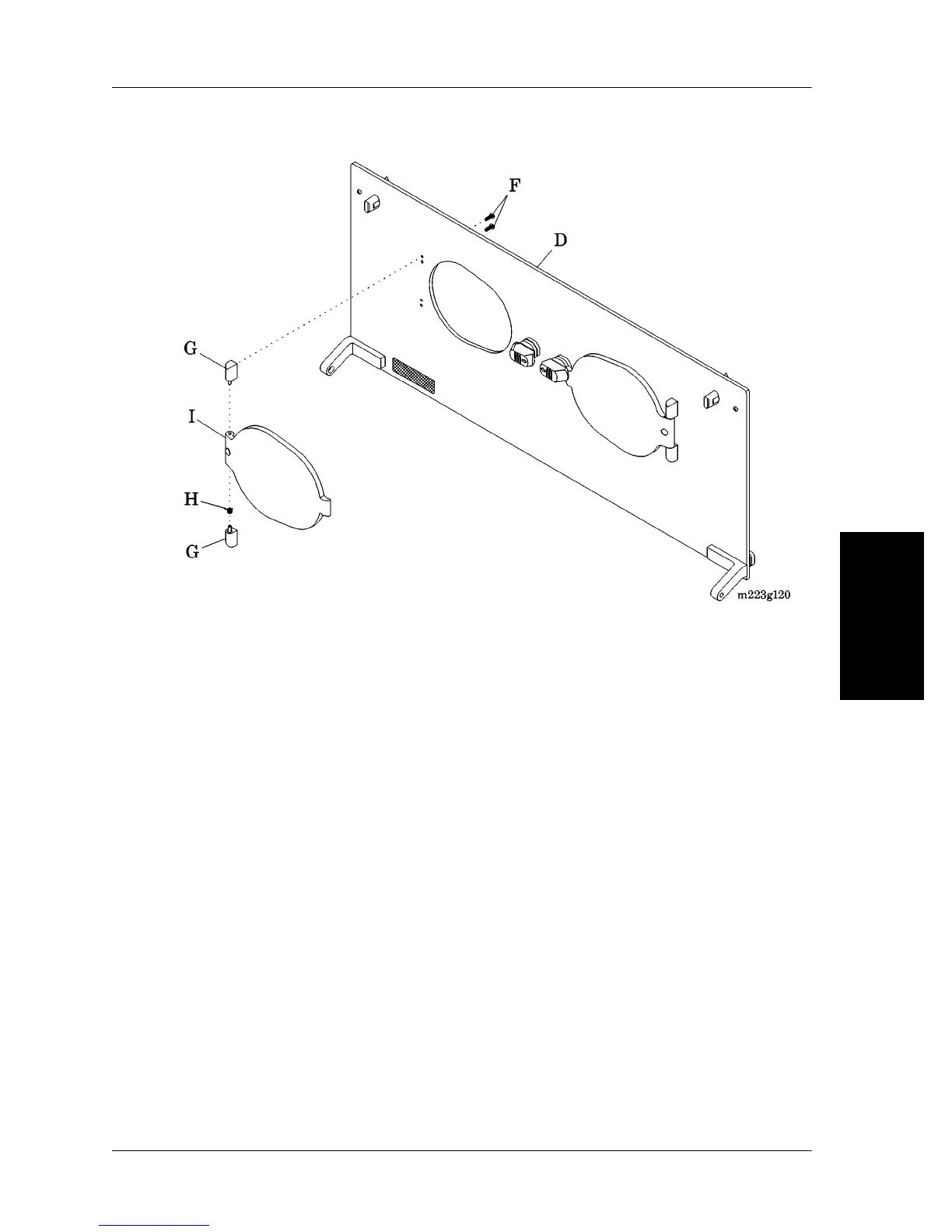

Figure 4-18. Access Door Pivot Hinge
5. Remove the two access door pivot hinges (G), the torsion spring
(H), and the access door (I) from the access panel (D).
Replacement
1. Perform one of the following:
• On a left-hand access door (I), install the torsion spring (H) on the
lower access door pivot hinge (G).
• On a right-hand access door (I), install the torsion spring (H) on the
upper access door pivot hinge (G).
2. Install the two access door pivot hinges (G) on the access door (I).
