4.27 Access Door Gasket
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 76 Isolette® Infant Incubator (Model C2000) Service Manual
4.27 Access Door Gasket
Tools required: None
Removal
1. Press the access door release (A), and open the access door (B)
(see figure 4-35 on page 4-76).

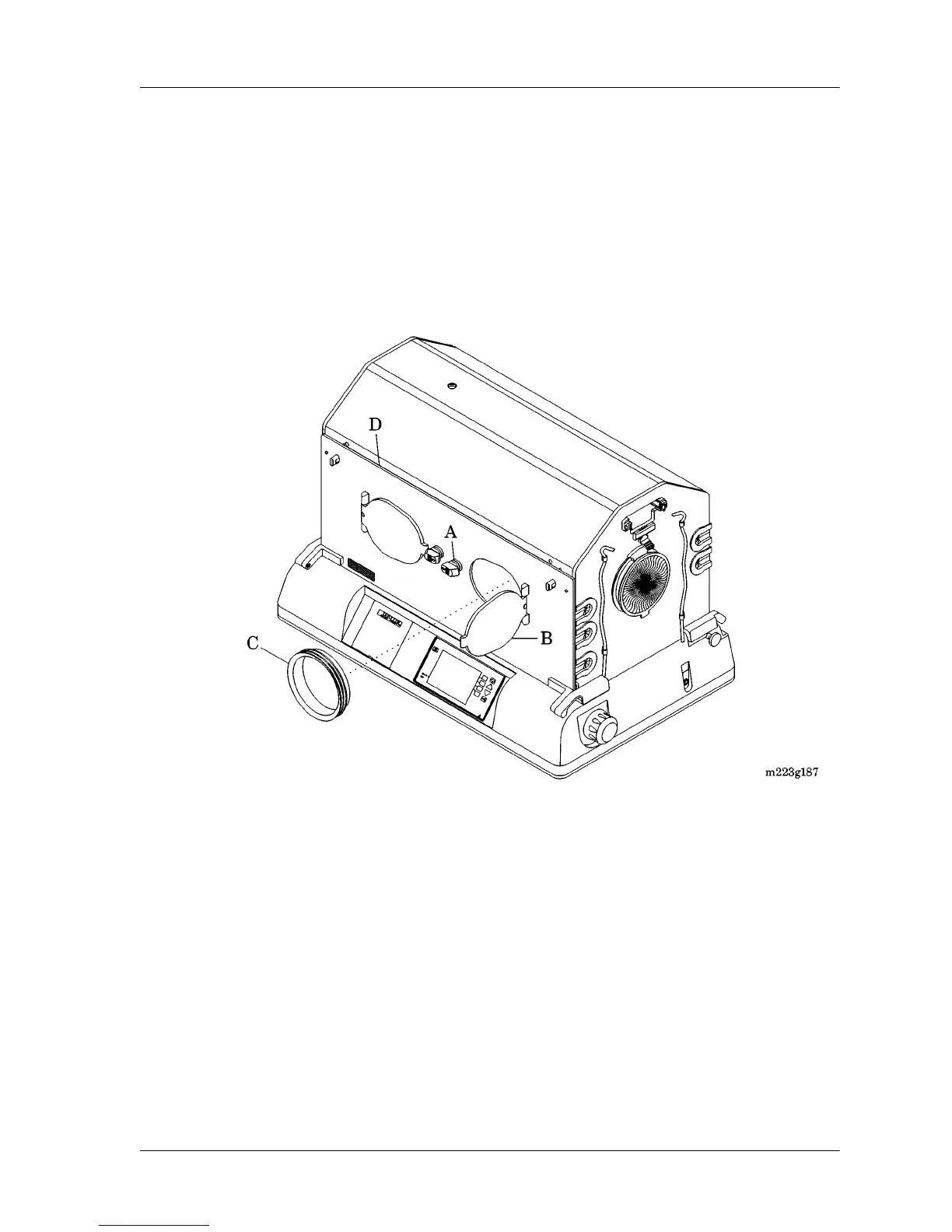

Figure 4-35. Access Door Gasket
2. Remove the access door cuff from the access door gasket (refer to
procedure 4.26 on page 4-74).
3. Carefully separate the access door gasket (C) from its opening in
the access panel (D), and remove it from the unit.
Replacement
1. Perform the removal procedure in reverse order.
2. To ensure proper operation of the Isolette® Infant Incubator,
perform the “Function Checks” on page 2-6.
