4.29 Heat Shield Latch
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 80 Isolette® Infant Incubator (Model C2000) Service Manual
4.29 Heat Shield Latch
Tools required: Phillips head screwdriver
Removal
1. On a unit with a Series 00 hood assembly (A), slide the blue slide
access panel latches (B), and open the access panel (C) (see figure
4-38 on page 4-80).
or
On a unit with a hood assembly (A) later than Series 00, rotate the
access panel pawl latch knobs (D), and open the access panel (C).

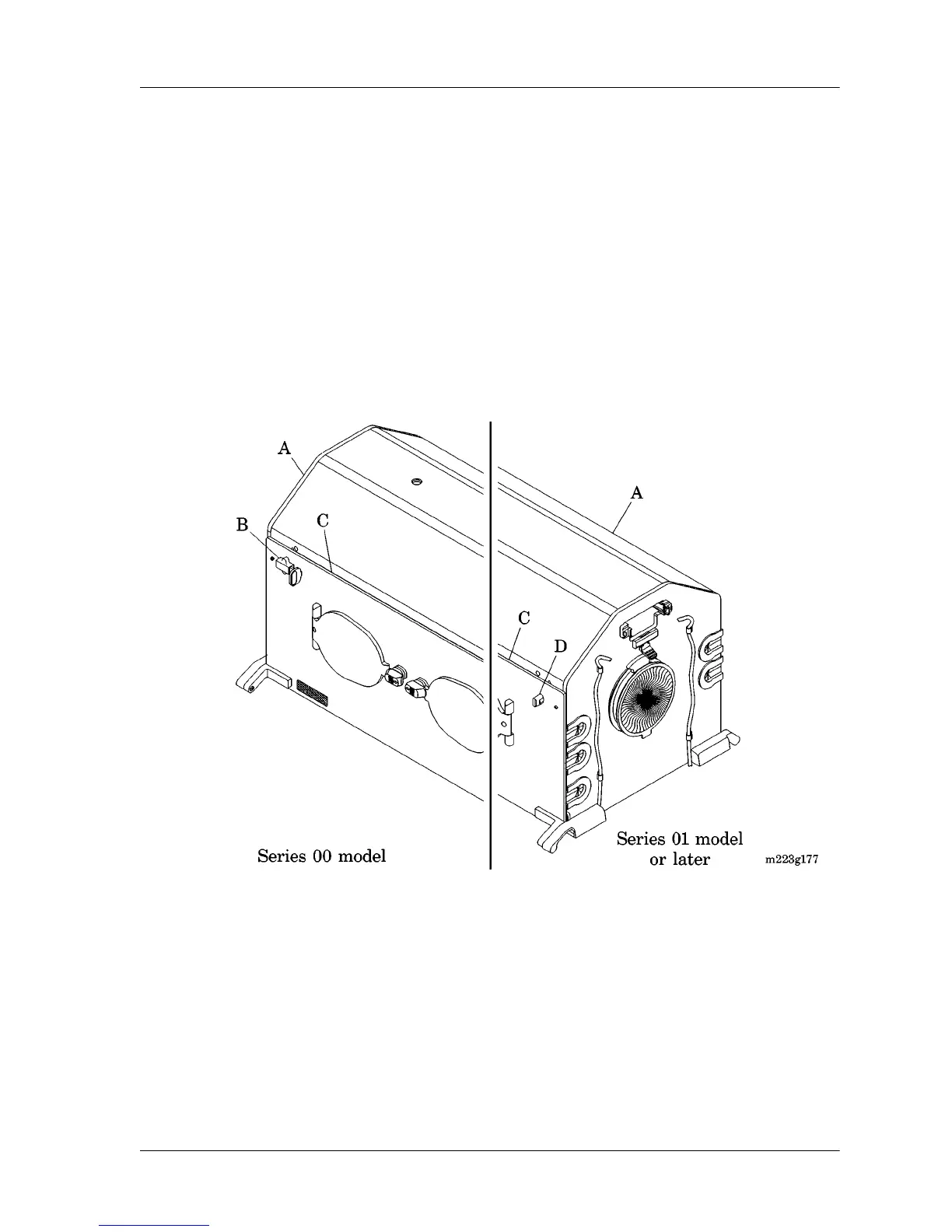

Figure 4-38. Hood Assembly
2. Pivot the access panel (C) to the full-open position so it hangs
straight down.
3. Release the heat shield (E) from the access panel (C) by pressing
on the two heat shield latches (F) (see figure 4-39 on page 4-81).
