2.30 Mattress Tray Is Damaged
Chapter 2: Troubleshooting Procedures
Page 2 - 92 Isolette® Infant Incubator (Model C2000) Service Manual
2.30 Mattress Tray Is Damaged
1. Perform the following:
a. On a unit with a Series 00 hood assembly, slide the blue slide
access panel latches, and open the access panel (see figure 2-2
on page 2-11).
or
On a unit with a hood assembly later than Series 00, rotate the
access panel pawl latch knobs, and open the access panel.
b. Pivot the access panel to the full-open position so it hangs
straight down.
c. Slide out the mattress tray (A) to the fully-extended position (see
figure 2-31 on page 2-92).

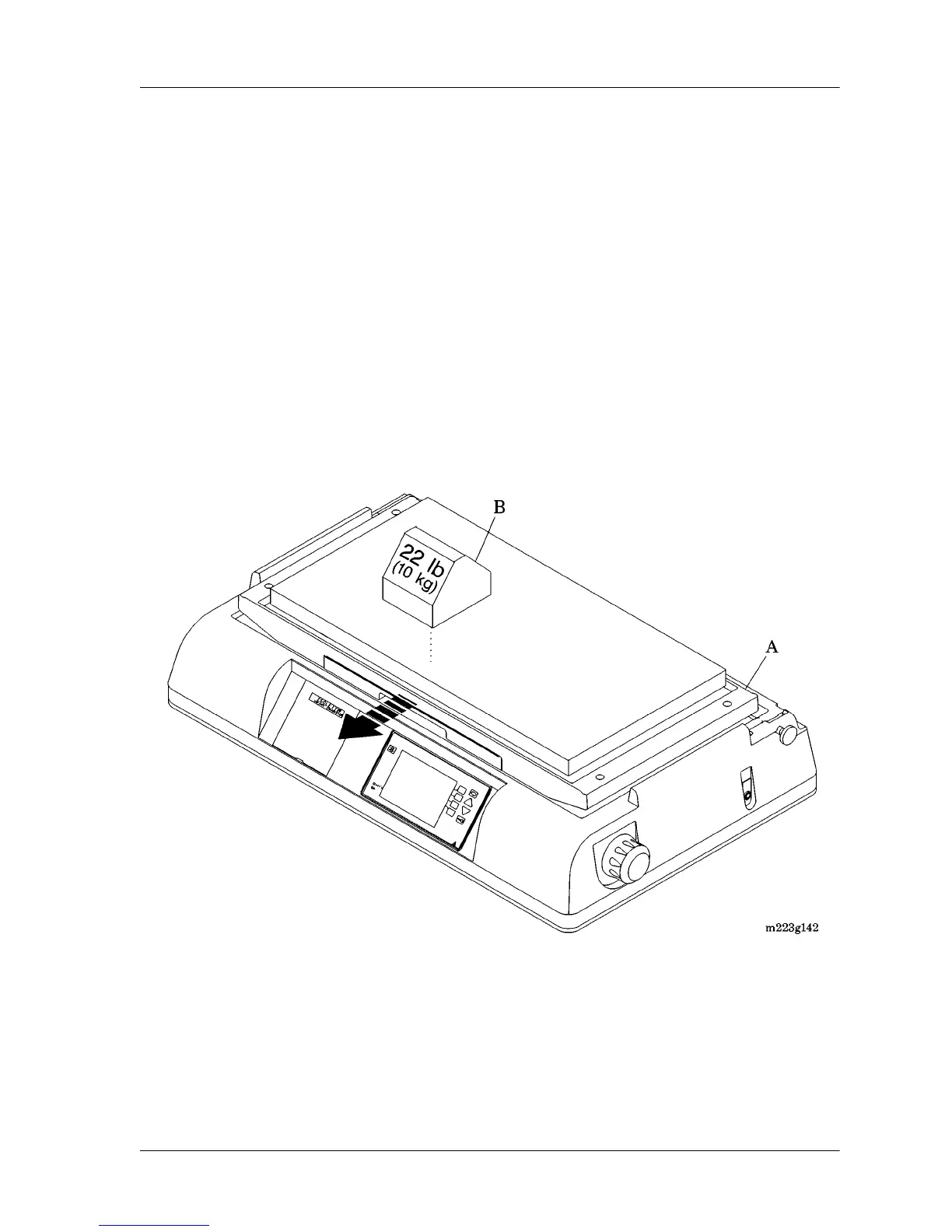

Figure 2-31. Mattress Tray
d. Gradually load a calibrated weight of 22 lb (10 kg) (B) near the
front-center of the extended mattress tray (A), ensuring a firm
infant platform.
The mattress tray (A) is a firm platform for an infant.
To Next Page
