2.21 Communication Between the Sensor Module and the Controller Fails
Chapter 2: Troubleshooting Procedures
Page 2 - 78 Isolette® Infant Incubator (Model C2000) Service Manual
2.21 Communication Between the Sensor Module and the
Controller Fails
1. Perform the following:
a. Remove the two wingnuts (A) and the two flat washers (B) that
secure the controller assembly (C) in the unit (see figure 2-25 on
page 2-78).

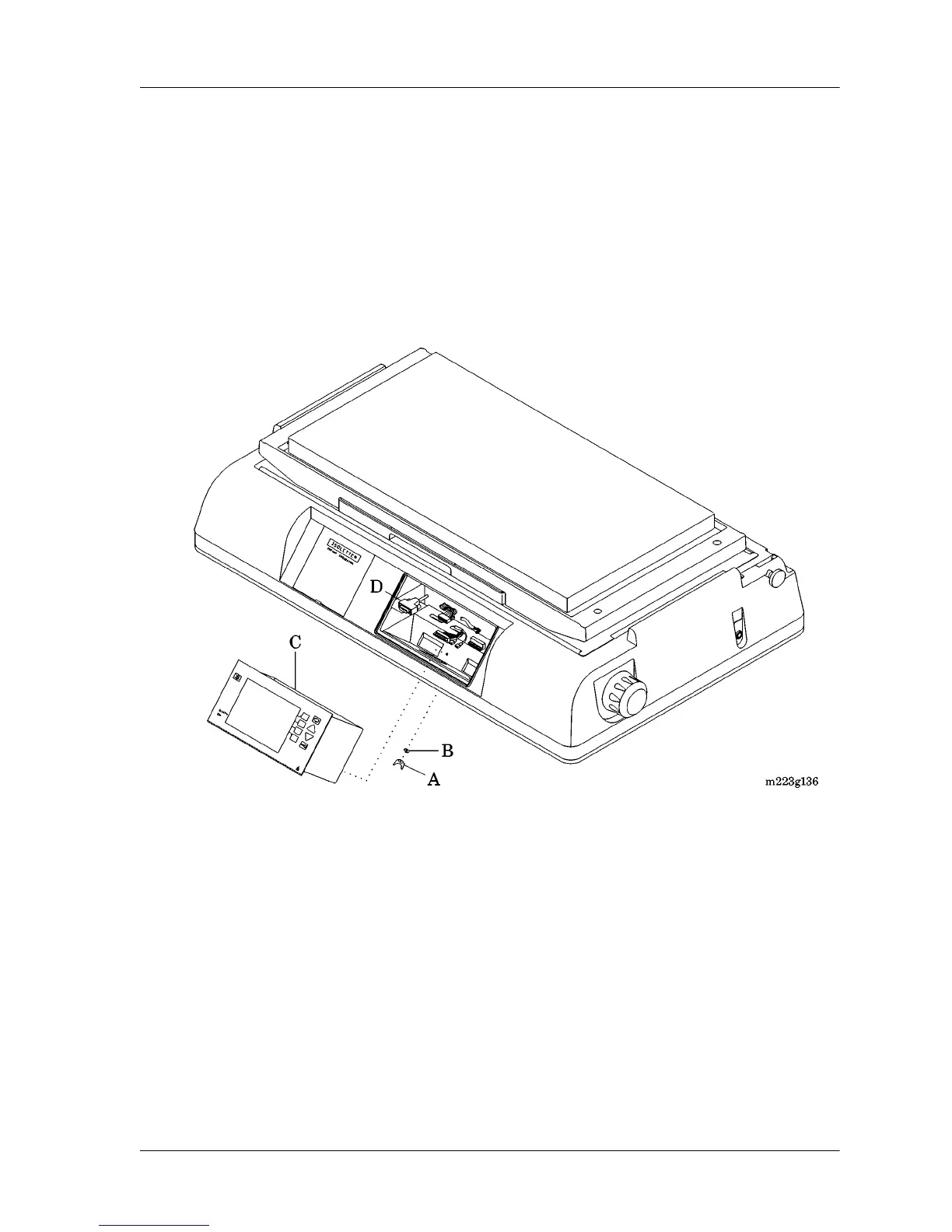

Figure 2-25. Controller Assembly
b. Slide the controller assembly (C) from the unit.
c. Check the connection of the sensor module-to-controller cable
assembly (D) at the controller assembly (C).
The sensor module-to-controller cable assembly (D) is securely
connected at the controller assembly (C).
Yes No
↓→Securely connect the sensor module-to-controller cable
assembly (D) to the controller assembly (C). If this solves
the problem, go to “Final Actions” on page 2-24.
Otherwise, go to step 2.
