4.12 Access Door Latch
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 35
4
4.12 Access Door Latch
Tools required: Phillips head screwdriver
Removal
1. On a unit with a Series 00 hood assembly (A), slide the blue slide
access panel latches (B), and open the access panel (C) (see figure
4-15 on page 4-35).
or
On a unit with a hood assembly (A) later than Series 00, rotate the
access panel pawl latch knobs (D), and open the access panel (C).

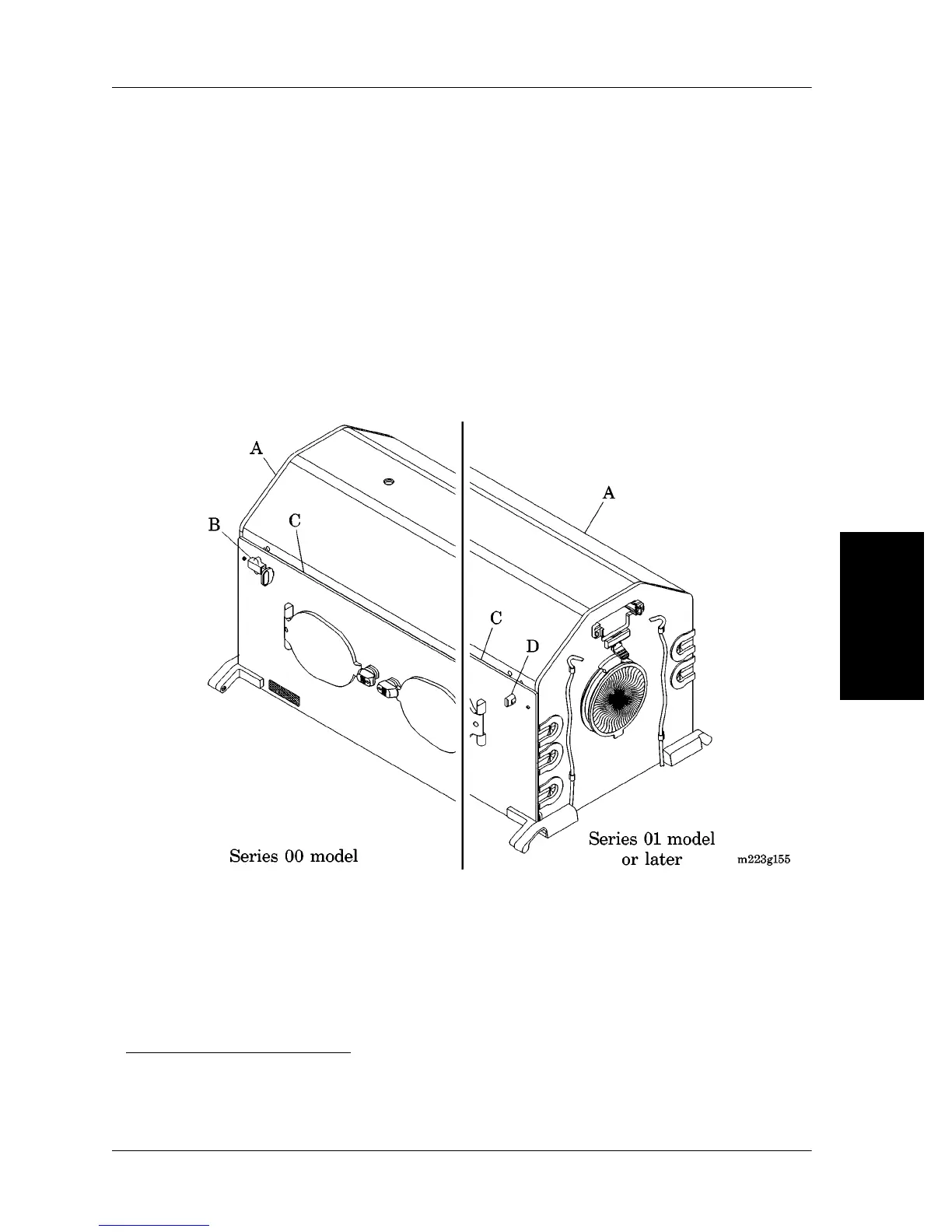

Figure 4-15. Hood Assembly
2. Pivot the access panel (C) to the full-open position so it hangs
straight down.
3. Remove the two Nylok®
1
screws (G) that secure the access door
latch mount (E) and access door latch (F) to the access panel (C)
(see figure 4-16 on page 4-36). Discard the two Nylok® screws (G).
1. Nylok® is a registered trademark of Nylok Fastener Corporation.
