7.1 Weighing Scale
Chapter 7: Accessories
Isolette® Infant Incubator (Model C2000) Service Manual Page 7 - 5
7
7.1 Weighing Scale
Tools required: None
Installation
1. On a unit with a Series 00 hood assembly (A), slide the blue slide
access panel latches (B), and open the access panel (C) (see figure
7-1 on page 7-5).
or
On a unit with a hood assembly (A) later than Series 00, rotate the
access panel pawl latch knobs (D), and open the access panel (C).

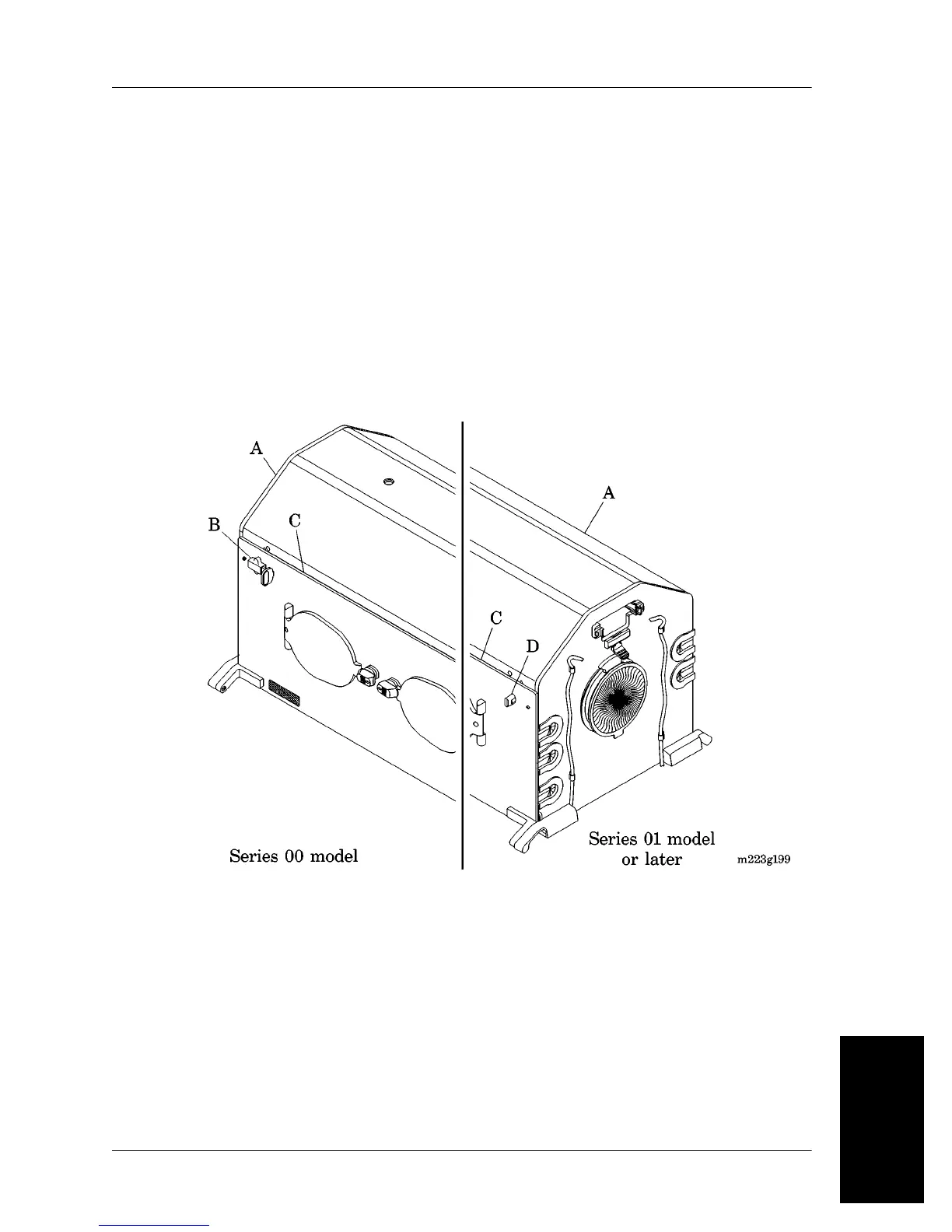

Figure 7-1. Hood Assembly
2. Pivot the access panel (C) to the full-open position so it hangs
straight down.
3. Remove the mattress (E) from the mattress tray (F) (see figure 7-2
on page 7-6).
4. Position the scale platform (G) so that its cable assembly (H) is to
the right-hand side of the hood assembly (A), and place the scale
platform (G) on the mattress tray (F).
