4.24 Access Panel Pawl Latch and Knob Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 71
4

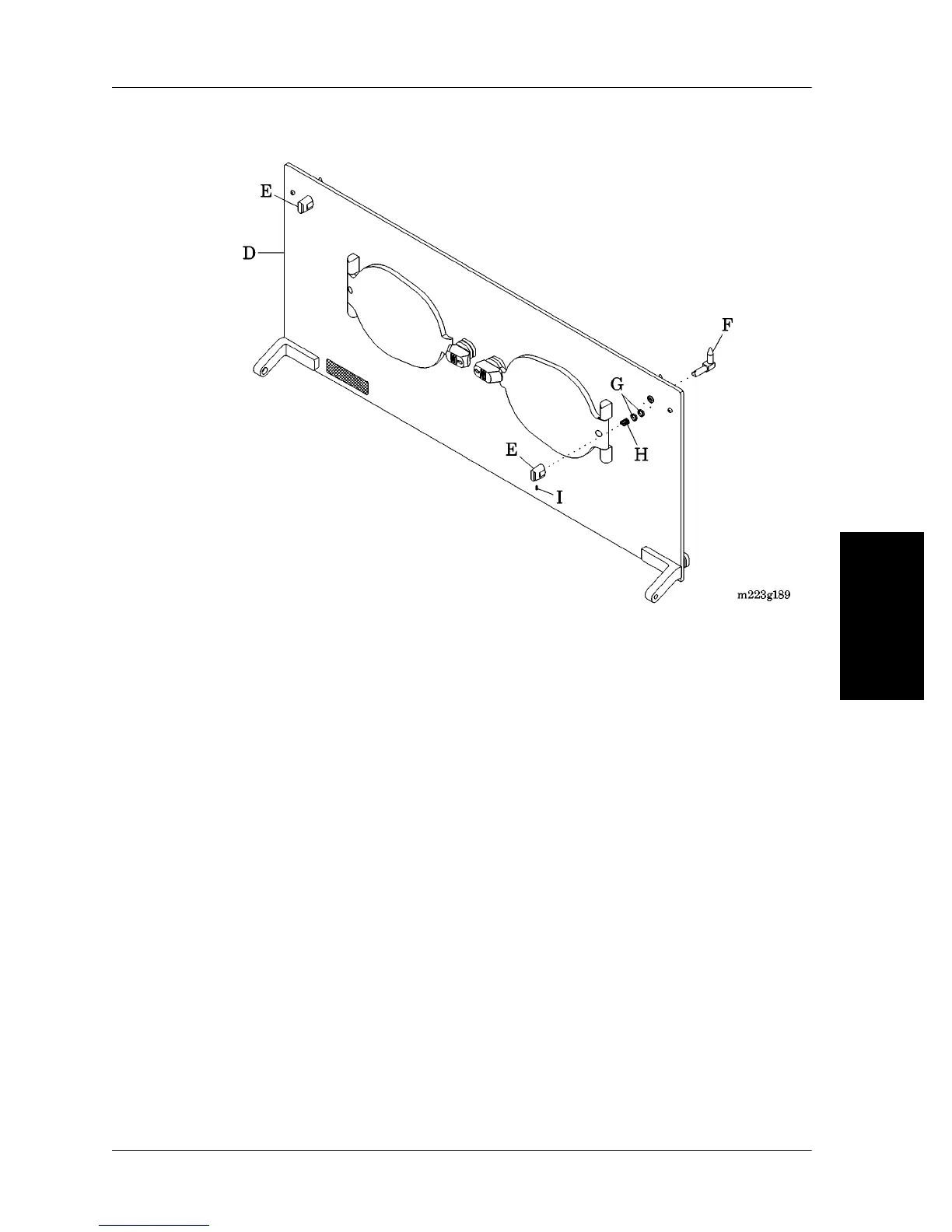

Figure 4-32. Access Panel Knob and Latch Assembly
5. Twist and pull the pawl latch (F) and the pawl latch knob (E) in
opposite directions until they separate.
6. Remove the pawl latch (F), the pawl latch knob (E), the two spacers
(G), the compression spring (H), and the spring pin (I) from the
access panel (D).
Replacement
1. From the inside of the access panel (D), slide the stem of the pawl
latch (F) into the access panel (D).
2. From the outside of the access panel (D), perform the following:
a. Install the two spacers (G) and the compression spring (H) onto
the stem of the pawl latch (F).
b. Install the pawl latch knob (E) onto the stem of the pawl latch (F).
c. Insert the spring pin (I) into its opening in the pawl latch knob (E)
and the pawl latch (F).
d. Place a clean cloth over the spring pin (I), and use pliers to press
the spring pin (I) firmly into the pawl latch knob (E) to secure it to
