6.6 Disassembly and Assembly for Cleaning
Chapter 6: General Procedures
Page 6 - 28 Isolette® Infant Incubator (Model C2000) Service Manual
6.6 Disassembly and Assembly for Cleaning
Tools required: None
Disassembly
NOTE:
For routine cleaning, do not separate the hood/base assembly from the
pedestal stand. If separation is necessary, refer to “Installation and Set-
up” on page 6-13, and perform the “Assembling” procedure in reverse
order.
1. Disconnect the sensor module assembly (A) from the unit (see
figure 6-7 on page 6-28).

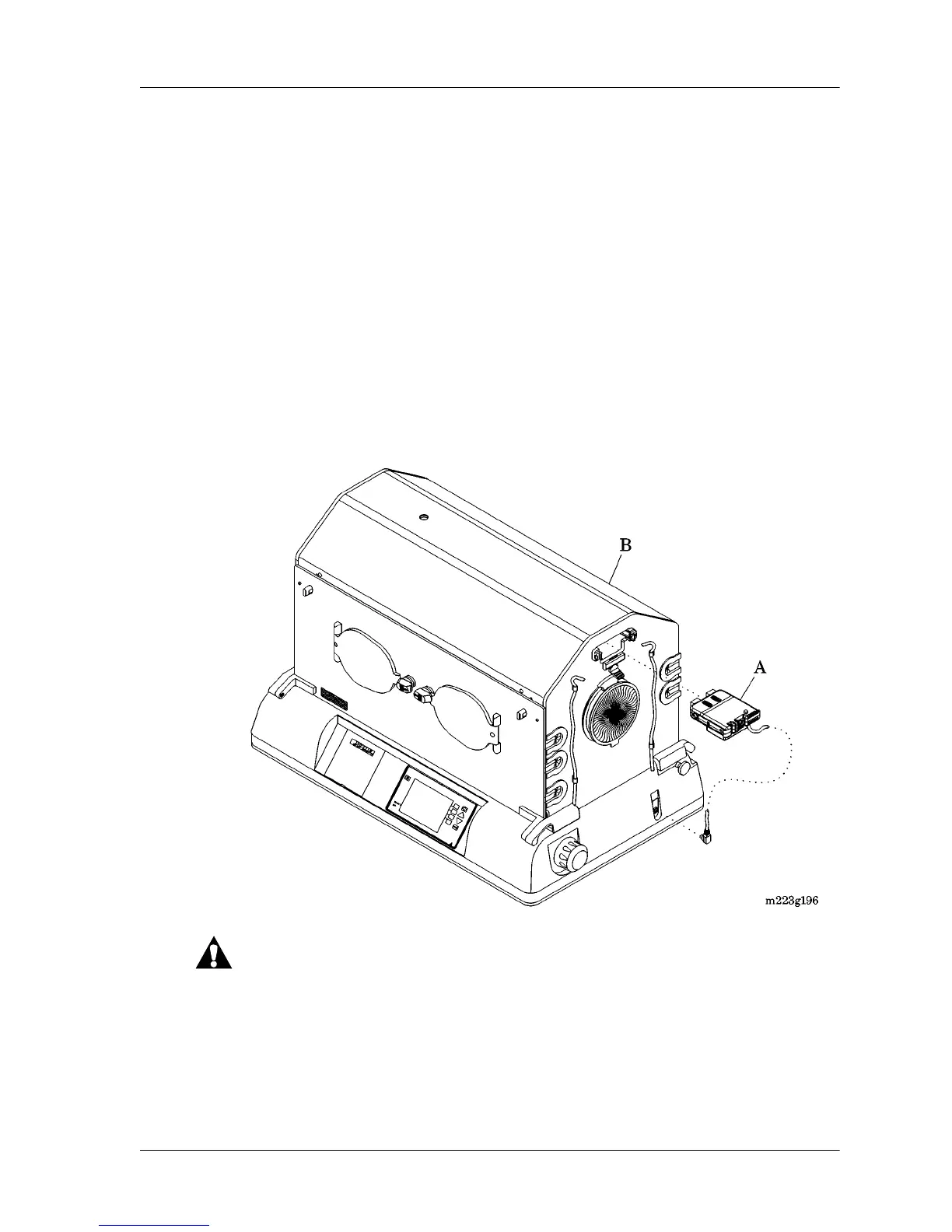

Figure 6-7. Hood Assembly
CAUTION:
Before lifting the incubator hood for cleaning, ensure that all mounted
accessories have been removed to prevent possible interference with
the raised hood.
2. Remove all mounted accessories from the unit.
To Next Page
