4.18 Power Supply P.C. Board Assembly and Interface P.C. Board Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 49
4
4.18 Power Supply P.C. Board Assembly and Interface P.C. Board
Assembly
Tools required: Phillips head screwdriver
Removal
1. Remove the controller assembly from the unit (refer to procedure
4.4 on page 4-11).
2. Remove the EL display front panel assembly from the controller
assembly (refer to procedure 4.14 on page 4-41).
3. Remove the interface/power supply module from the controller
assembly (refer to procedure 4.17 on page 4-47).
4. Remove the 13 screws (A) and the 13 cup washers (B) that secure
the power supply P.C. board assembly (C) to the interface P.C.
board assembly (D) (see figure 4-23 on page 4-49).

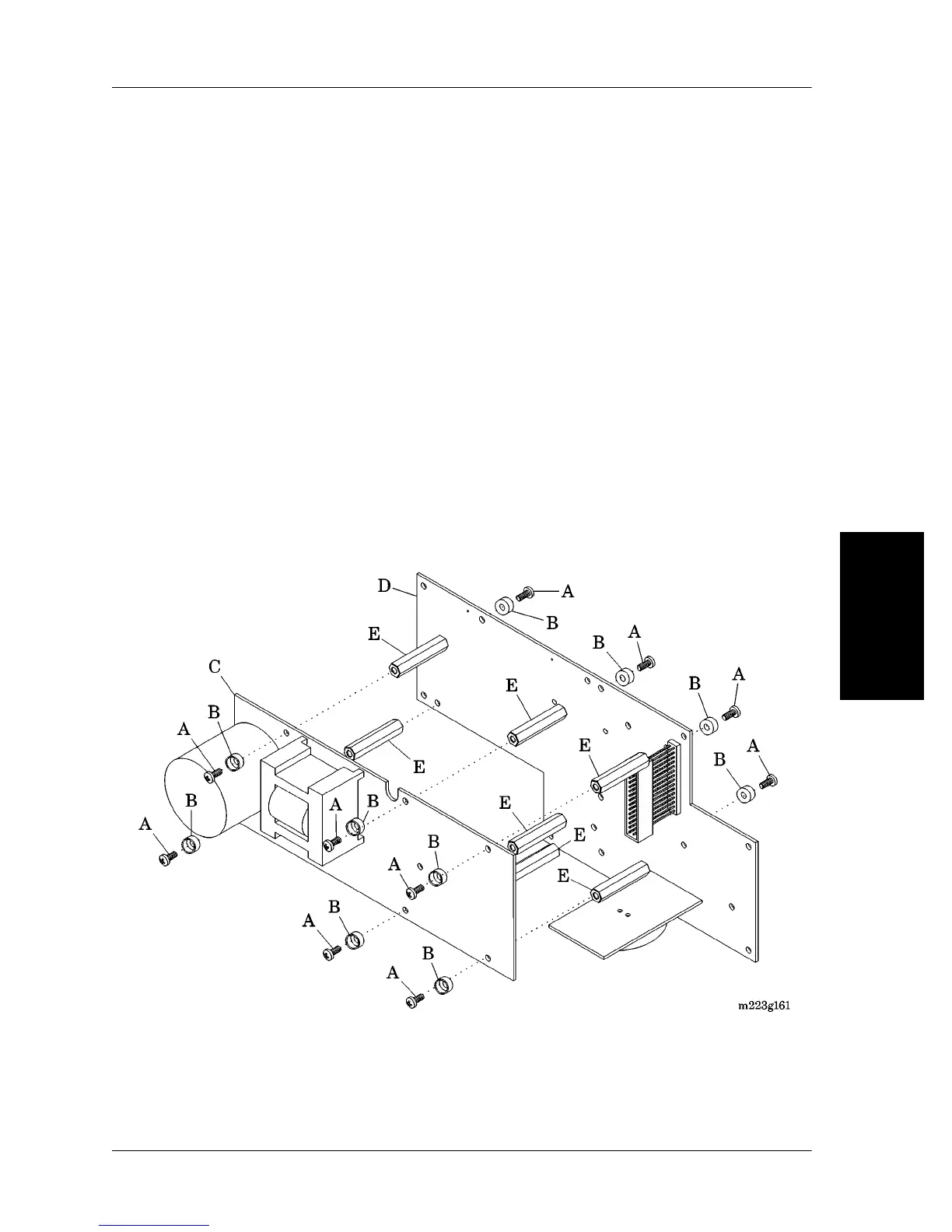

Figure 4-23. Interface/Power Supply Module
