4.2 Sensor Module Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 6 Isolette® Infant Incubator (Model C2000) Service Manual
4.2 Sensor Module Assembly
Tools required: None
Removal
1. Disconnect the sensor module assembly (A) from the shell
assembly (B) (see figure 4-2 on page 4-6).

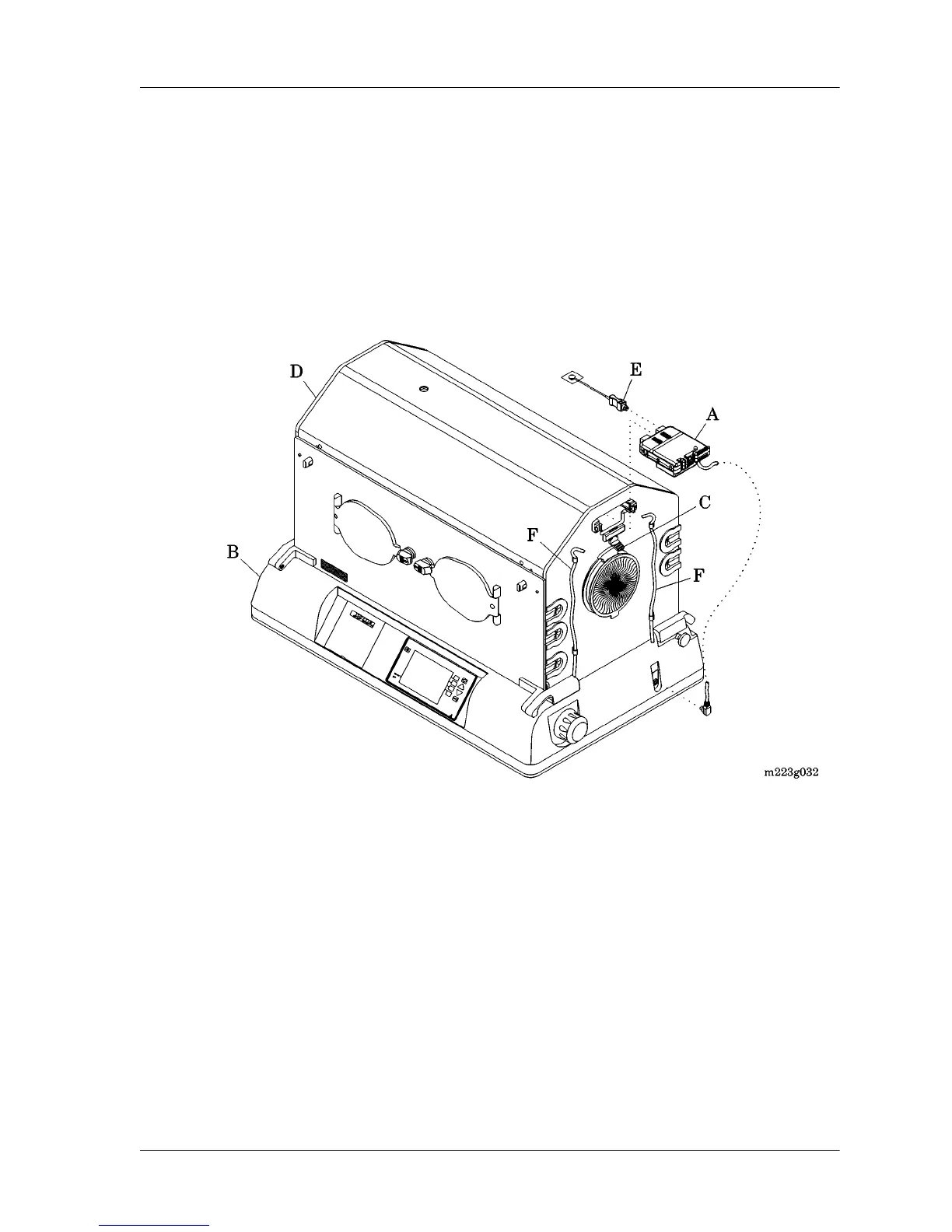

Figure 4-2. Sensor Module
2. If the unit is equipped with a sensor module locking assembly (C),
lower it.
3. Withdraw the sensor module assembly (A) from the hood assembly
(D) until it stops.
4. Pull out the clip on the left side of the sensor module assembly (A),
and slide the sensor module assembly (A) out of the hood assembly
(D).
5. If necessary, disconnect any skin temperature probes (E) from the
sensor module assembly (A) (refer to procedure 4.1 on page 4-5).
