4.10 Access Panel
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 31
4

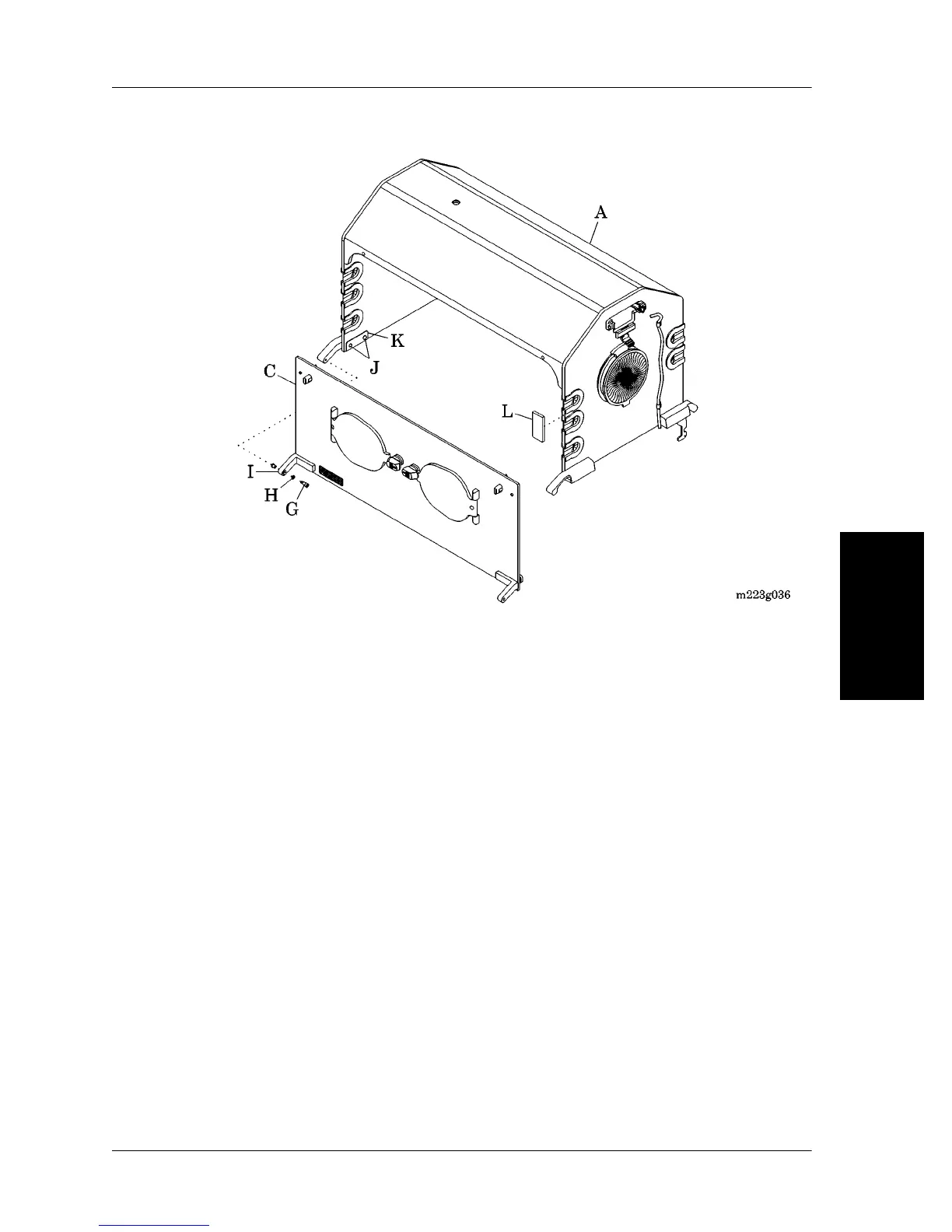

Figure 4-13. Access Panel
7. Remove the access panel (C) from the hood assembly (A).
Replacement
1. Install the two shoulder screws (G) and the two flat washers (H) to
secure the access panel hinges (I) to the hood assembly (A).
2. Adjust the blue slide access panel latches or the access panel pawl
latch knobs (see “Adjustment” on page 4-32).
3. Slide the two mattress tilt bars (E) into the main deck (F) (see figure
4-12 on page 4-30).
4. Install the mattress, the mattress tray, and the x-ray tray on the unit.
5. Close and latch the access panel (C).
6. To ensure proper operation of the Isolette® Infant Incubator,
perform the “Function Checks” on page 2-6.
