4.3 Oxygen Sensor Cell
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 9
4
4.3 Oxygen Sensor Cell
Tools required: Phillips head screwdriver
Removal
1. Remove the sensor module assembly from the unit (refer to
procedure 4.2 on page 4-6).
2. Remove the two screws (A) that secure the mounting plate (B) to the
bottom of the sensor module assembly (C) (see figure 4-3 on page
4-9).

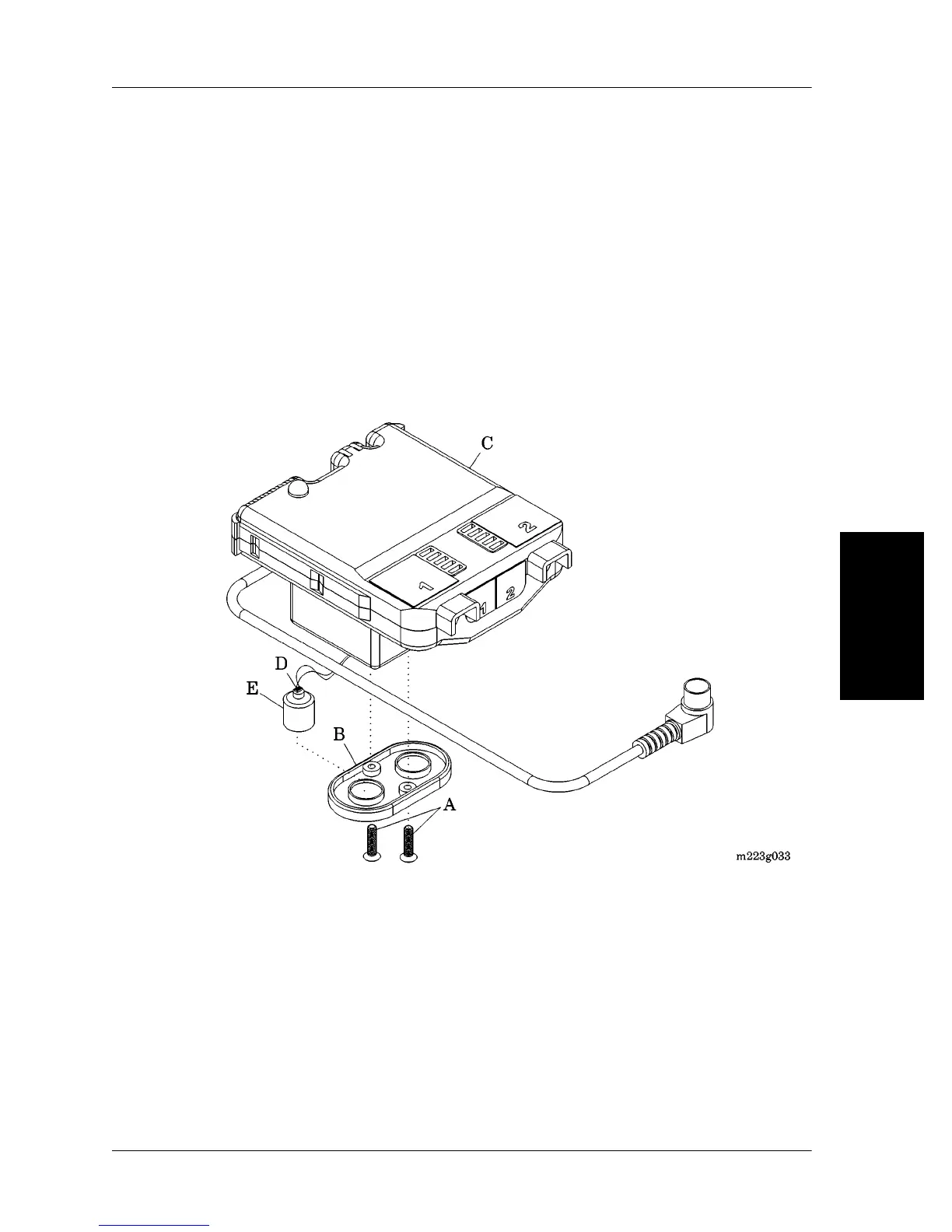

Figure 4-3. Oxygen Sensor Cell
3. Remove the mounting plate (C) from the sensor module assembly
(A).
4. Disconnect the leads (D) from the two oxygen sensor cells (E).
