4.22 AC Wiring Harness Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 62 Isolette® Infant Incubator (Model C2000) Service Manual
c. Carefully remove the shell assembly (C) from the shell bottom
(B), and place it upside down on a flat, padded surface.
11. Remove the AC wiring harness assembly (J) from the cord retaining
clips (K) inside the shell assembly (C) (see figure 4-28 on page
4-62).

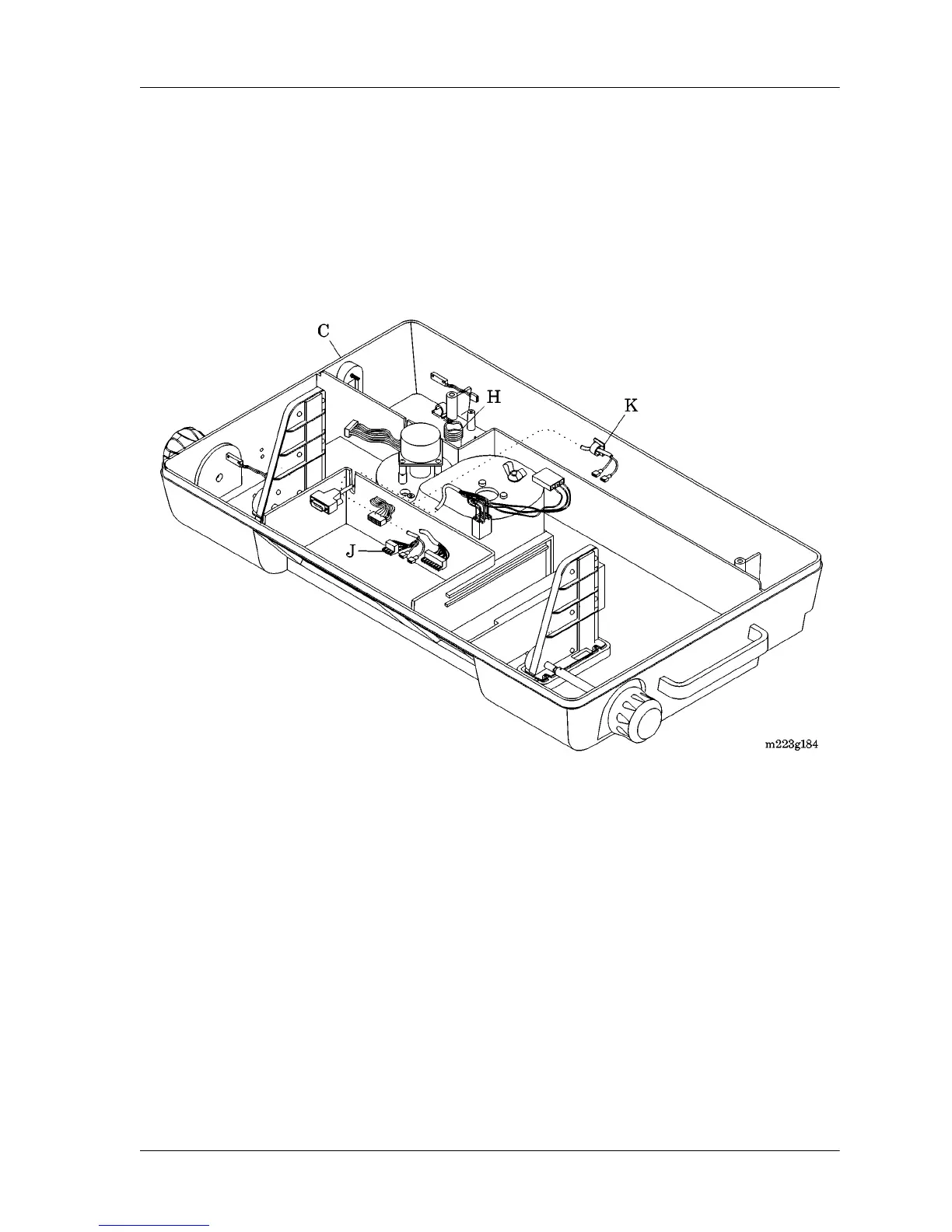

Figure 4-28. AC Wiring Harness Assembly
12.Remove the AC wiring harness assembly (J) from the shell
assembly (C).
Replacement
1. Route the AC wiring harness assembly (J) through the cord
retaining clips (K) inside the shell assembly (C).
2. Connect the corrugated hose (H) to the shell assembly (C).
