4.10 Access Panel
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 29
4
4.10 Access Panel
Tools required: 1/8" hex head wrench
Phillips head screwdriver
Access panel gauge (P/N 83 900 14)
Removal
1. On a unit with a Series 00 hood assembly (A), slide the blue slide
access panel latches (B), and open the access panel (C) (see figure
4-11 on page 4-29).
or
On a unit with a hood assembly (A) later than Series 00, rotate the
access panel pawl latch knobs (D), and open the access panel (C).

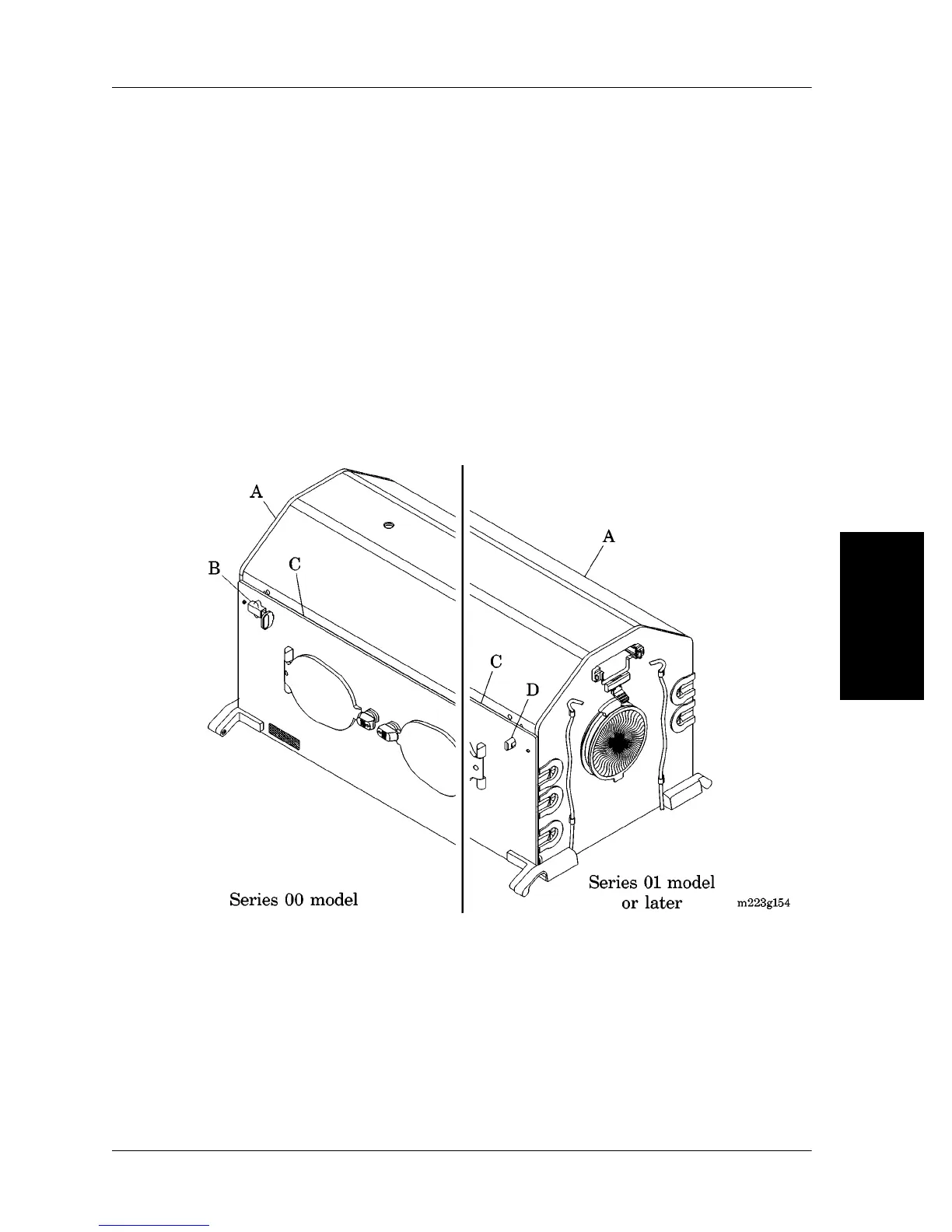

Figure 4-11. Hood Assembly
2. Pivot the access panel (C) to the full-open position so it hangs
straight down.
3. Remove the mattress, the mattress tray, and the x-ray tray from the
unit (refer to procedure 4.7 on page 4-20).
