7.2 Oxygen System
Chapter 7: Accessories
Page 7 - 8 Isolette® Infant Incubator (Model C2000) Service Manuall
7.2 Oxygen System
Tools required: Phillips head screwdriver
Pliers
Flashlight
Installation
1. Remove the sensor module assembly (A) from the unit (refer to
procedure 4.2 on page 4-6) (see figure 7-3 on page 7-8).

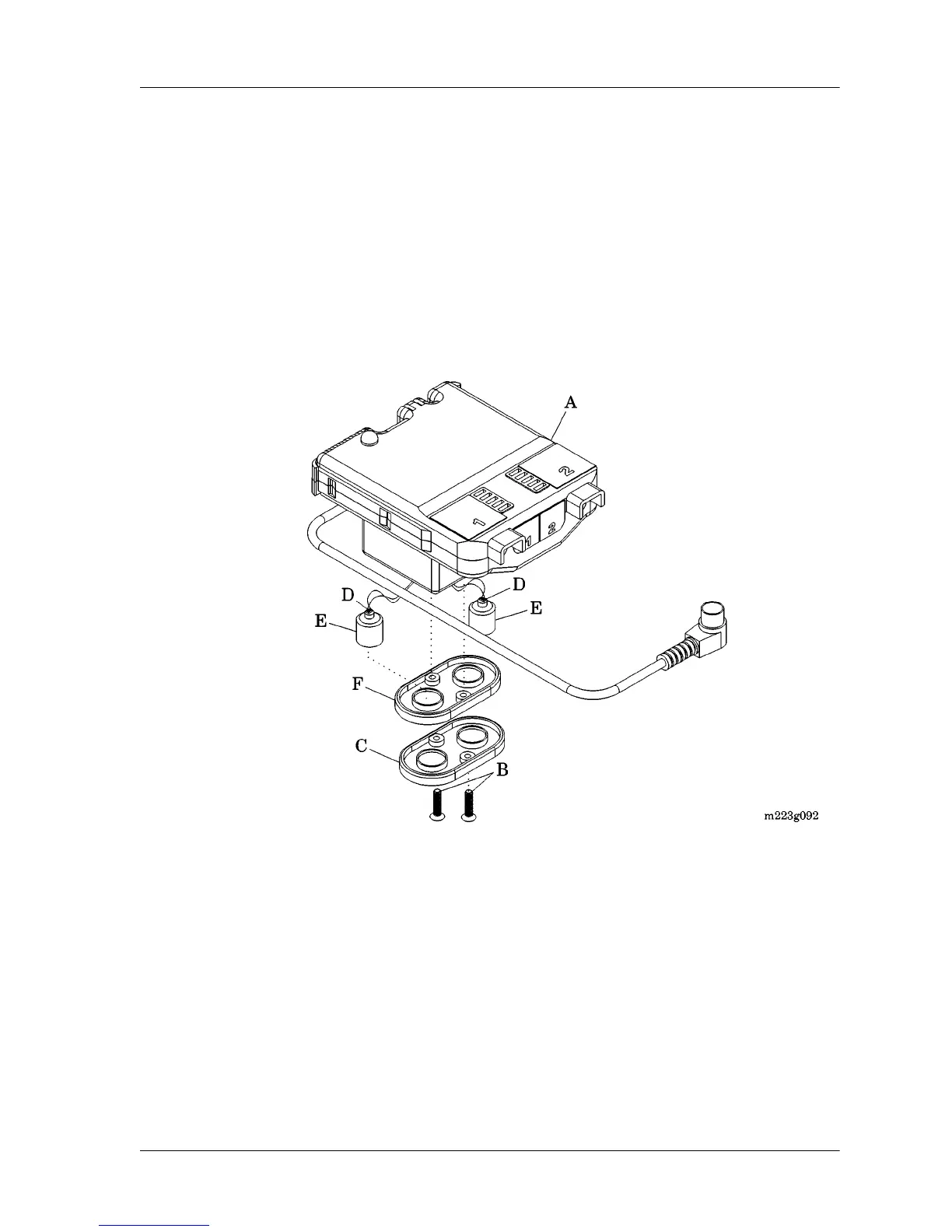

Figure 7-3. Oxygen Sensor Cells
2. Remove the two screws (B) that secure the oxygen sensor cover (C)
to the sensor module assembly (A). Retain the two screws (B).
3. Remove the oxygen sensor cover (C) from the sensor module
assembly (A).
4. Withdraw the sensor cell connectors (D) from the sensor module
assembly (A).
5. Screw the oxygen sensor cells (E) into the oxygen cell mounting
plate (F) provided.
